面向Kinetis K26、K65、和K66 MCU的Kinetis K65 MCU塔式系统模块

TWR-K65F180M 正常供应

滚动图片以放大

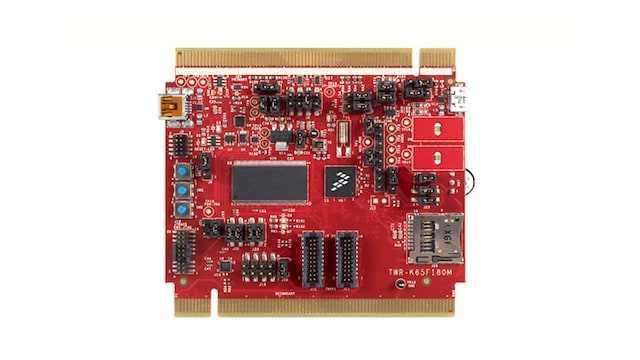

TTWR-K65F180M是面向Kinetis K26、K65和K66 180 MHz 32位Arm® Cortex®-M4 MCU的开发板。它采用Kinetis MK65FN2M0VMI18低功耗MCU，具有2MB闪存、256 KB SRAM、SDRAM控制器、HS USB连接和以太网MAC。

TWR-K65F180M可作为独立的调试工具，也可作为部件与塔式系统开发平台结合使用。

支持的器件

处理器和微控制器

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz，双高速和全速USB，2MB闪存微控制器(MCU)，基于ARM® Cortex®-M4内核

K6x以太网

  • K65_180: Kinetis® K65-180 MHz，双高速和全速USB，2MB闪存，防篡改微控制器(MCU)，基于Arm® Cortex®-M4 内核
  • K66_180: Kinetis® K66-180 MHz，双高速和全速USB，2MB闪存微控制器(MCU)，基于Arm® Cortex®-M4内核

特征

微控制器

    MK65FN2M0VMI18

  • 180 MHz
  • 2 MB闪存
  • 256 kB RAM
  • 169 MAPBGA

存储器

  • SD卡槽
  • 板载64MB SDRAM(32位宽)，连接到MCU的SDRAM控制器

数据连接

  • 两用USB接口，带微型AB USB连接器
  • 板载开放标准串行调试适配器(OpenSDA)
  • 通用塔式插槽(TWRPI)
  • 支持独立的高速USB设备和主机

电源管理

  • 纽扣电池座
  • 板电源可选择，3.3伏或1.8伏MCU运行

传感器

  • 3轴加速度传感器(MMA8451Q)
  • 两个电容式触摸板

支持

  • 通过Kinetis软件开发套件(SDK)提供软件支持和应用开发。这是一款全面的套件，包括稳定可靠的外设驱动程序、协议栈和中间件(取代示例代码包/示例)。加入Kinetis软件开发套件网络社区论坛，获得专家意见和支持。

组件

  • 电位计
  • 4个由用户控制的状态LED
  • 用于通用IO中断和MCU复位的两个机械按钮

购买选项

TWR-K65F180M-Image

点击展开

  • TWR-K65F180M
    正常供应

  • Tower System Development Board for Kinetis K26, K65 and K66 MCUs.

    • TWR-K65F180M塔式系统模块
    • 快速入门指南
    • 支持线缆
    • 用于VBAT电源的纽扣电池
  • 数量为 1
