Kinetis® K24 120 MHz MCU Tower® System Module

TWR-K24F120M 正常供应

滚动图片以放大

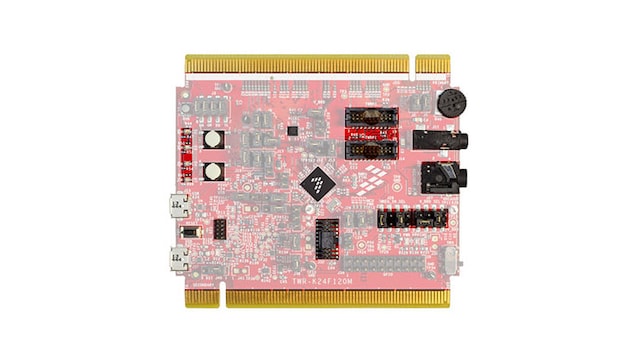

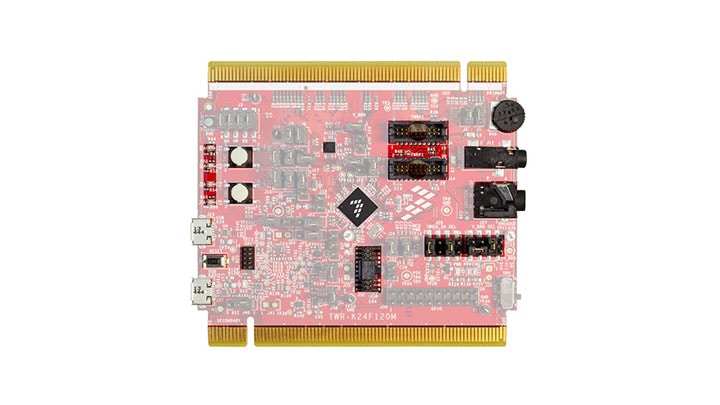

The TWR-K24F120M is a low-power Kinetis K24 120 MHz Arm® Cortex®-M4 based MCU platform with high RAM density for connectivity and sensor fusion applications.

  • 基于低功耗MK24FN256VDC12 MCU，配备DSP指令和浮点单元(FPU)，120 MHz，256 KB闪存，256 KB RAM和USB无晶振功能，采用121 MAPBGA薄型封装。
  • 既可用作独立的调试工具，也可作为模块化的塔式系统开发平台的一部分。

产品详情

支持的器件

处理器和微控制器

K2x / KS2x USB

  • K24_120: Kinetis® K24-120 MHz，全速USB，256KB SRAM微控制器(MCU)，基于ARM® Cortex®-M4内核

媒体和音频

音频转换器

  • SGTL5000: 超低功耗音频编解码器

特征

微控制器

    MK24FN256VDC12 MCU

  • 120 MHz
  • 256 KB闪存
  • 256 KB RAM
  • 低功耗
  • 121 MAPBGA thin-profile package

存储器

  • 16 Mbit SPI串行闪存

数据连接

    Dual-role USB interface with micro-AB USB connector General-purpose Tower plug-in (TWRPI) socket

电源管理

  • 锂离子电池充电电路(不包含电池)
  • 面向实时时钟(RTC)模块的独立电池供电电源

调试

  • Onboard debug circuit: K20DX128VFM5 OpenSDAv2 with virtual serial port

传感器

  • 3轴传感器，结合了加速度传感器和磁力计(FXOS8700CQ)

音频

  • Onboard NXP SGTL5000 audio codec

支持

  • 通过Kinetis软件开发套件(SDK)提供软件支持和应用开发。这是一款全面的套件，包括稳定可靠的外设驱动程序、协议栈和中间件(取代示例代码包/示例)。Get expert advice and support by joining the Kinetis Software Development Kit Community forum

用户组件

  • 4个用户可控制的LED + RGB LED
  • 两个用于通用IO中断的用户按钮开关
  • One (1) user push-button switch for MCU reset
  • 电位计

购买选项

TWR-K24F120M-Image

点击展开

  • TWR-K24F120M
    正常供应

  • Tower System Development Board for Kinetis K24 (256 KB Flash) MCUs.

    • TWR-K24F120M塔式系统模块
    • 两根USB线缆
    • 快速入门指南
  • $171.35 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
