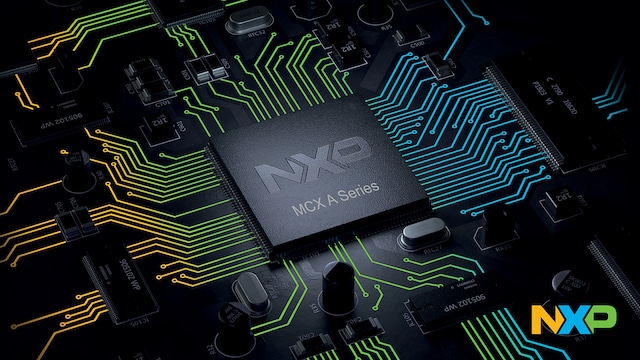

MCX A18: Essential Mainstream Arm® Cortex® M33 MCU with 240MHz and Motor Control Peripherals
The MCX A18 family of microcontrollers is designed for high-performance motor control applications with advanced integration features. The MCX A185 and MCX A186 devices operate at speeds up to 240 MHz, offering up to 1 MB of Flash and 256 KB of RAM.
The MCX A185 and MCX A186 microcontrollers include peripherals optimized for motor control. MCX A18 MCUs integrate two FlexPWM modules with four submodules, AOI support and up to two ADCs. A rich set of serial interfaces and SmartDMA enable efficient, high‑performance data handling. The MCX A18 devices are fully supported by the MCUXpresso Developer Experience, which provides a comprehensive suite of tools and resources to simplify development and accelerate time-to-market.
产品详情
Features
Core Platform
- Arm® Cortex®-M33 240MHz
Processing Accelerators
- SmartDMA, co-processor for applications such as parallel camera interface and keypad scanning
Memory
- Single-bank Flash: Up to 1024 KB Flash with ECC (support one bit correction and two bits detection)
- Cache Engine with 8 KB RAM
- Up to 256 KB RAM of which 8 KB is shared with cache, configurable as up to 8 KB RAM with ECC (support one bit correction and two bits detection)
- All RAM can be retained down to Deep Power Down mode
- ROM
Peripherals
-
Advanced Motor Control
- 2x FlexPWM each with 4 submodules, providing 16 complementary outputs of PWM (no Nanoedge module)
- 2x Quadrature Encoder/Decoder (eQDC)
- 2x AOI (AND/OR/Invert) module support up to 4 output triggers
-
Analog
-
2x 16-bit ADC
- 3.2 Msps in 16-bit mode, and 4 Msps in 12-bit mode
- Up to 43 ADC Input channels total (depending on the package)
- Integrated temperature sensor
-
1 x 12-bit DAC
- Up to 1 Msps
-
2 x High-speed Comparators with 8 input pins and 8-bit DAC as internal reference
- 1x LPCMP is functional down to Deep Power Down mode
- 1x OPAMP without PGA
-
2x 16-bit ADC
-
Timers
- 5 x 32-bit standard general-purpose asynchronous timers/counters, which support up to four capture inputs and four compare outputs, PWM mode, and external count input. Specific timer events can be selected to generate DMA requests.
- Low power timer
- Frequency measurement timer
- Windowed watchdog timer
- Wake timer
- Micro-tick timer (UTICK)
- OS event timer
- RTC timer without external 32KHz input
-
Communication Interfaces for Connectivity
- 2x LPSPI, 4x LPI2C, 6x LPUART
- 1x I3C
- USB Full-speed (Device/Host) with on-chip FS PHY
- 2x FlexCAN with FD
- FlexIO
-
HMI
- 4x44 segment LCD
Security
- 128-bit Universal Unique Identifier (UUID) per device in accordance with IETF's RFC4122 version5 specification
- Device lifecycle management
- Flash read/write/execute permission protect by MBC and lockable
- Implicit-protected Flash Region (IFR)
-
Security Monitoring
- Code Watchdog for code flow integrity checking
- Glitch attack resistant keyed access (Glikey) to security sensitive registers
- 6x Passive anti tamper detect
Packaging
- WFBGA169 7x7mm, LQFP144 20x20mm, LQFP100 14x14mm, LQFP64 10x10mm
MCUXpresso Developer Experience
-
MCUXpresso ecosystem support
- Selection of IDE choices
- Pin, clock, peripheral, security and memory config tools
- Security programming and provisioning tools
- Software development kit (SDK)
- Zephyr RTOS support
