Kinetis K60 120 MHz塔式系统模块

TWR-K60F120M 正常供应

滚动图片以放大

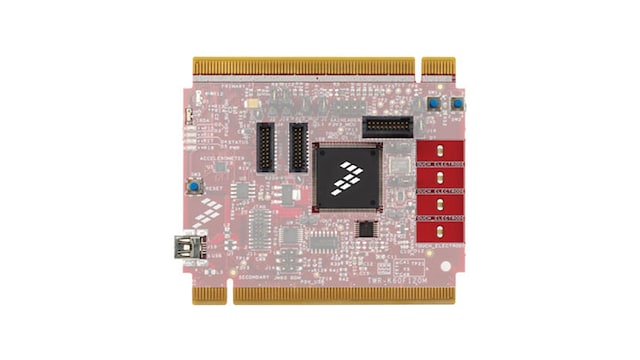

The NXP® TWR-K60F120M is a development board for the Kinetis® K10, K20 and K60 120/150MHz 32-bit Arm® Cortex®-M4 MCUs. 它采用Kinetis MK60FN1M0VMD12低功耗MCU，带有USB 2.0 HS OTG控制器、USB 2.0 FS OTG控制器和10/100 Mbps以太网MAC。

TWR-K60F120M可作为独立的调试工具运行，也可作为部件与塔式系统开发平台结合使用。

支持的器件

处理器和微控制器

K1x主流产品

  • K10_120: Kinetis® K10-120 MHz，混合信号集成微控制器(MCU)，基于ARM® Cortex®-M4内核

K2x / KS2x USB

  • K20_120: Kinetis® K20-120 MHz，全速USB，混合信号集成微控制器 (MCU)，基于Arm® Cortex®-M4内核

K6x以太网

  • K60_120: Kinetis®K60 / 61-120-150 MHz，基于Arm® Cortex®-M4内核的混合信号集成和防篡改微控制器

特征

微控制器

  • MK60FN1M0VLQ12：采用144 LQFP封装的K60FN1M，运行频率为120 MHz
  • S08JM60 based open source BDM (OSBDM) circuit

存储器

  • NAND闪存
  • SD卡插槽

数据连接

  • Socket for Capacitive Touch Pad expansion board (Touch TWRPI)
  • 塔式系统插件插槽(TWRPI，例如传感器板)

传感器

  • 4 Capacitive Touch Pads and 2 mechanical push button
  • 3轴数字加速度传感器(MMA8451Q)

组件

  • 4 user-controlled status LEDs
  • 电位计

购买选项

TWR-K60F120M-Image

点击展开

  • TWR-K60F120M
    正常供应

  • Tower System Development Board for Kinetis K10, K20, K60 and K61 (120-150 MHz) MCUs.

  • 部件编号TWR-K60F120M包含：
    • 带有MK60FN1M0VLQ12 32位MCU的TWR-K60F120M电路板
    • 包含软件安装程序和文档的DVD
    • 快速入门指南文档
  • $148.35 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
TWR-K60F120M-KIT-Image

点击展开

  • TWR-K60F120M-KIT
    正常供应

  • K60F120M Tower Kit.

  • Part Number TWR-K60F120M-KIT contains:
  • $194.35 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
