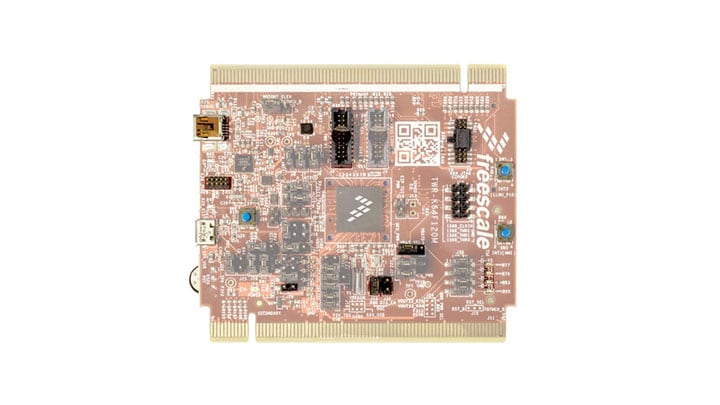

Kinetis® K64 MCU Tower System Module

TWR-K64F120M 正常供应

滚动图片以放大

The Tower-K64F120M is a development board for the Kinetis® K24, K63 and K64 120 MHz 32-bit Arm® Cortex®-M4 MCUs.

  • TWR-K64F120M采用Kinetis MK64FN1M0VMD12低功耗MCU，具有1MB闪存、256 KB SRAM、USB连接和以太网MAC。
  • 它可作为独立的调试工具运行，也可作为部件与塔式系统开发平台结合使用。

支持的器件

处理器和微控制器

K6x以太网

  • K64_120: Kinetis® K64-120 MHz, 256KB SRAM微控制器(MCU)基于Arm® Cortex®-M4内核
  • K63_120: Kinetis® K63-120 MHz, 256KB SRAM, 防篡改微控制器(MCU)，基于Arm® Cortex®-M4内核

K2x / KS2x USB

  • K24_120: Kinetis® K24-120 MHz，全速USB，256KB SRAM微控制器(MCU)，基于ARM® Cortex®-M4内核

传感器

运动传感器

  • MMA8451Q: ±2g/±4g/±8g，低重力加速度，14位数字加速度传感器

特征

微控制器

    MK64FN1M0VMD12

  • 120 MHz
  • 1 MB Flash
  • 256 KB RAM
  • FPU
  • USB
  • Encryption
  • 低功耗
  • 144 MAPBGA

数据连接

  • 两用USB接口，带微型AB USB连接器
  • 通用塔式插槽(TWRPI)
  • SD卡槽

调试

  • Onboard open-standard serial and debug adapter (OpenSDA)

电源管理

  • 纽扣电池座
  • 面向实时时钟和篡改检测模块的独立电池供电电源

传感器

  • 3轴加速度传感器(MMA8451Q)

工具和操作系统支持

  • 软件支持和应用开发由Kinetis软件开发套件(SDK)提供。这是一款全面的套件，包括稳定可靠的外设驱动程序、协议栈和中间件(替代示例代码包/示例)。加入Kinetis软件开发套件网络社区论坛，获得专家意见和支持。

用户组件

  • 用于通用IO中断和MCU复位的按钮
  • 4个由用户控制的状态LED
  • 电位计

购买选项

TWR-K64F120M-Image

点击展开

  • TWR-K64F120M
    正常供应

  • Tower System Development Board for Kinetis K24, K63 and K64 (120 MHz, 512KB-1MB Flash) MCUs.

    • TWR-K64F120M Tower® System module
    • 快速入门指南
    • 支持线缆
    • 电池
  • 数量为 1
