Kinetis K20 50 MHz塔式系统模块

TWR-K20D50M 正常供应

滚动图片以放大

The TWR-K20D50M module is a development board for the Kinetis® K10 and K20 50 MHz 32-bit Arm® Cortex®-M4 MCUs and provides rapid prototyping for applications requiring high feature integration and low power consumption.

The TWR-K20D50M operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

支持的器件

处理器和微控制器

K1x主流产品

  • K10_50: Kinetis K10-50 MHz，混合信号集成微控制器(MCU)，基于ARM® Cortex®-M4内核

K2x / KS2x USB

  • K20_50: Kinetis® K20-50 MHz, 全速USB, 混合信号集成微控制器，基于Arm® Cortex®-M4内核

特征

数据连接

  • Tower connectivity for access to UART, SPI, I²C
  • Microphone, buzzer, and SAI (I²S) connector
  • 支持USB 2.0 On-The-Go(全速)连接
  • Tower® Plug-In (TWRPI) socket for sensor and touch boards expansion (keypads, rotary dials, sliders)

传感器

  • MMA8451Q 3轴加速度传感器
  • 2 x capacitive touchpads
  • 采用64 LQFP的K20DX128，K20DX128VLH5
  • 集成的开源JTAG
  • Plus: Potentiometer, four LEDs, pushbuttons, infrared port, and battery holder

购买选项

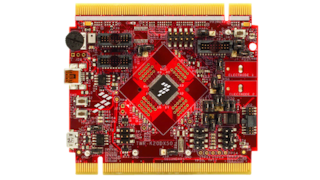

TWR-K20D50M-Image

点击展开

  • TWR-K20D50M
    正常供应

  • Tower System Development Board for Kinetis K10 and K20 (50 MHz) MCUs.

    • TWR-K20D50M – 具有K20DX128VLH5 MCU的32位MCU模块(64 LQFP)
    • 快速入门指南文档
    • 两个USB线缆(Micro，Mini)
    • 电池
  • 数量为 1
从分销商处购买
