MPC5744P 3相PMSM开发套件

MTRCKTSPS5744P
正常供应

滚动图片以放大

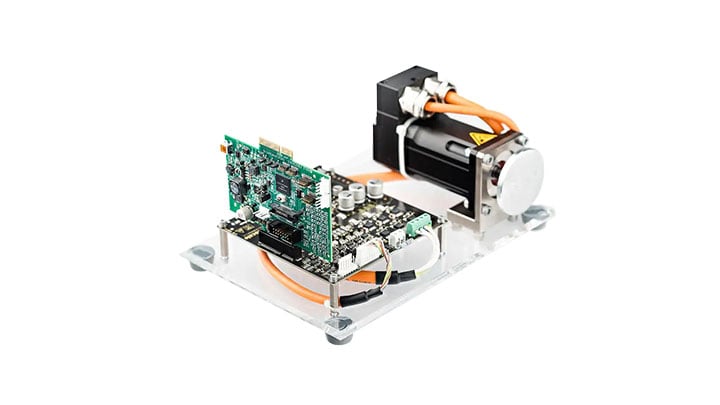

恩智浦MTRCKTSPS5744P电机控制开发套件适用于需要一个PMSM电机的应用，如动力转向和电动动力总成。

  • 在设计的早期阶段便可实现快速原型设计和电机控制应用评估。
  • 包括一个基于恩智浦32位MPC5744P MCU的控制器板和3相低压功率模块电路板
  • 应用软件提供PMSM电机控制应用的完整参考实施，并能够利用汽车计算和电机控制库套件

支持的器件

接口

汽车LIN解决方案

  • MC33905: 带高速CAN和LIN的第二代SBC

电源管理

预驱动器

  • MC33937: 3相场效应晶体管预驱动器

处理器和微控制器

超高可靠性的MPC57xx MCU

  • MPC574xP: 超可靠的MPC574xP MCU，适用于汽车和工业安全应用

特性

功能

  • DC总线过压、过流、欠压和失速故障检测

接头天线

  • JTAG和NEXUS调试连接器

电源

  • 支持带解析器位置传感器的低压PMSM电机

软件支持

  • 基于ANSI-C的示例软件，在S32 Design Studio for Power Architecture®中创建
  • 支持FreeMASTER可视化/配置
  • 软件包的MCAT工具1.1部分

购买选项

MTRCKTSPS5744P-Image

点击展开

  • MTRCKTSPS5744P
    正常供应

  • MPC5744P Development Kit for 3-phase PMSM.

  • 套件包含：

    • MPC5744P控制器板
    • 基于SMARTMOS预驱动器的MC33937A功率模块
    • 3相PMSM低压电机
    • AC/DC 24 V通用电源
    • USB线缆
  • $1999.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 1
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
