S12ZVM评估板

S12ZVMEVB 正常供应

滚动图片以放大

S12ZVMEVB是一款面向S12 MagniV®S12ZVM 16位MCU的开发板，适用于两相DC和3相BLDC或PMSM电机控制应用。

S12ZVM集MCU与S12Z内核、5 V稳压器、LIN物理层和能够控制多达6个功率MOSFET的栅极驱动器于一身，适用于各类汽车应用，例如HVAC风机、发动机散热风扇、雨刷系统、燃油泵或水泵。

该EVB共有两个版本：

  • S12ZVML12EVB采用S12ZVML128，集成LIN收发器
  • S12ZVMC12EVB采用S12ZVMC128，集成用于外部CAN收发器的稳压器控制器

支持的器件

处理器和微控制器

S12 MagniV混合信号MCU

  • S12ZVM: S12ZVM混合信号MCU，适用于汽车和工业电机控制应用

特征

  • 64 LQFP-EP中的S12ZVML128 (LIN版本)或S12ZVMC128 (CAN版本)

连接

  • 用于两相(DC)或3相(BLDC或PMSM)电机的连接器接口
  • USB到SCI接口
  • LIN连接器
  • 外部CAN收发器
  • 霍尔传感器接口和连接器
  • 分解器接口和连接器

能源管理

  • 感应多达3个相位和共用直流母线电流的分流电阻

调试

  • 内置OSBDM调试器

组件

  • 1个通用电位计、两个LED、两个按钮和1个开关

购买选项

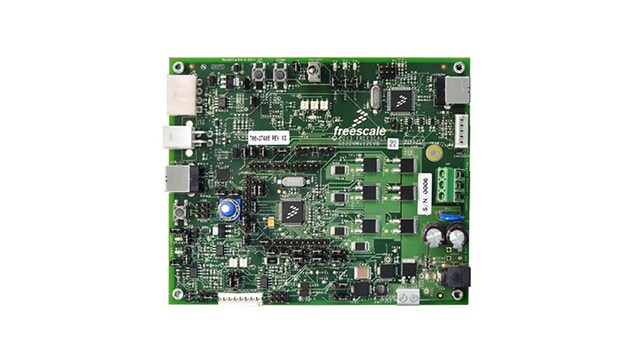

S12ZVMC12EVBCAN-Image

点击展开

  • S12ZVMC12EVBCAN
    正常供应

  • S12ZVM Development Board (for external CAN) for 2-phase DC and 3-phase BLDC.

    • S12ZVM评估板
    • 快速入门指南
  • $479.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买

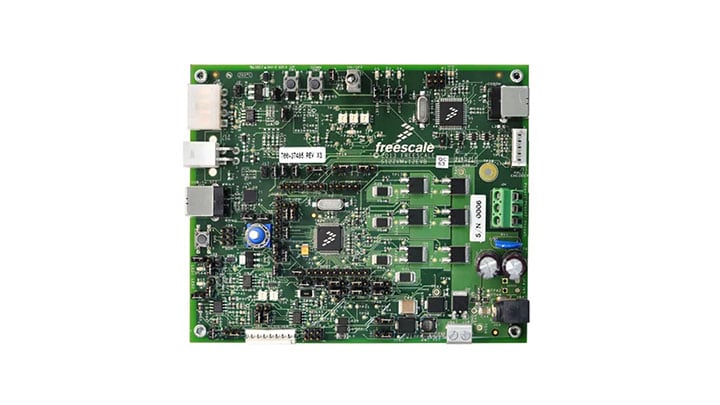

S12ZVML12EVBLIN-Image

点击展开

  • S12ZVML12EVBLIN
    正常供应

  • S12ZVM Development Board (integrating LIN) for 2-phase DC and 3-phase BLDC.

  • $369.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
