图形LCD塔式系统模块

TWR-LCD 正常供应

滚动图片以放大

恩智浦TWR图形LCD模块使您能够在塔式系统设计上轻松添加LCD接口。

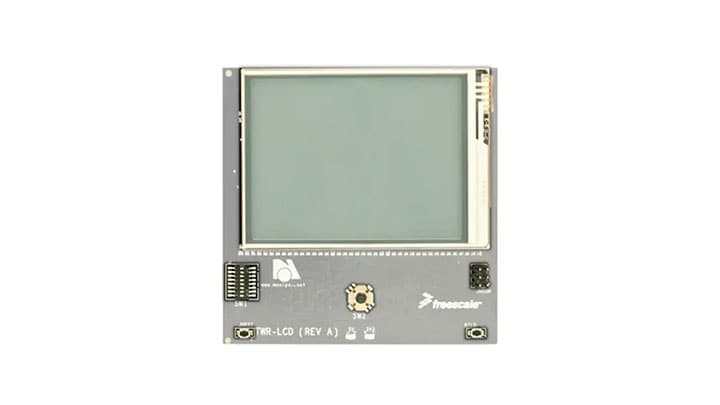

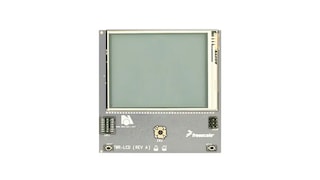

TWR图形LCD模块具有一个3.2" QVGA TFT LCD显示器，通过侧扩展端口连接器附到塔式系统侧板模块的外边沿

该外设模块可与塔式系统中的其他MCU及外设模块结合使用。

产品详情

特征

数据连接

  • Preassembled with the included secondary TWR-ELEV

显示器

  • 4.3" TFT LCD面板
  • WQVGA分辨率(480 x 272)
  • 24位色深(真彩)
  • 4线电阻式触摸覆盖
  • CRTouch Ready Play®
  • X/Y电阻式触摸检测
  • 电容式触摸检测
  • 连接塔式系统MCU的I2C接口

支持

  • PEG®和eGUI支持驱动器
  • 可兼容备用塔式侧板上定义的RGB接口

购买选项

TWR-LCD-Image

点击展开

  • TWR-LCD
    正常供应

  • Tower System, Peripheral Module, Graphical LCD.

    • TWR-LCD模块
    • 所需的线缆
    • 包含演示项目、软件、培训资料和附件的DVD
    • 快速入门指南文档
  • 数量为 1
从分销商处购买
