通用8位S08/RS08 MCU塔式系统模块

TWR-S08UNIV
正常供应

点击图片以展开

The TWR-S08UNIV provides a Tower® System-based development solution for NXP® S08 and RS08 devices, including the RS08KA, the S08AC, QD, QE, QG and SH families.

塔式系统模块配上可附加的各种子卡，可轻松地在不同的S08和RS08 MCU之间进行切换，无需一次又一次地购买同一个开发板。它还使以前只有传统演示板支持的一组MCU也可以获得塔式系统生态体系的支持。

产品详情

特征

数据连接

    可插入到主模块(TWR-S08UNIV)的可热插拔MCU子卡。最初的产品：

  • TWR-RS08DC-KA8
  • TWR-S08DC-AC60
  • TWR-S08DC-QD4
  • TWR-S08DC-QE64
  • TWR-S08DC-QG8
  • TWR-S08DC-SH8

电源管理

  • Each 5 V MCU daughter card with option to select between 3 V and 5 V setting, which will control the system voltage on the main Tower System module

工具和操作系统支持

    Software included to enable engineers to bring up sample CodeWarrior® projects that can contain:

  • Sample code for the TPM, analog-to-digital, internal clock set-up, etc
  • Sample code for different serial protocols, IIC, SPI, UART, and sensor TWRPI initialization
  • Tower® System module (TWR-S08UNIV) is usable in either standalone mode or connected to the Tower System, but is only functional in combination with one of the daughter cards mentioned below
  • Each daughter card has a unique ID associated with the MCU on the daughter card

购买选项

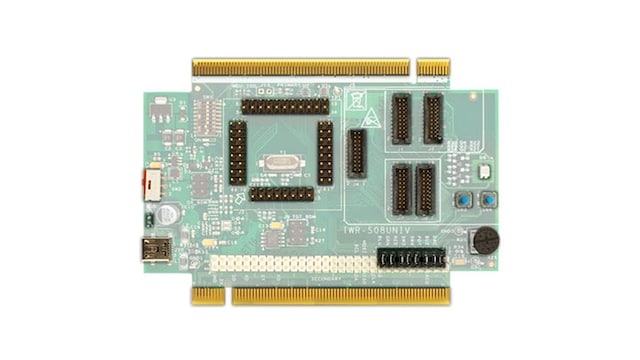

TWR-S08UNIV-Image

点击展开

TWR-S08UNIV
正常供应

Tower System, 8-bit MCU Module, S08, RS08, Universal Module with 6 Swappable Daughter Cards.
