单芯片16位/32位微控制器；高达512 kB的闪存，带ISP/IAP、USB 2.0全速设备、10位ADC和DAC

LPC2148FBD64 正常供应

LPC2141/42/44/46/48微控制器基于16位/32位Arm7TDMI-S™ CPU，支持实时仿真和嵌入式跟踪，将该微控制器与32 kB至512 kB的嵌入式高速Flash存储器相结合。128位宽存储器接口和独特的加速器架构能以最大时钟速率执行32位代码。对于代码大小攸关的应用程序，备用16位Thumb模式可用最小的性能损失换取超过30%的代码压缩。

由于尺寸小，功耗低，对于小型化是一项关键要求的应用(如门禁控制和销售点)，LPC2141/42/44/46/48是理想之选。这些器件具有各种串行通信接口(从USB 2.0全速设备、多个UART、SPI、SSP到I²C总线)和8 kB至40 KB的片上SRAM，非常适合通信网关和协议转换器、软调制解调器、语言识别和低端成像，可提供大缓冲容量和高处理能力两大优势。各种32位定时器、单/双10位8通道ADC、10位DAC、PWM通道、45个快速通用IO线路，拥有多达9个边沿或电平敏感型外部中断引脚，以上特性使得这些微控制器适合工业控制和医疗系统。

查看产品图片

产品详情

框图

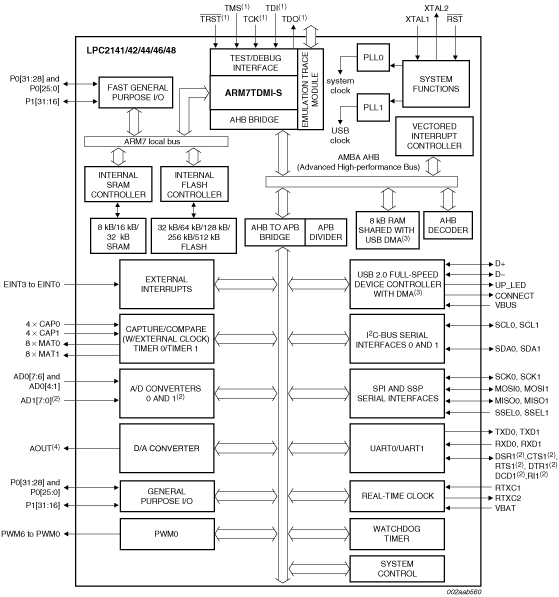

Block diagram: LPC2141FBD64, LPC2142FBD64, LPC2144FBD64, LPC2146FBD64, LPC2148FBD64

获取框图PDF

特征

2.1 主要特性
