单芯片16位/32位微控制器；带ISP/IAP的8 kB/16 kB/32 kB flash，快速端口和10位ADC

LPC2102FBD48
不推荐用于新设计

LPC2101/02/03微控制器基于16位/32位Arm7TDMI-S™CPU，其实时仿真功能将该微控制器与8 kB、16 kB或32 kB嵌入式高速闪存相结合。128位宽的存储器接口和独特的加速器架构能以最大时钟速率执行32位代码。对于中断服务程序和DSP算法中的关键性能，这样可以在Thumb模式的基础上增加高达30%的性能。对代码大小要求严格的应用程序，可选用的16位Thumb模式以最小的性能损失换取超过30%的代码压缩。

由于尺寸小，功耗低，对于小型化是一项关键要求的应用，LPC2101/02/03是理想之选。这些器件结合了串行通信接口（从多个UART、SPI到SSP和两个I²C总线）和2 kB/4 kB/8 kB片内SRAM，非常适合于通信网关和协议转换器。优异的性能还使这些器件适合用作协处理器。多个32位和16位定时器、一个改进的10位ADC、通过所有定时器上的输出匹配的PWM功能、32个快速GPIO线，它们拥有多达9个边沿或电平触发的外部中断引脚，以上特性使得这些微控制器尤其适用于工业控制和医疗系统领域。

查看产品图片

产品详情

框图

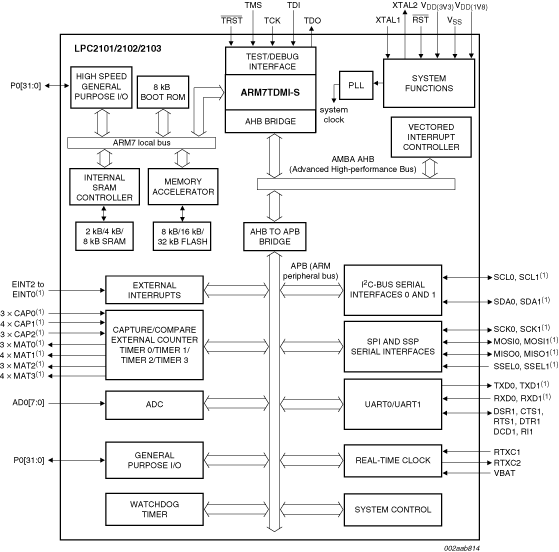

Block diagram: LPC2101FBD48, LPC2102FBD48, LPC2102FHN48, LPC2103FBD48, LPC2103FHN48

获取框图PDF

特征

增强功能

标有“修订版A”及更高版本的LPC2101/02/03器件提供增强功能：

  • 深度掉电模式，具有保持SRAM存储器和/或RTC的选项。
  • 实施了三个级别的flash代码读取保护(CRP)。

主要特性

  • 16位/32位Arm7TDMI-S™ 微控制器，采用超小型LQFP48和HVQFN48封装。
  • 2 kB/4 kB/8 kB片上静态RAM和8 kB/16 kB/32 kB片上闪存可编程存储器。128位宽接口/加速器实现高速的70 MHz操作。
  • 通过片上启动引导程序软件执行ISP/IAP。100 ms内执行单闪存扇区或全芯片擦除，1 ms内编程256字节。
  • EmbeddedICE-RT通过片上RealMonitor软件提供即时调试。
  • 10位ADC提供八个模拟输入，转换时间低至每通道2.44 us，专用结果寄存器可最大程度减少中断开销。
  • 两个32位定时器/外部事件计数器，组合了七个捕获通道和七个比较通道。
  • 两个16位定时器/外部事件计数器，组合了三个捕获通道和七个比较通道。
  • 低功耗实时时钟(RTC)，带独立电源和专用32 kHz时钟输入。
  • 多个串行接口，包括两个UART (16C550)、两个快速I²C总线(400 kbit/s)、SPI和SSP，带缓冲和可变数据长度功能。
  • 矢量中断控制器带可配置优先级和矢量地址。
  • 多达32个5 V耐压的快速通用I/O引脚。
  • 提供多达13个边沿或电平触发的外部中断引脚。
  • 可编程的片上PLL提供最高70 MHz CPU时钟，可能的输入频率为10 MHz至25 MHz，建立时间为100 us。
  • 片上集成式振荡器在有外部晶体时的操作范围为1 MHz至25 MHz。
  • 省电模式包括空闲模式、RTC有效的掉电模式和掉电模式。
  • 外设功能的单独使能/禁用以及外设时钟调整可额外进行功率优化。
  • 处理器通过外部中断或RTC从掉电和深度掉电（修订版A及更高版本）模式唤醒。
