无闪存16位/32位微控制器；以太网、CAN、ISP/IAP、USB 2.0设备/主机/OTG、外部存储器接口

LPC2420FET208 建议不要在新设计中使用该软件

恩智浦微控制器设计的LPC2420/2460微控制器，采用16位/32位Arm7TDMI-S™ CPU内核，拥有实时调试接口，同时包含JTAG和嵌入式跟踪。LPC2420/2460不带闪存。LPC2420/2460可执行32位Arm®和16位Thumb指令。支持两种指令集意味着工程师可以选择自己的应用程序在子程序的水平上优化性能还是代码大小。当内核在Thumb状态下执行指令时，能够以很小的性能损失换取超过30%的代码压缩，而在Arm状态下执行指令时，则最大限度地提高内核性能。

LPC2420/2460微控制器是多用途通信应用的理想选择。它集成了1个10/100M以太网媒体访问控制器(MAC) (仅限LPC2460)、1个带4 KB端点RAM的USB全速设备/主机/OTG控制器、4个UART、2个控制器局域网络(CAN)通道(仅限LPC2460)、1个 SPI接口、2个同步串行端口(SSP)、3个I²C接口，以及1个I²S接口。这种串行通信接口的集合支持以下功能部件；一个片上4 MHz内部精密振荡器，总大小82/98 KB的RAM，其中64 KB SRAM用于本地，16 KB SRAM用于以太网(仅限LPC2460)，16 KB SRAM用于通用DMA，2 kB SRAM由电池供电，以及一个外部存储器控制器(EMC)。这些特性使得该器件最适用于通信网关和协议转换器。作为很多串行通信控制器、通用定时功能和存储功能的补充，它还拥有各种32位定时器、一个改进的10位ADC和10位DAC、2个PWM单元、4个外部中断引脚，以及多达160个通用IO线路。LPC2420/2460将64个GPIO引脚与基于硬件的矢量中断控制器(VIC)连接，这意味着外部输入可以产生边沿触发的中断。所有这些特性使得LPC2420/2460特别适合工业控制和医疗系统应用。

查看产品图片

产品详情

框图

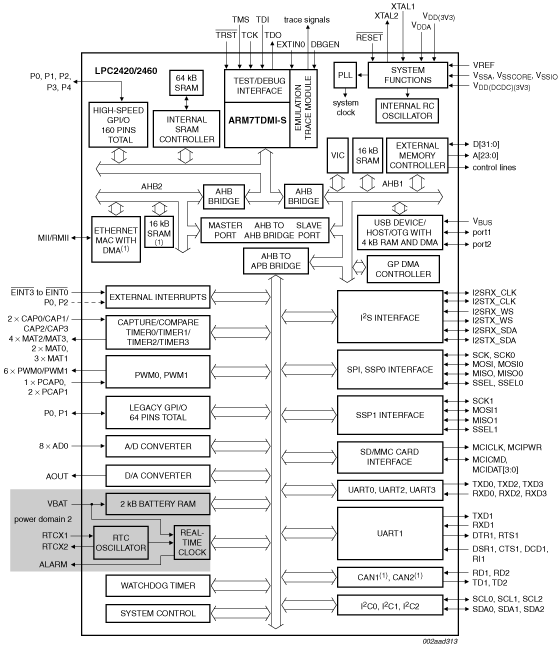

Block diagram: LPC2420FBD208, LPC2460FBD208, LPC2460FET208

获取框图PDF

特征

  • Arm7TDMI-S™处理器，运行频率高达72 MHz。
  • 82/98 kB片上SRAM包括：
    • Arm局部总线上的64 kB SRAM，用于高性能CPU访问。
    • 用于以太网接口的16 KB SRAM。也可作为通用SRAM。(仅限LPC2460)
    • 用于通用DMA的16 KB SRAM也可通过USB访问。
    • 2 kB SRAM数据存储由实时时钟(RTC)电源域供电。
  • 双先进高性能总线(AHB)系统允许以太网DMA、USB DMA同时无冲突工作(仅限LPC2460)。
  • EMC支持异步静态存储器设备，如RAM、ROM和闪存，以及动态存储，如单数据速率SDRAM。
  • 先进矢量中断控制器(VIC)，支持最多32个矢量中断。
  • AHB上的通用DMA(GPDMA)控制器，可用于SSP、I²S、SD/MMC接口以及内存到内存的传输。
  • 串行接口：
    • 以太网MAC，带MII/RMII接口和相关DMA控制器(仅限LPC2460)。这些功能位于一个独立的AHB中。
    • USB 2.0全速双端口设备/主机/OTG控制器，带片上PHY和相关DMA控制器。
    • 带小数波特率发生器的4个UART，1个带调制解调器控制I/O，1个带IrDA支持，全部都带FIFO。
    • 双通道CAN控制器(仅限LPC2460)。
    • SPI控制器。
    • 2个SSP控制器，带FIFO和多协议功能。一个是SPI端口的备用端口，共享其中断。SSP可用于GPDMA控制器。
    • 3个I²C总线接口(一个带开漏输出，两个带标准端口引脚)。
    • I²S (音频芯片互联)接口，用于数字音频输入或输出。可用于GPDMA。
  • 其它外设：
    • SD/MMC存储卡接口。
    • 160个通用I/O引脚，带可配置的上拉/下拉电阻。
    • 在8引脚中输入多路复用的10位ADC。
    • 10位DAC。
    • 4个通用定时器/计数器，带8个捕获输入和10个匹配输出。每个定时器块都有一个外部计数输入。
    • 2个PWM/定时器模块，支持三相电机控制每个PWM都有一个外部计数输入。
    • 具有独立电源域的RTC。时钟源可以是RTC振荡器或APB时钟。
    • 2 kB SRAM由RTC电源引脚供电，在芯片其它部分断电时仍允许数据存储。
    • 看门狗定时器(WDT)。WDT可用内部RC振荡器、RTC振荡器或APB时钟作为时钟源。
  • 与现有工具兼容的标准Arm测试/调试接口。
  • 仿真跟踪模块支持实时跟踪。
  • 3.3 V单电源(3.0 V至3.6 V)。
  • 4种低功耗模式：空闲模式、睡眠模式、掉电模式和深度掉电模式。
  • 四个可配置为边沿/电平敏感型的外部中断输入。所有端口0和端口2上的GPIO引脚均可用作边沿敏感型中断源。
  • 处理器通过任何可在掉电模式中运行的中断由掉电模式唤醒(包括外部中断，RTC中断，USB活动，端口0/2引脚中断，以太网唤醒中断(仅限LPC2460)，CAN总线活动(仅限LPC2460)等)。
  • 两个独立的电源域，允许根据所需要功能进行功耗微调。
  • 为进一步节电，每个外设都有其自己的时钟分频器。这些分频器帮助减少20%到30%的动态功耗。
  • 采用中断和强制复位的独立阀值进行掉电检测。
  • 片上上电复位。
  • 工作范围从1 MHz到25 MHz的片内晶体振荡器。
  • 4 MHz内部RC振荡器，将精度校准到1 %，可选择性地用作系统时钟。用作CPU时钟时，不允许CAN和USB运行。
  • 一个片上PLL允许CPU以最大CPU速率运行， 而不需要一个高频率晶振。可从主振荡器、内部RC振荡器或RTC振荡器运行。
  • 用于简化电路板测试的边界扫描。
  • 通用引脚功能选择为使用片内外设功能提供了更多可能性。

目标应用

  • 工业控制
  • 医疗系统
  • 协议转换器
  • 通信
