16/32位Arm®微控制器；不带闪存，具备10位ADC和外部存储器接口

LPC2210FBD144 使用寿命终止

LPC2210/2220微控制器，基于16/32位Arm7TDMI-S™ CPU，支持实时仿真和嵌入式跟踪。对于代码大小攸关的应用程序，备用16位Thumb模式可用最小的性能损失换取超过30%的代码压缩。

144引脚封装、低功耗、多个32位定时器、8通道10位ADC、PWM通道以及多达9个外部中断引脚，使得这些微控制器特别适用于工业控制、医疗系统、门禁控制以及POS机类的应用。根据总线配置不同，LPC2210/2220可以提供最多76个GPIO。凭借丰富的串行通信接口，它也非常适用于通信网关、协议转换器、嵌入式软调制解调器以及其它许多通用应用。

备注：在整个数据手册中，无论器件是否以/01为后缀，LPC2210/2220都适用。只有在必需的情况下，才会使用/01后缀来区分LPC2210器件。

查看产品图片

产品详情

框图

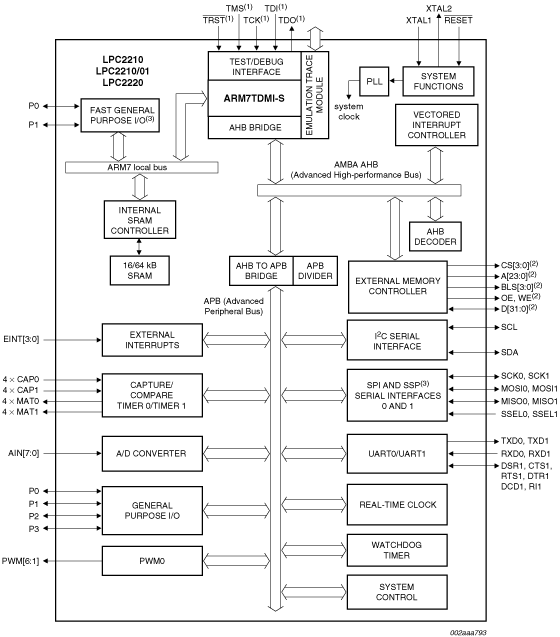

Block diagram: LPC2210FBD144, LPC2220FBD144, LPC2220FET144

获取框图PDF

特征

  • 16/32位Arm7TDMI-S™微控制器，采用LQFP144和TFBGA144封装。
  • 16/64 kB片上静态RAM(LPC2210/2220)。
  • 使用UART0的串行引导提供在系统下载和编辑功能。
  • EmbeddedICE-RT和嵌入式跟踪接口通过片内RealMonitor软件提供即时调试，并对指令的执行进行高速跟踪。
  • 八通道10位ADC，转换时间低至2.44 us。
    • 仅适用于LPC2210/01和LPC2220：ADC的专用结果寄存器可减少中断开销。配置用于数字I/O功能时，ADC焊盘具有5 V容限。
  • 两个带4个捕获通道和4个比较通道的32位定时器(LPC2220和LPC2210/01还拥有外部事件计数器)、PWM单元(6个输出)、实时时钟(RTC)和看门狗。
  • 多个串行接口，包括两个UART (16C550)、快速I²C总线(400 kbit/s)和两个SPI。
    • 仅限LPC2210/01和LPC2220：一个同步串行端口(SSP)，带数据缓冲和可变长度传输，可用来替代一个SPI。
    • 仅限LPC2210/01和LPC2220：UART0/1包括小数波特率生成器、在硬件中完全实施的自动波特率功能以及信号交换流控制。
  • 矢量中断控制器(VIC)带可配置优先级和矢量地址。
  • 可配置的外部存储器接口，最多4个块，每块最高拥有16 MB和8/16/32位数据宽度。
  • 可拥有多达76个通用引脚(5 V容限)。提供多达9个边沿/电平敏感型外部中断引脚。
    • 仅限LPC2210/01和LPC2220：快速GPIO端口使端口引脚能够以高达原始器件3.5倍的速度切换。这些端口还允许随时读取端口引脚，无论其功能如何。
  • 可编程的片上锁相环(PLL)提供最高60 MHz(LPC2210)和75 MHz(LPC2210/01和LPC2220)的CPU时钟，建立时间为100 us。
  • 片上集成式振荡器配合外部晶体时操作范围为1 MHz到25 MHz，配合外部振荡器时高达25 MHz。
  • 省电模式包括空闲模式和掉电模式。
  • 处理器通过外部中断从掉电模式唤醒。
  • 外设功能提供单独使能/禁用，可实现功率优化。
  • 双电源：
    • CPU工作电压范围为1.65 V到1.95 V (1.8 V ± 0.15 V)。
    • I/O供电范围为3.0 V到3.6 V (3.3 V ± 10 %)，带有5 V容限的I/O板。16位/32位Arm7TDMI-S™处理器。
