FRDM Development Board for MCX A175, A176, A185, A186, A255, A256, A265 and A266 MCUs
- 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

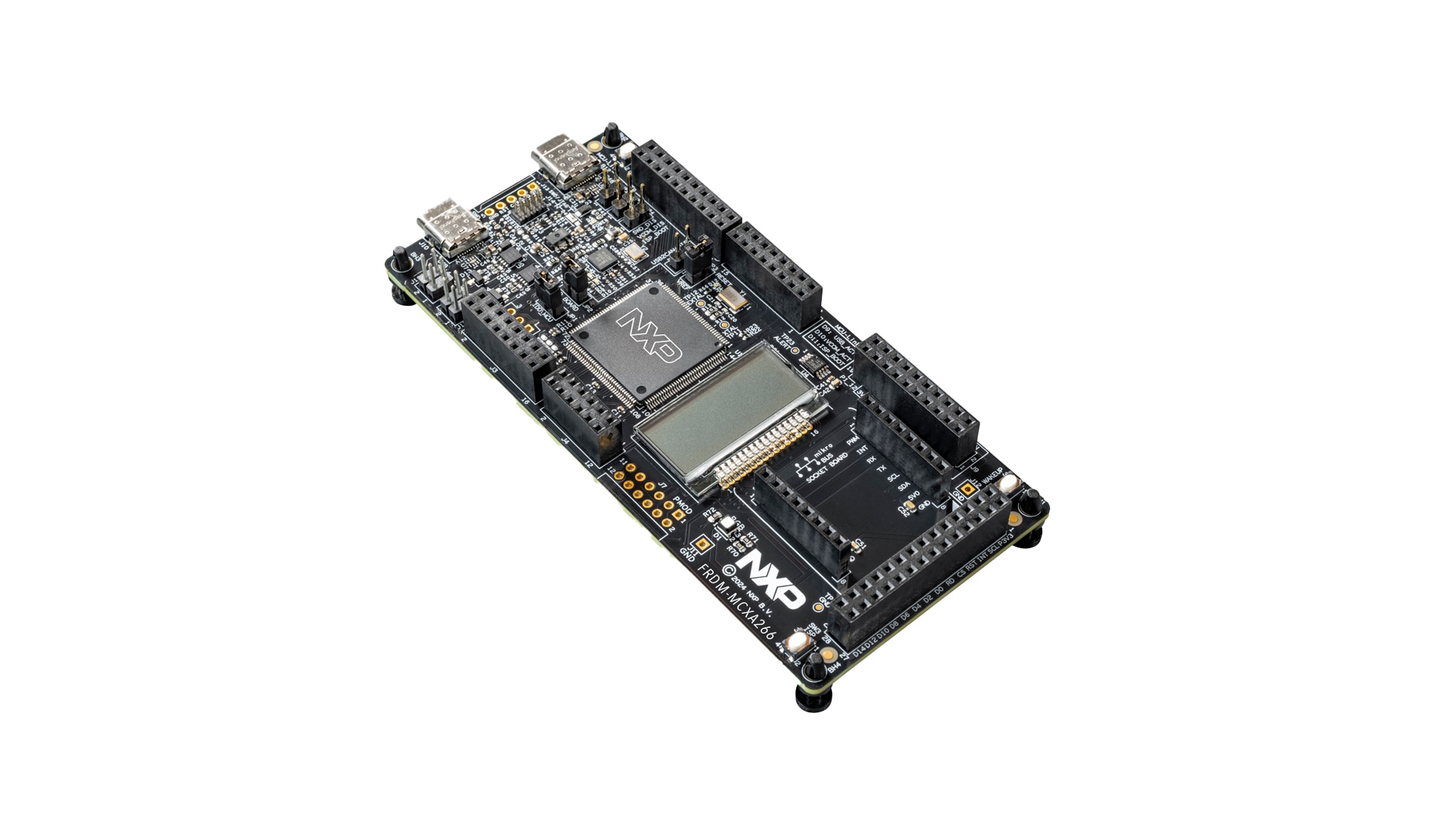

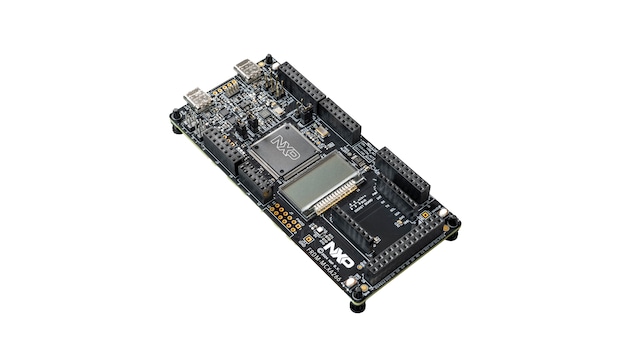

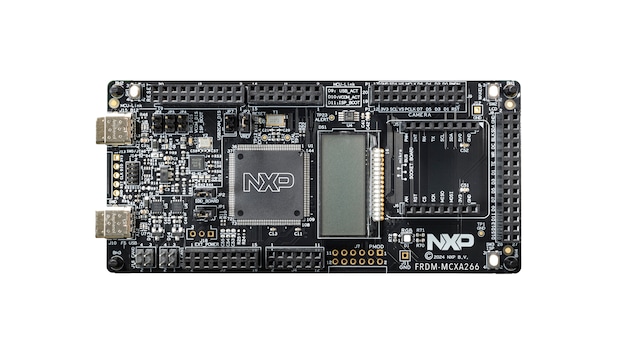

FRDM-MCXA266 are compact and scalable development boards for rapid prototyping of MCX A175, A176, A185, A186, A255, A256, A265 and A266 MCUs. They offer industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.
产品详情
支持的器件
处理器和微控制器
MCX A系列微控制器
- MCX-A17: MCX A17 Essential MCU Arm® Cortex® M33 with 180 MHz and Rich Serial Peripherals
- MCX-A26: MCX A26: Arm® Cortex®-M33 Mainstream MCU with Rich Serial Peripherals
- MCX-A25: MCX A25是一款必备主流MCU，采用Arm® Cortex® M33内核，主频高达180MHz，配备丰富的串行外设和安全功能
- MCX-A18: MCX A18 Essential Mainstream MCU Arm® Cortex® M33 with 240MHz and Rich Serial Peripherals
Features
Microcontroller
- MCX A266 Arm® Cortex®-M33 core up to 240 MHz
- Up to 1 MB flash with up to 256 KB RAM with 8 KB ECC, support SmartDMA, Security, FlexIO, CAN-FD, LPUART, LPSPI, LPI²C, I3C and DMA
Connectivity
- HS USB Type-C connectors (On-board MCU-Link debugger)
- FS USB Type-C connectors (MCXA266 USB port)
- CAN/I3C/SPI/I²C/UART connector (Arduino, PMOD/mikroBUS, DNP)
- Wi-Fi connector (Arduino, PMOD/mikroBUS, DNP)
- Camera connector (SmartDMA)
- LCD connector (FlexIO)
Debugger
- On-board MCU-Link debugger with CMSIS-DAP
- JTAG/SWD connector
Expansion Options
- Arduino® Header
- FRDM Header
- Pmod™ *DNP
- mikroBUS™
- SmartDMA/Camera Header
- FlexIO/LCD Header
User Interface
- RGB user LED
- Reset button
- ISP button
- Wake-up button
- SLCD
