FRDM i.MX 95 Development Board

FRDM-IMX95 全新
试生产
  • 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

滚动图片以放大

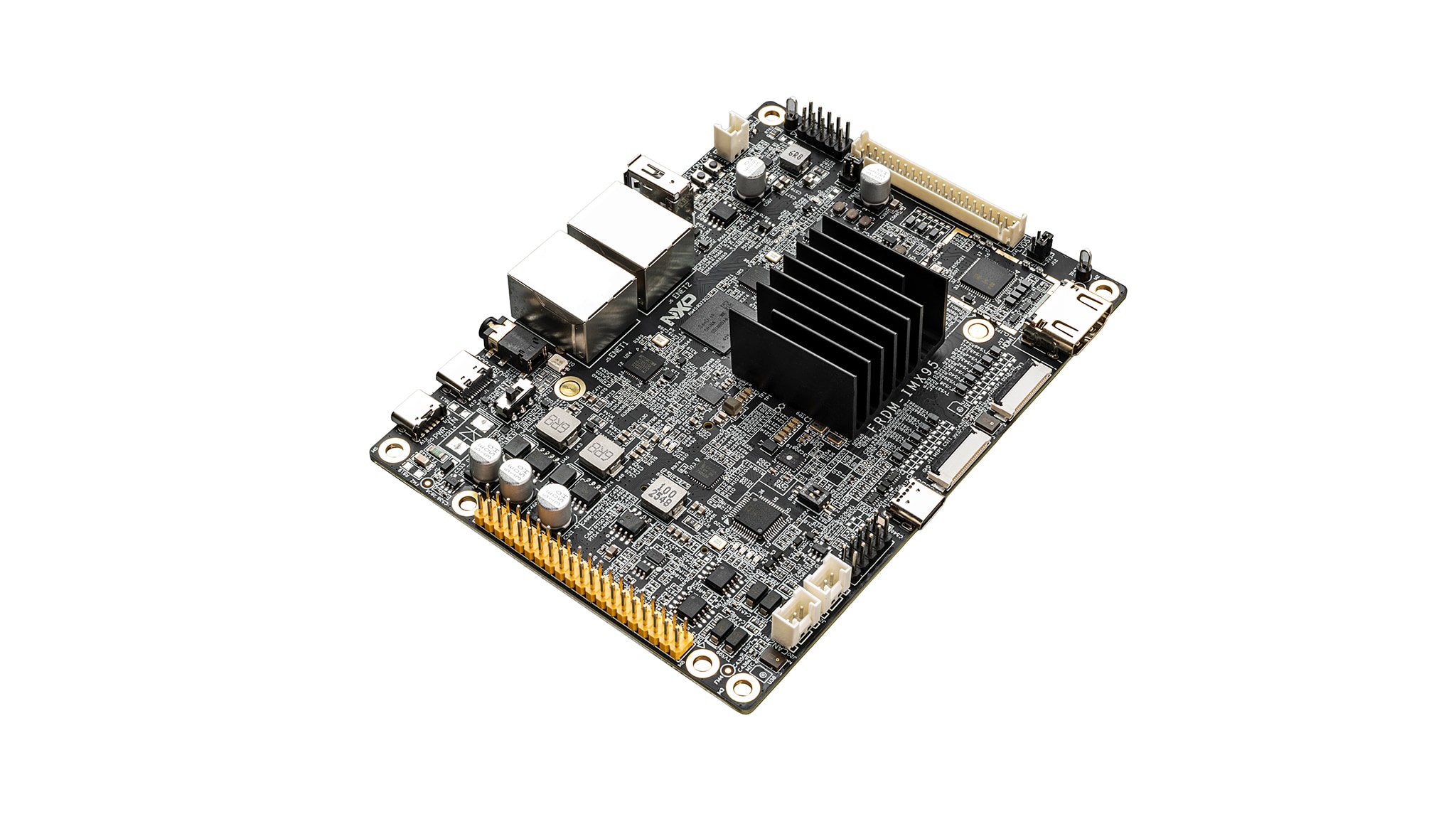

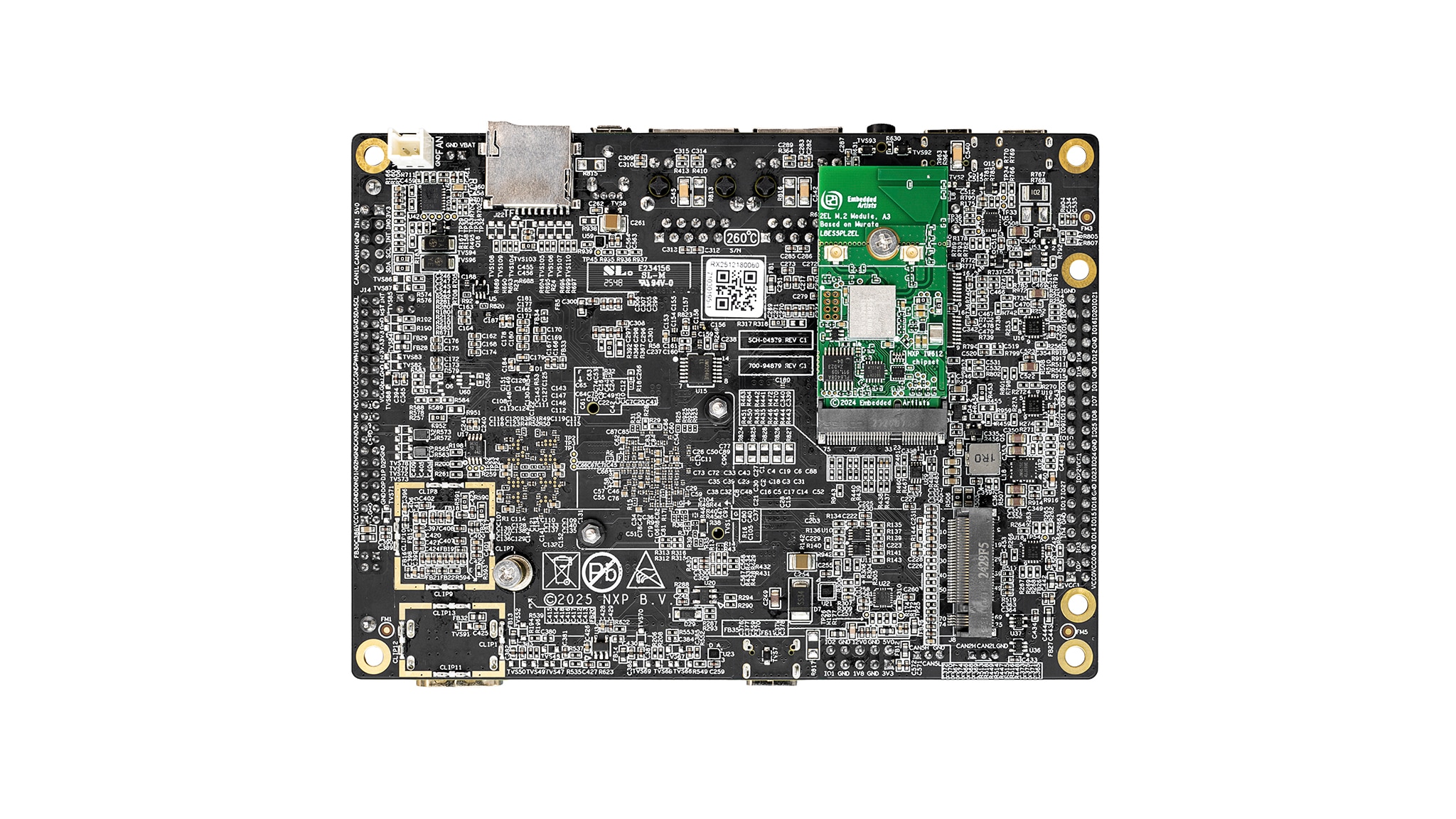

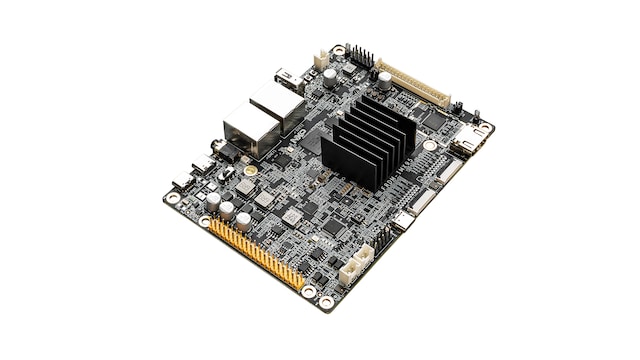

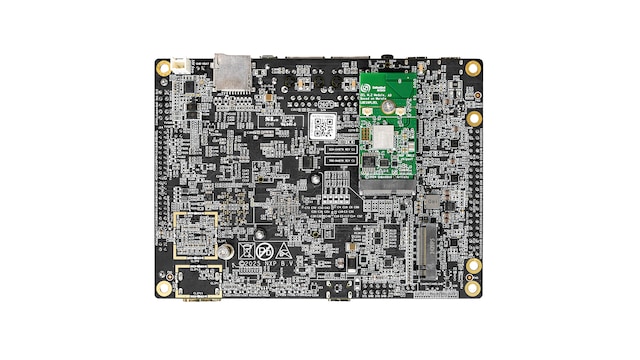

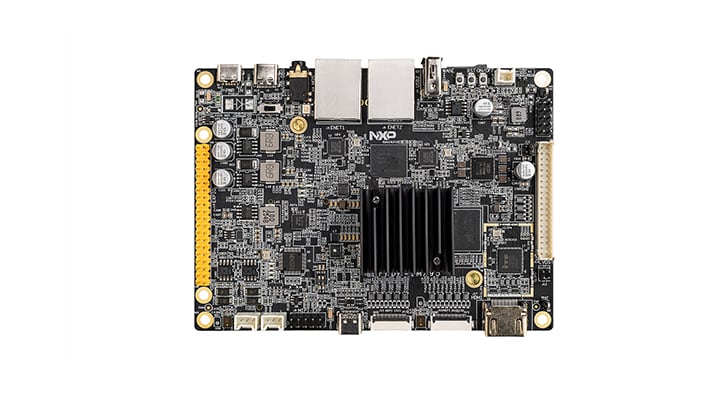

The FRDM‑IMX95 is a low‑cost, compact development board built on the powerful i.MX 95 applications processor in a 15 mm x 15 mm package. Designed for rapid prototyping and evaluation, it delivers advanced AI acceleration, rich multimedia performance and connectivity based on Wi-Fi 6 Tri-Radio IW612 M.2 module ideal for modern edge designs.

With flexible expansion interfaces, comprehensive software enablement and integrated GoPoint, an intuitive demo interface that simplifies exploring key use cases, the FRDM‑IMX95 is perfectly suited for advanced HMI systems, industrial networking, edge gateways, vision processing and AI‑driven applications.

框图

FRDM I.MX95

FRDM-IMX95 Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

i.MX 9处理器

  • i.MX95: i.MX 95应用处理器系列：支持功能安全的高性能平台，带eIQ® Neutron NPU

接口

通用I/O(GPIO)

  • PCAL6408A: 低压转换8位I²C总线/SMBus I/O扩展器
  • PCAL6524: Ultra-Low-Voltage Translating 24-Bit Fm+ I²C-Bus/SMBus I/O Expander

3.3V/5V IO CAN收发器

电源管理

VBUS保护

数据保护

5V PMIC解决方案

  • PF53: 带AVP和看门狗的12A/8A/15A内核电源稳压器
  • PF09: 面向高性能应用的9通道PMIC，符合ASIL D和SIL 2安全等级

通用负载开关

LED驱动器

  • PCA9632: 4位Fm+ I²C总线低功率LED驱动器

模拟及混合信号

实时时钟

  • PCF2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • IW612: 2.4/5GHz双频1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 + 802.15.4三频解决方案

Features

Processor

Memory

  • 8 GB Low-Power Double Data Rate(LPDDR) 4X-4000
  • 32 GB embedded MultiMediaCard (eMMC 5.1)
  • MicroSD slot
  • Electrically Erasable Programmable Read-Only Memory (EEPROM)

Display and Camera Interfaces

  • 1 x4 lane combo mobile industry processor interface-display
  • MIPI-DSI/CSI (FPC 22-pin connector)
  • 1 x4 lane low-voltage differential signaling (LVDS) to HDMI (HDMI connector)
  • 1 x4 lane LVDS (2x20-pin HDR)
  • 1 x4 lane MIPI-CSI (FPC 22-pin connector)

Wireless​

Audio

  • 3.5mm Audio Jack for Master Quality Sound (MQS) support
  • Pulse Density Modulation Microphone (PDM) MIC Support

Connectivity

  • 1x USB 3.0 Type-C connector; 1x USB 2.0 Type-A connector
  • 2x GbE RJ-45; CAN Header (HDR)
  • 2x20-pin Expansion Interface (EXPI) HDR
  • 2x5-pin HDR for I²C, Analog-to-Digital Converter (ADC) and CAN

Debug

  • Universal asynchronous receiver/transmitter (UART) via USB-Type C
