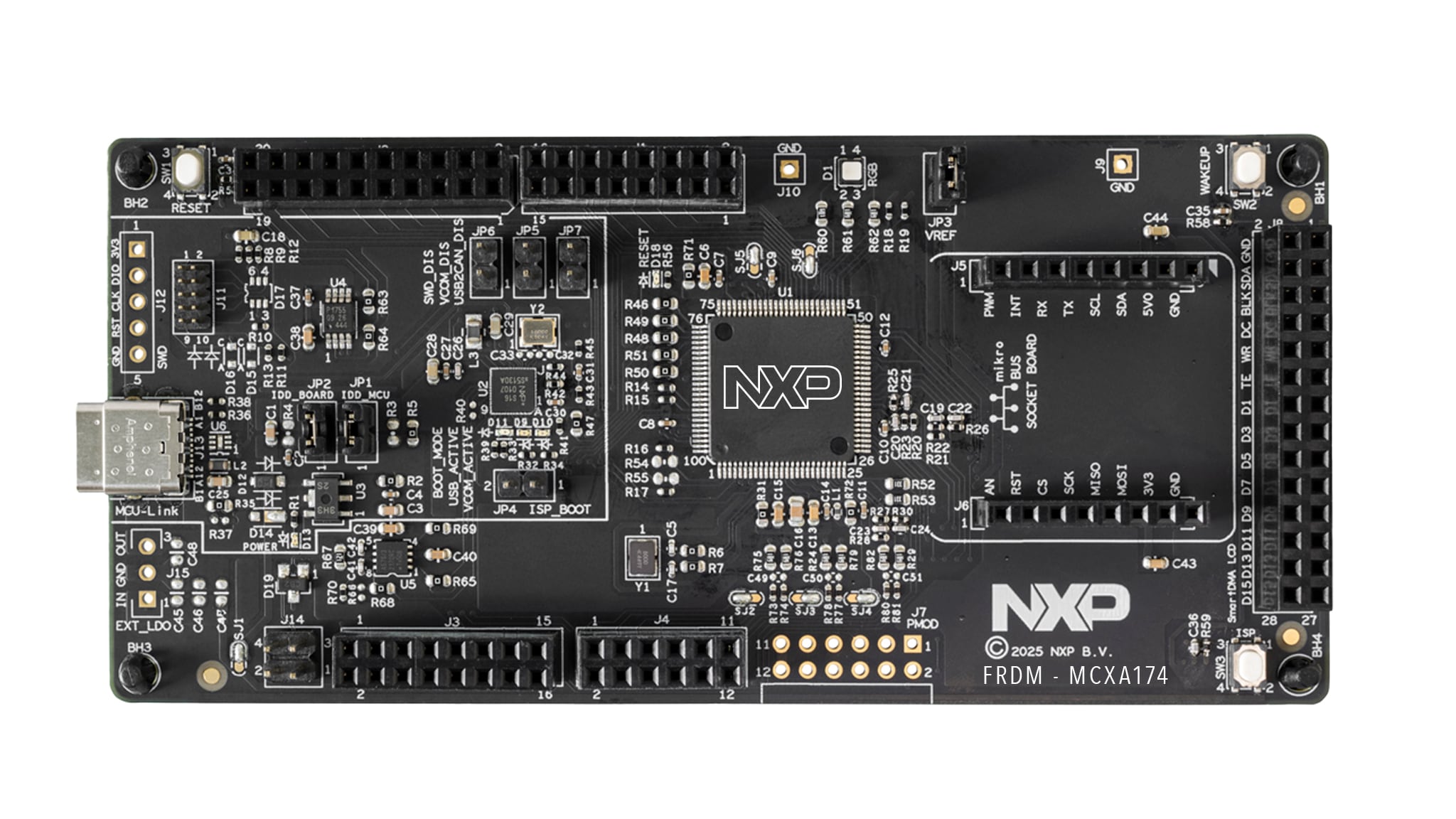

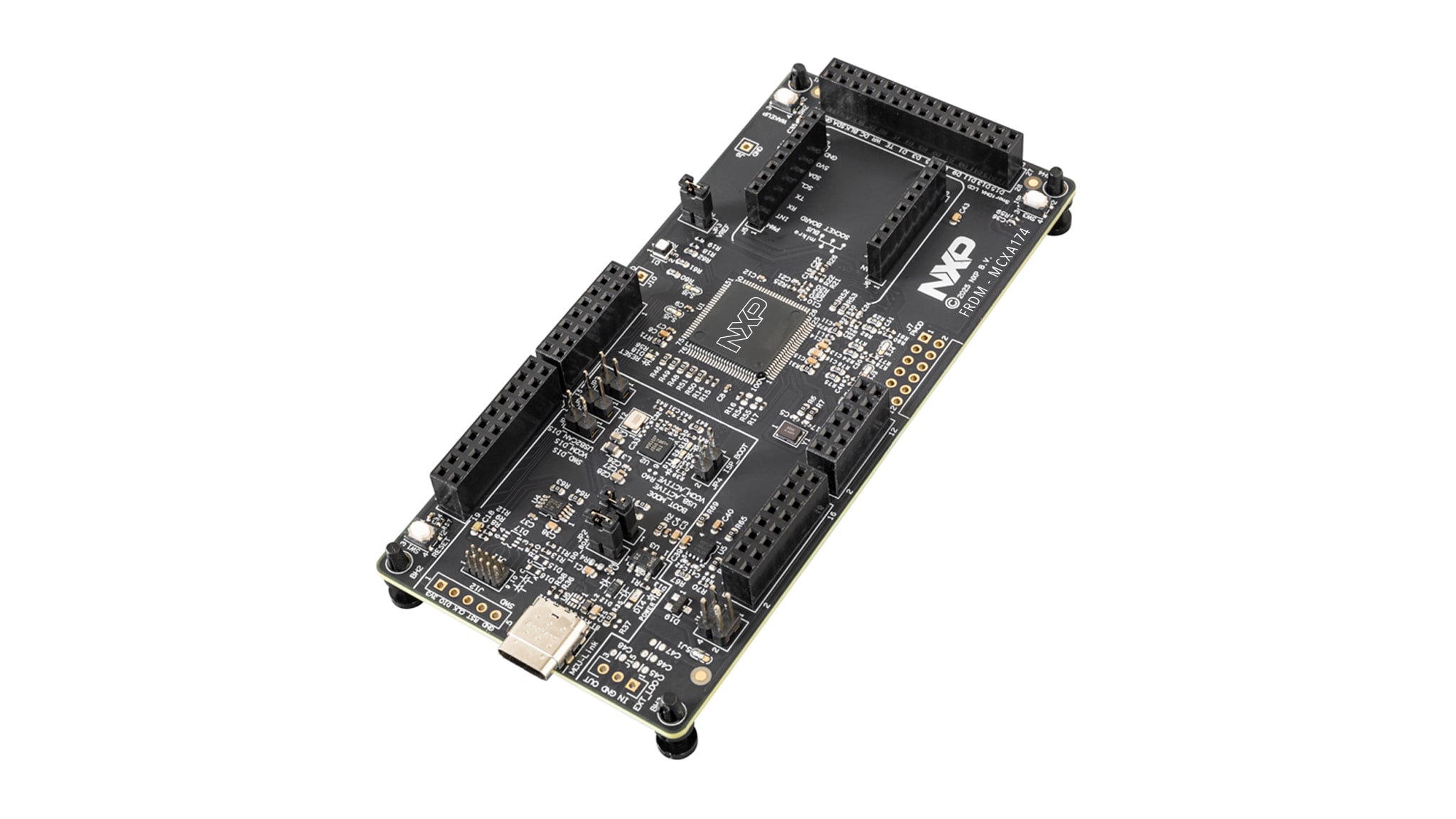

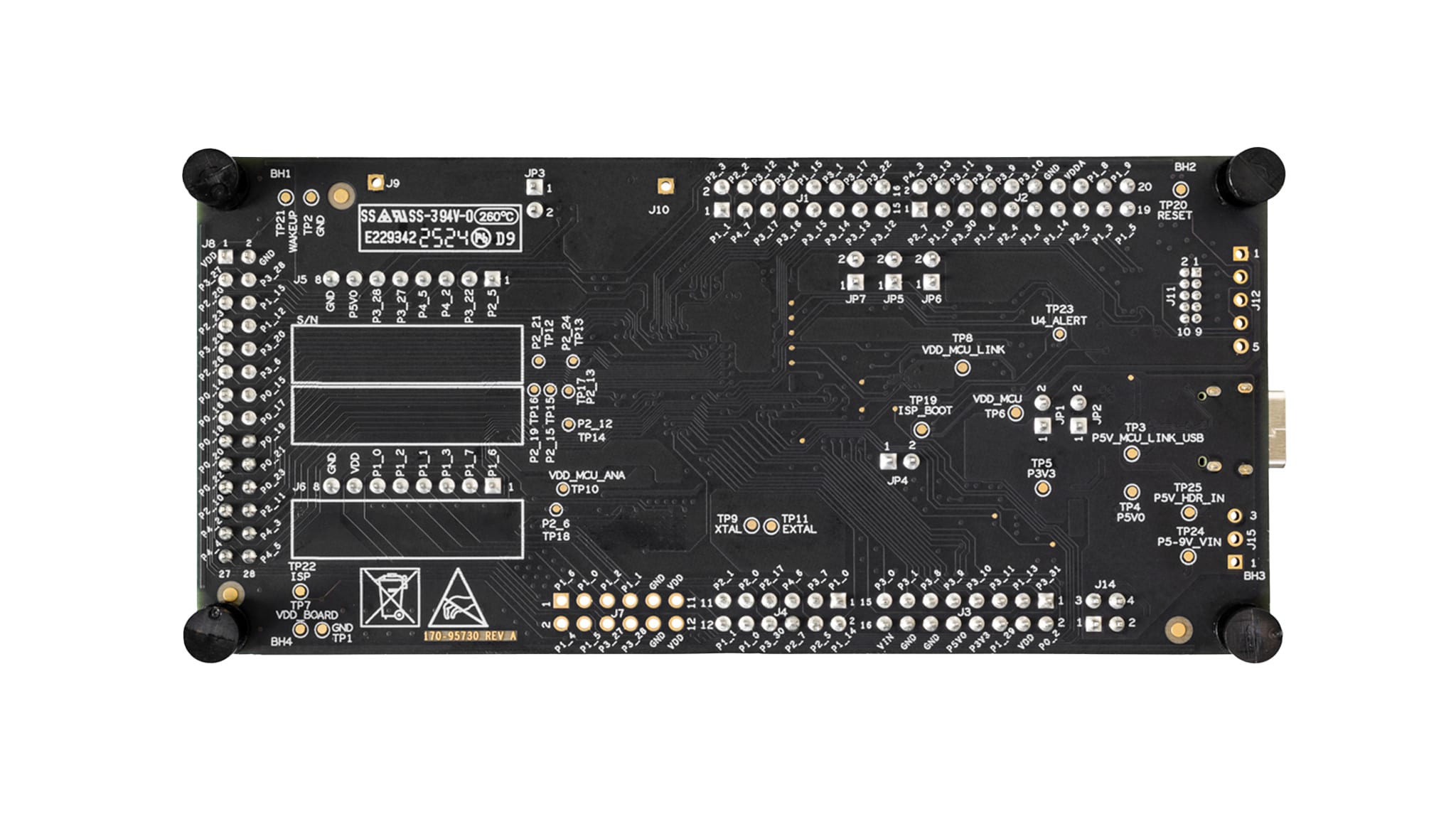

FRDM Development Board for MCX A173 and A174 MCUs
- 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。
FRDM-MCXA174 is a compact and scalable development board for rapid prototyping of MCX A173 and A174 microcontroller units (MCUs). They offer industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub (EBH) for add-on boards and the Application Code Hub (ACH) for software examples are available through the MCUXpresso Developer Experience.
产品详情
支持的器件
处理器和微控制器
MCX A系列微控制器
- MCX-A17: MCX A17 Essential MCU Arm® Cortex® M33 with 180 MHz and Rich Serial Peripherals
Features
Microcontroller
- MCX A174 Arm Cortex-M33 core up to 180 MHz
- Up to 256 KB Flash with up to 64 KB RAM and with 8 KB error correction code (ECC), support for smart direct memory access (SmartDMA), controller area network flexible data-rate (CAN-FD), low-power universal asynchronous receiver/transmitter (LPUART), low-power serial peripheral interface (LPSPI), low-power inter-integrated circuit (LPI²C ) and direct memory access (DMA)
Connectivity
- High-speed (HS) USB Type-C connectors (On-board MCU-Link debugger)
- controller area network (CAN) / serial peripheral interface (SPI) / inter-integrated circuit (I²C) / universal asynchronous receiver-transmitter (UART) connector (Arduino, peripheral module [PMOD] / mikroBUS)
- Wi-Fi connector (Arduino, PMOD/mikroBUS)
- LCD connector(SmartDMA)
Debugger
- On-board MCU-Link debugger with Cortex microcontroller software interface standard – debug access port (CMSIS-DAP)
- Joint test action group (JTAG) / serial wire debug (SWD) connector
Expansion Options
- Arduino® Header
- FRDM Header
- Pmod™ *do not populate (DNP)
- mikroBUS™
- SmartDMA/LCD Header
User Interface
- RGB user LED
- Reset button
- In-system programming (ISP) button
- Wake-up button
