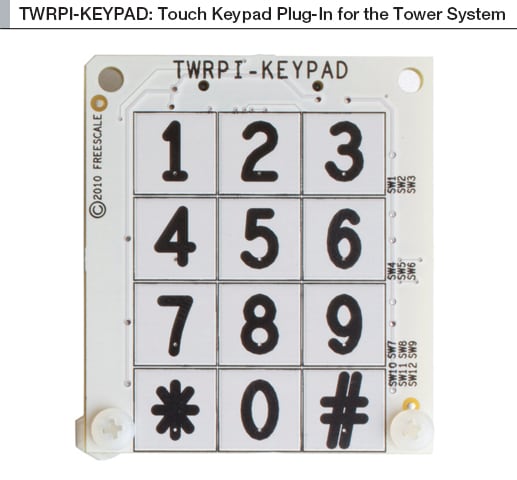

12-key Capacitive Touch Keypad Plug-In for the Tower System

TWRPI-KEYPAD

滚动图片以放大

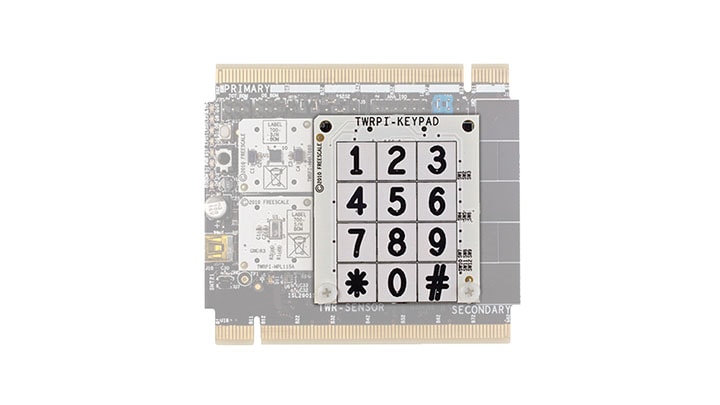

The TWRPI-KEYPAD capacitive touch keypad plug-in for the NXP® Tower® System lets you add keypad functionality to your embedded designs. This plug-in, or daughter card, is compatible with Tower System modules that feature touch pad Tower plug-in sockets. Simply place the TWRPI-KEYPAD onto a parent controller or peripheral module, and start prototyping quickly and easily. It's that simple and, quite literally, at your fingertips.

产品详情

支持的器件

处理器和微控制器

K6x以太网

  • K60_100: Kinetis® K60-100 MHz, 混合信号集成微控制器，基于Arm® Cortex®-M4内核
  • K60_120: Kinetis®K60 / 61-120-150 MHz，基于Arm® Cortex®-M4内核的混合信号集成和防篡改微控制器

K7x图形 LCD

  • K70_120: Kinetis® K70-120–150 MHz, 全速USB, 以太网, DDR和防篡改微控制器 (MCU)，基于Arm® Cortex®-M4内核

Features

  • 12 discrete capacative electrodes
  • Electrodes are arranged in a 12-key numeric telephone-keypad layout
  • Supported by the TSS library
  • Compatible with Tower® System modules that feature Tower plug-in (TWRPI) sockets
