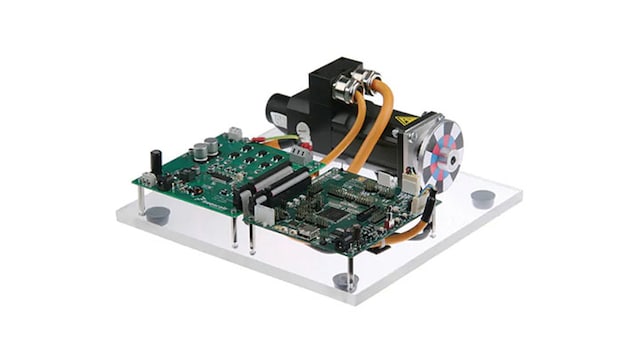

MPC5604P 3相PMSM开发套件

MTRCKTSPS5604P
试生产

滚动图片以放大

恩智浦® MTRCKTSPS5604P电机控制开发套件适用于需要PMSM电机的应用，如主动悬架和电动动力总成。

  • 可实现快速原型设计和电机控制应用评估，无需等待最终硬件设计。
  • 它包含基于32位恩智浦MPC5604P的控制器板和3相低压功率模块电路板。
  • 应用软件提供PMSM电机控制应用的完整参考实施，还能够利用汽车计算和电机控制库套件。

框图

选择框图:

采用恩智浦MPC5604P MCU的3相PMSM开发套件

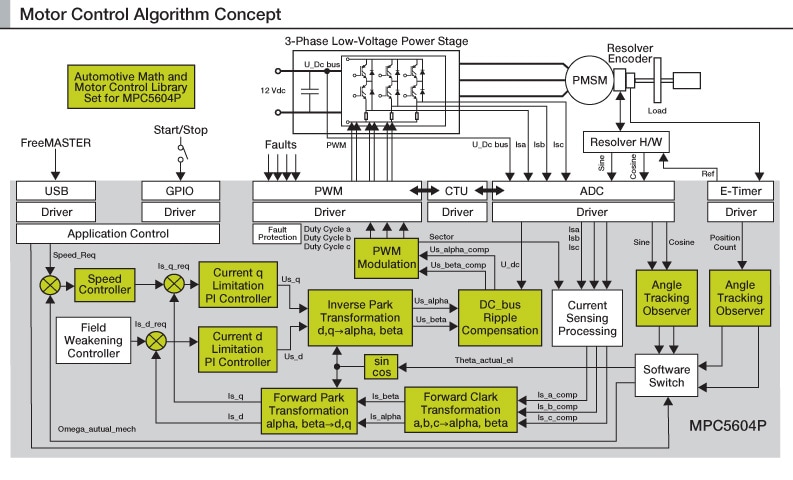

MTRCKTSPS5604P 3-phase PMSM Development Kit with NXP MPC5604P MCU IMG 2

MTRCKTSPS5604P：采用恩智浦MPC5604P MCU的3相PMSM开发套件

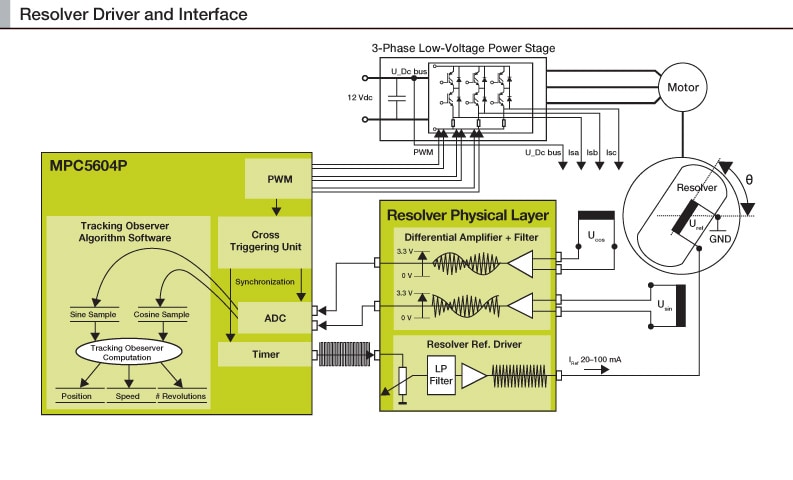

MTRCKTSPS5604P 3-phase PMSM Development Kit with NXP MPC5604P MCU IMG 1
获取框图PDF

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC560xP: 超可靠的MPC560xP MCU，适用于汽车和工业安全应用

接口

汽车LIN解决方案

  • MC33905: 带高速CAN和LIN的第二代SBC

电源管理

预驱动器

  • MC33937: 3相场效应晶体管预驱动器

功能

微控制器

  • 32位恩智浦MPC5604P控制器板

电源管理

  • 基于SMARTMOS® MC33937A预驱动器的3相低压功率模块
  • 支持带分解器和编码器传感器的低压PMSM电机
  • DC总线过压、过流和欠压故障检测

支持

  • 支持FreeMASTER可视化/配置
  • 基于ANSI-C的电机控制参考软件，可轻松移植
  • 软件和硬件扩展文档
N true 0 TSPMTRCKTSPS5604Pzh 5 应用笔记 Application Note t789 1 快速参考指南 Quick Reference Guide t525 1 用户指南 User Guide t792 2 简介 Fact Sheet t523 1 zh 2 1 1 English 3-Phase PMSM Motor Control Development Kit with Qorivva MPC5604P MCU 1345758093946705974340 TSP 396.2 KB None None documents None 1345758093946705974340 /docs/en/quick-reference-guide/MTRCKTSPS5604PQSG.pdf 396245 /docs/en/quick-reference-guide/MTRCKTSPS5604PQSG.pdf MTRCKTSPS5604PQSG N N 2012-08-29 MTRCKTSPS5604P - Quick Start Guide /docs/en/quick-reference-guide/MTRCKTSPS5604PQSG.pdf /docs/en/quick-reference-guide/MTRCKTSPS5604PQSG.pdf Quick Reference Guide N Y 803735842453594974 2023-06-19 pdf N en Oct 5, 2012 Quick Reference Guide t525 快速参考指南 Quick Reference Guide Y N MTRCKTSPS5604P - Quick Start Guide 2 2 English 1345758273841710166003 TSP 595.9 KB None None documents None 1345758273841710166003 /docs/en/fact-sheet/MTRCKTSPS5604PFS.pdf 595856 /docs/en/fact-sheet/MTRCKTSPS5604PFS.pdf MTRCKTSPS5604PFS N N 2012-08-29 MTRCKTSPS5604P Fact Sheet /docs/en/fact-sheet/MTRCKTSPS5604PFS.pdf /docs/en/fact-sheet/MTRCKTSPS5604PFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Oct 5, 2012 Fact Sheet t523 简介 Fact Sheet Y N MTRCKTSPS5604P Fact Sheet false zh 2 3 0 English NXP’s embedded motion control series 3-Phase BLDC/PMSM Low Voltage Power Stage is an 8 V–50 V, 10 Amps, surface-mounted power stage. In combination with one of the embedded motion control series controller boards, it provides a software development platform allowing algorithms to be written and tested without the need to design and build a power stage. It supports speed and position sensing based on Hall sensors, resolver sensors, encoder sensors, and back electromotive force (BackEMF) sig 1345204300779734071096 TSP 2.4 MB None None documents Y None 1345204300779734071096 /docs/en/user-guide/3PHLVPSUM.pdf 2367063 /docs/en/user-guide/3PHLVPSUM.pdf 3PHLVPSUG N N 2016-10-31 3-Phase BLDC/PMSM Low Voltage Power Stage User Manual /docs/en/user-guide/3PHLVPSUM.pdf /docs/en/user-guide/3PHLVPSUM.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Aug 16, 2012 User Guide t792 用户指南 User Guide Y N 3-Phase BLDC/PMSM Low Voltage Power Stage User Manual 4 0 English This document describes the design of MPC5604P
Controller Board, which is targeted for rapid
development of motor control applications. 1346404399800699265734 TSP 3.3 MB None None documents Y None 1346404399800699265734 /docs/en/user-guide/MPC5604PMCBUG.pdf 3328354 /docs/en/user-guide/MPC5604PMCBUG.pdf MPC5604PMCBUG N N 2012-08-31 MPC5604P Controller Board User's Guide /docs/en/user-guide/MPC5604PMCBUG.pdf /docs/en/user-guide/MPC5604PMCBUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Aug 30, 2012 User Guide t792 用户指南 User Guide Y N MPC5604P Controller Board User's Guide false zh 应用笔记 Application Note 1 5 1 English Describing the design of a 3-phase Permanent Magnet Synchronous Motor (PMSM) vector control drive with 3-shunt current sensing with a position sensor. 1350590935539713618716 TSP 2.3 MB None None documents None 1350590935539713618716 /docs/en/application-note/AN4561.pdf 2301199 /docs/en/application-note/AN4561.pdf AN4561 documents N N 2016-10-31 AN4561: 3-Phase PMSM Motor Control Kit with the MPC5604P – Application Note /docs/en/application-note/AN4561.pdf /docs/en/application-note/AN4561.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 8, 2015 645036621402383989 Application Note Y N AN4561: 3-Phase PMSM Motor Control Kit with the MPC5604P – Application Note false 0 MTRCKTSPS5604P downloads zh-Hans true 0 Y TSP 应用笔记 1 /docs/en/application-note/AN4561.pdf 2016-10-31 1350590935539713618716 TSP 5 Nov 8, 2015 Application Note Describing the design of a 3-phase Permanent Magnet Synchronous Motor (PMSM) vector control drive with 3-shunt current sensing with a position sensor. None /docs/en/application-note/AN4561.pdf English documents 2301199 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4561.pdf AN4561: 3-Phase PMSM Motor Control Kit with the MPC5604P – Application Note /docs/en/application-note/AN4561.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4561: 3-Phase PMSM Motor Control Kit with the MPC5604P – Application Note 2.3 MB AN4561 N 1350590935539713618716 快速参考指南 1 /docs/en/quick-reference-guide/MTRCKTSPS5604PQSG.pdf 2012-08-29 1345758093946705974340 TSP 1 Oct 5, 2012 Quick Reference Guide 快速参考指南 3-Phase PMSM Motor Control Development Kit with Qorivva MPC5604P MCU None /docs/en/quick-reference-guide/MTRCKTSPS5604PQSG.pdf English 396245 None Quick Reference Guide 2023-06-19 N /docs/en/quick-reference-guide/MTRCKTSPS5604PQSG.pdf MTRCKTSPS5604P - Quick Start Guide /docs/en/quick-reference-guide/MTRCKTSPS5604PQSG.pdf documents 803735842453594974 Quick Reference Guide N Y en None Y t525 pdf 1 N N MTRCKTSPS5604P - Quick Start Guide 396.2 KB MTRCKTSPS5604PQSG N 1345758093946705974340 用户指南 2 /docs/en/user-guide/3PHLVPSUM.pdf 2016-10-31 1345204300779734071096 TSP 3 Aug 16, 2012 User Guide 用户指南 NXP’s embedded motion control series 3-Phase BLDC/PMSM Low Voltage Power Stage is an 8 V–50 V, 10 Amps, surface-mounted power stage. In combination with one of the embedded motion control series controller boards, it provides a software development platform allowing algorithms to be written and tested without the need to design and build a power stage. It supports speed and position sensing based on Hall sensors, resolver sensors, encoder sensors, and back electromotive force (BackEMF) sig Y None /docs/en/user-guide/3PHLVPSUM.pdf English 2367063 None User Guide 2023-06-19 N /docs/en/user-guide/3PHLVPSUM.pdf 3-Phase BLDC/PMSM Low Voltage Power Stage User Manual /docs/en/user-guide/3PHLVPSUM.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 0 N N 3-Phase BLDC/PMSM Low Voltage Power Stage User Manual 2.4 MB 3PHLVPSUG N 1345204300779734071096 /docs/en/user-guide/MPC5604PMCBUG.pdf 2012-08-31 1346404399800699265734 TSP 4 Aug 30, 2012 User Guide 用户指南 This document describes the design of MPC5604P
Controller Board, which is targeted for rapid
development of motor control applications. Y None /docs/en/user-guide/MPC5604PMCBUG.pdf English 3328354 None User Guide 2022-12-07 N /docs/en/user-guide/MPC5604PMCBUG.pdf MPC5604P Controller Board User's Guide /docs/en/user-guide/MPC5604PMCBUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 0 N N MPC5604P Controller Board User's Guide 3.3 MB MPC5604PMCBUG N 1346404399800699265734 简介 1 /docs/en/fact-sheet/MTRCKTSPS5604PFS.pdf 2012-08-29 1345758273841710166003 TSP 2 Oct 5, 2012 Fact Sheet 简介 None /docs/en/fact-sheet/MTRCKTSPS5604PFS.pdf English 595856 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/MTRCKTSPS5604PFS.pdf MTRCKTSPS5604P Fact Sheet /docs/en/fact-sheet/MTRCKTSPS5604PFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 2 N N MTRCKTSPS5604P Fact Sheet 595.9 KB MTRCKTSPS5604PFS N 1345758273841710166003 true Y Tools

文档

快速参考恩智浦 文档类别.

筛选条件

5 文件

紧凑列表

应用笔记 (1)
快速参考指南 (1)
用户指南 (2)
简介 (1)

软件

快速参考恩智浦 软件类型.

筛选条件

2 软件文件

注意: 推荐在电脑端下载软件，体验更佳。
