S32K116-Q048通用评估板

S32K116EVB 正常供应

滚动图片以放大

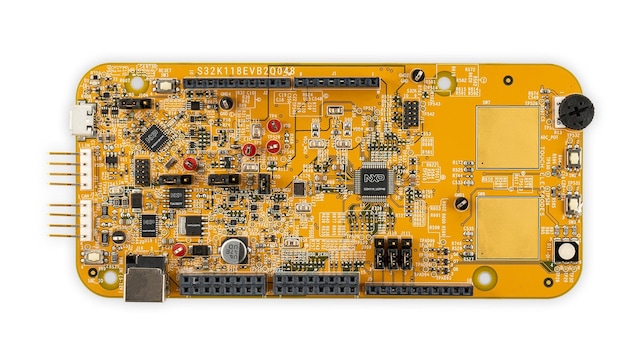

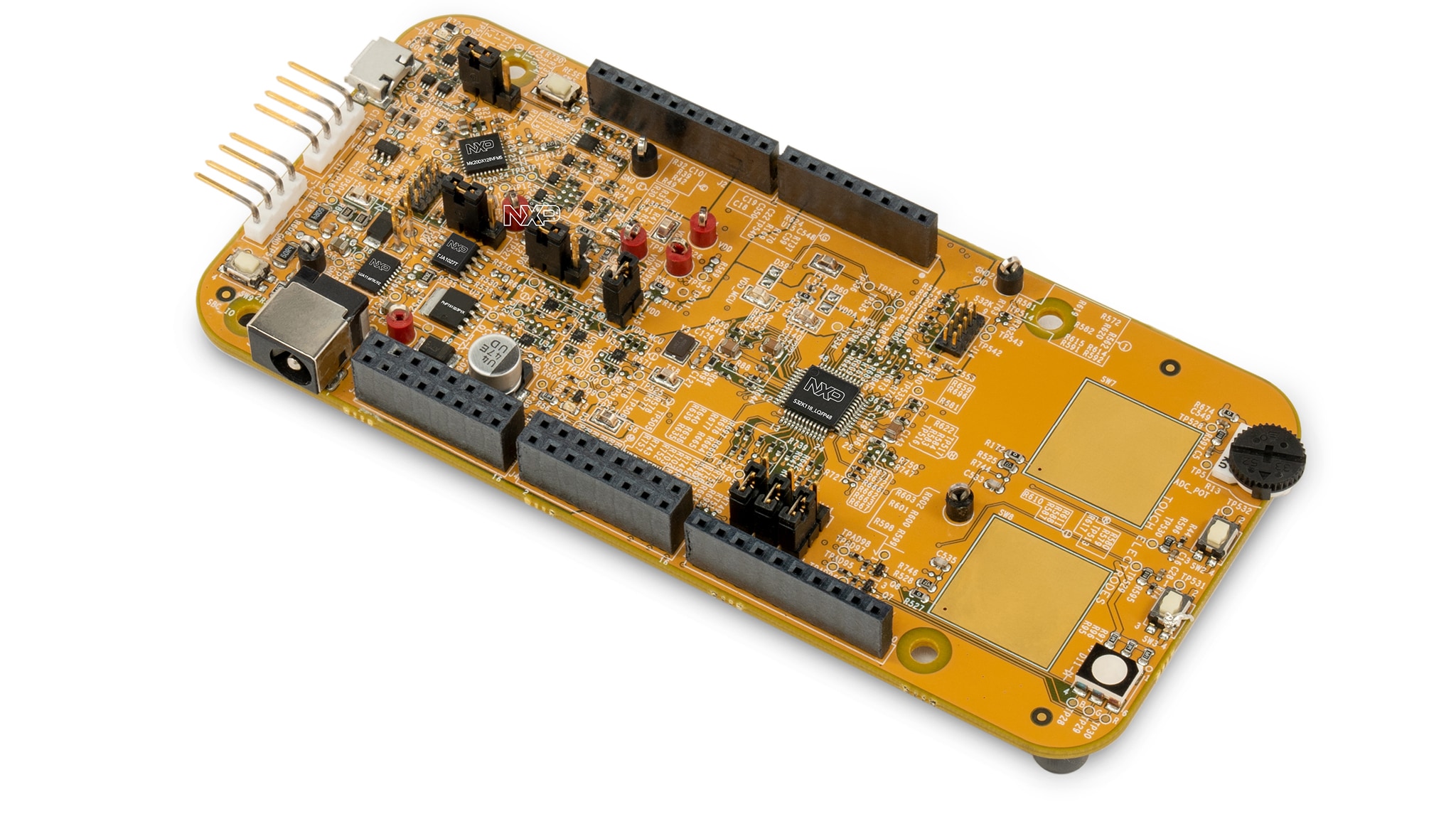

S32K116EVB2Q048是面向通用工业和汽车应用的低成本评估和开发板。

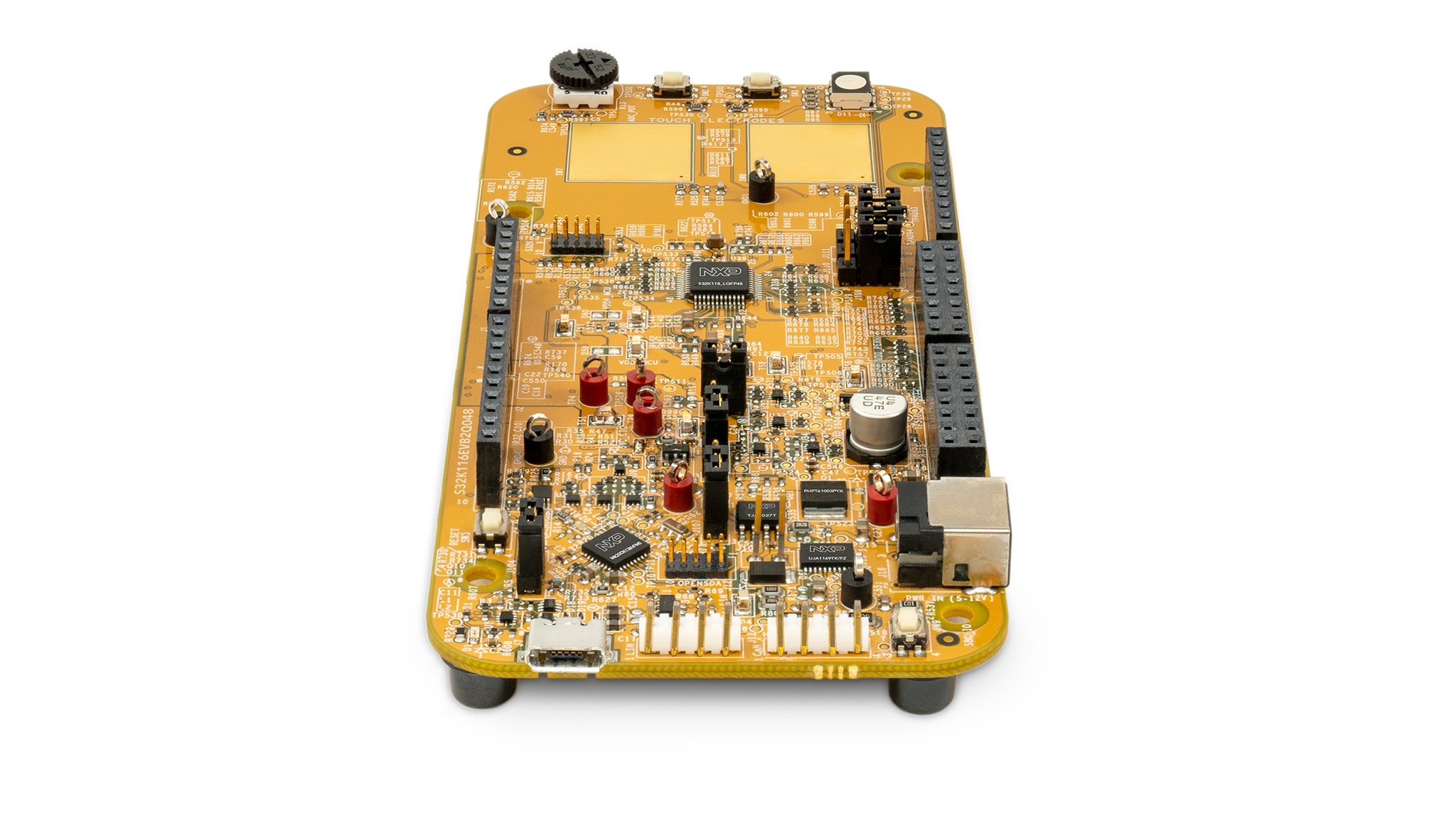

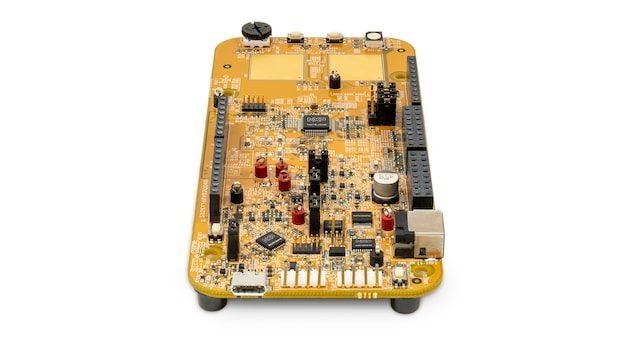

S32K116EVB2Q048和S32K116EVB-Q048基于32位Arm® Cortex®-M0+ S32K11x MCU，提供与Arduino® UNO引脚布局兼容的标准规格，有多种扩展板选项。

这两种版本集成了一个符合安全硬件扩展(SHE)规范的安全模块，可实现快速的应用原型设计和演示。

产品详情

支持的器件

接口

汽车LIN解决方案

  • TJA1027: LIN 2.2/SAE J2602收发器

电源管理

安全SBC

  • UJA1169TK: 微型高速CAN系统基础芯片

处理器和微控制器

S32K汽车通用MCU

  • S32K1: S32K1汽车通用微控制器

功能

微控制器(MCU)

  • 基于32位Arm® Cortex®-M0+的S32K116

系统基础芯片(SBC)

  • UJA1169TK：微型高速CAN系统基础芯片

收发器

  • TJA1027：LIN 2.2A/SAE J2602收发器

适配器

  • OpenSDA：串行和调试适配器，支持多种行业标准的调试接口

尺寸和价格

  • 小规格尺寸： 4.5” x 2.3”
  • 低成本

兼容性

  • 兼容Arduino®UNO引脚输出，支持“Shield”扩展

接口

  • 板载CAN、LIN和UART/SCI连接

电源

  • 灵活的供电选项：micro USB或外部12 V电源

组件

  • 两个触摸板
  • 1个电位器，用于精确电压和模拟测量
  • 1个RGB LED
  • 两个按钮

购买选项

S32K116EVB2Q048-Image

点击展开

  • S32K116EVB2Q048
    正常供应

  • S32K116-Q048 Evaluation Board for Automotive General Purpose.

  • 套件包含：

    • S32K116EVB2Q048评估板
  • $105.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 9
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
