S32K-ISELED LED照明解决方案

S32K-ISELED

滚动图片以放大

ISELED是下一代智能LED照明系统的新技术，主要用于汽车应用(主要应用为汽车内部照明)，也适用于工业。ISELED将可确保稳定的光参数(亮度和颜色稳定性)的成本高昂的外部处理转到RGB LED自身的嵌入式处理中，解决了当今LED照明系统中的校准和通信问题。

此基于32位Arm® Cortex®-M的S32K MCU（6个基于Cortex-M0+/M4F的S32K1 MCU系列和13个基于Cortex-M7 的S32K3 MCU系列将于2022年上市）通过ISELED软件驱动程序支持ISELED协议, 可用于SDK和AUTOSAR® MCAL。

框图

S32K-ISELED LED照明解决方案

S32K-ISELED LED lighting solution
获取框图PDF

支持的器件

处理器和微控制器

S32K汽车通用MCU

  • S32K3: S32K3汽车通用微控制器
  • S32K1: S32K1汽车通用微控制器

特性

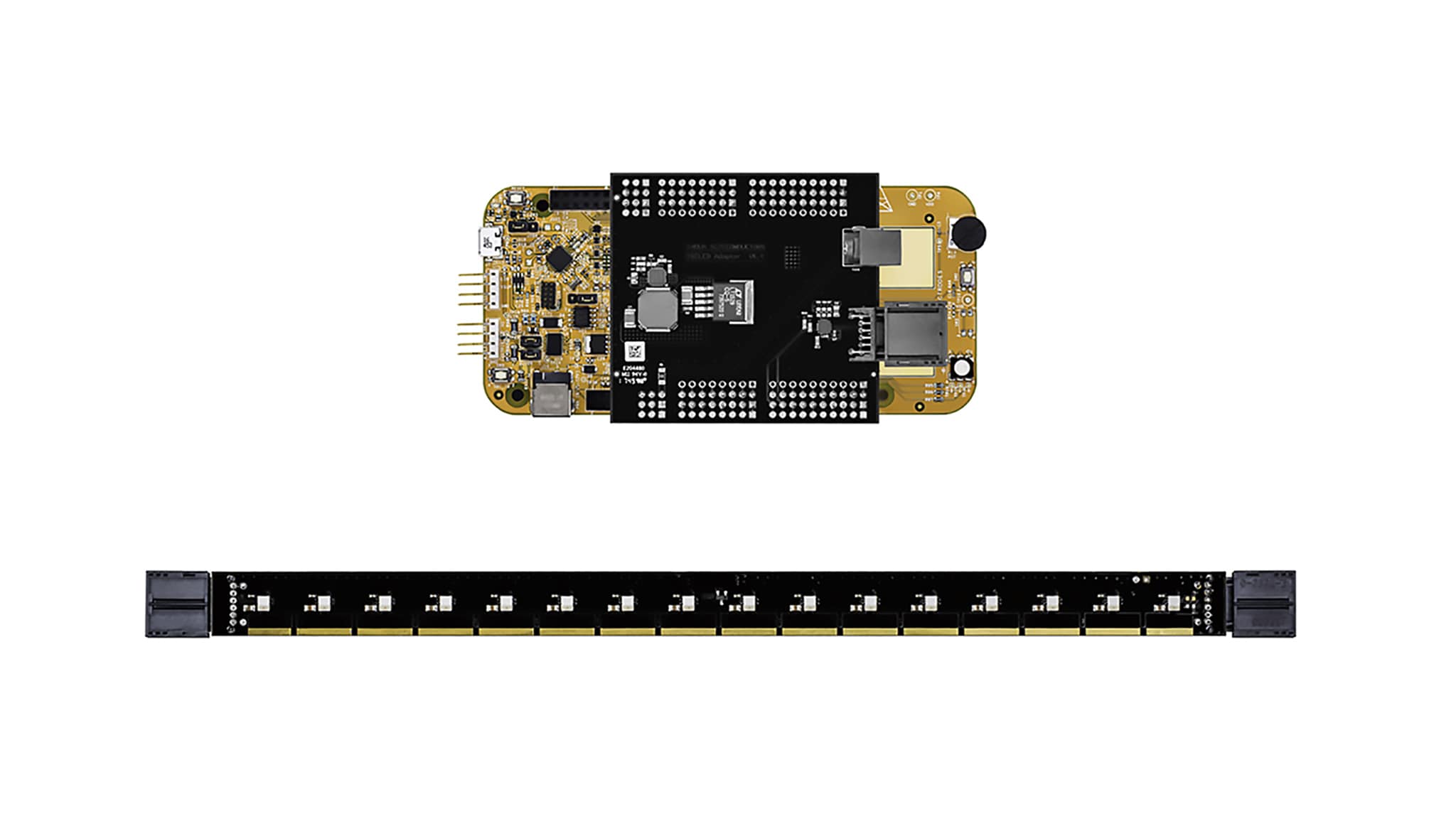

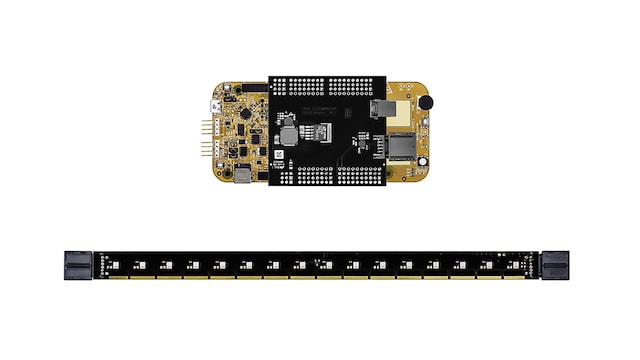

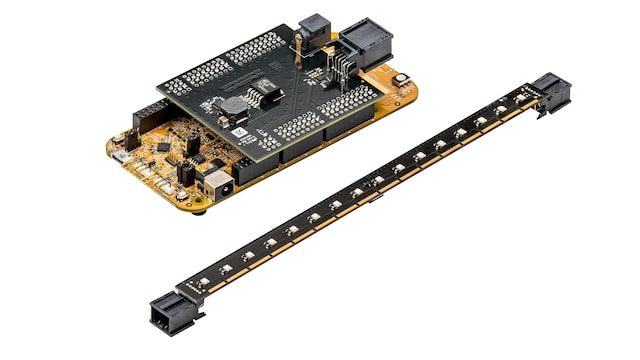

S32K-ISELED评估路径

  • S32K-ISELED评估路径
    • S32K144EVB
    • 1 x IISELED电源适配器板
    • 1 x 16-LED条(包含来自Dominant Opto Technologies的ISELED LED灯)
  • 从Newark或Farnell订购此产品(在北美为Newark运营）

S32K-ISELED生产路径：

  • 购买时选择支持S32K1 MCU ISELED的部件。它们包括具有完整功能的评估和生产阶段的许可证。

购买选项

FS32K116LIT0VFMT-Image

点击展开

  • FS32K116LIT0VFMT
    正常供应

  • S32K116 Arm Cortex-M0+, 48 MHz, 128 Kb Flash, ISELED, FlexIO, QFN32 - S32K MCUs for General-Purpose.

  • $3.74 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
样品加入购物车
从分销商处购买
FS32K116LIT0VLFT-Image

点击展开

  • FS32K116LIT0VLFT
    正常供应

  • S32K116 Arm Cortex-M0+, 48 MHz, 128 Kb Flash, ISELED, FlexIO, LQFP48 - S32K MCUs for General-Purpose.

  • $3.53 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
样品加入购物车
从分销商处购买
FS32K118LIT0VLFT-Image

点击展开

  • FS32K118LIT0VLFT
    正常供应

  • S32K118 Arm Cortex-M0+, 48 MHz, 256 Kb Flash, ISELED, FlexIO, LQFP48 - S32K MCUs for General-Purpose.

  • $4.13 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
样品加入购物车
从分销商处购买
FS32K142UIT0VLHT-Image

点击展开

  • FS32K142UIT0VLHT
    正常供应

  • S32K142 Arm Cortex-M4F, 112 MHz, 256 Kb Flash, ISELED, FlexIO, LQFP64 - S32K MCUs for General-Purpose.

  • 数量为 1K
从分销商处购买
FS32K144UIT0VLHT-Image

点击展开

  • FS32K144UIT0VLHT
    正常供应

  • S32K144 Arm Cortex-M4F, 112 MHz, 512 Kb Flash, ISELED, FlexIO, LQFP64 - S32K MCUs for General-Purpose.

  • $5.0 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
样品加入购物车
从分销商处购买
FS32K144ULT0VLHT-Image

点击展开

  • FS32K144ULT0VLHT
    正常供应

  • S32K144 Arm Cortex-M4F, 112 MHz, 512 Kb Flash, ISELED, FlexIO, CSEc security, LQFP64 - S32K MCUs for General-Purpose.

  • $5.85 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
样品加入购物车
从分销商处购买
FS32K146UIT0VLLT-Image

点击展开

  • FS32K146UIT0VLLT
    正常供应

  • S32K146 Arm Cortex-M4F, 112 MHz, 1Mb Flash, ISELED, FlexIO, LQFP100 - S32K MCUs for General-Purpose.

  • $8.37 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
FS32K146ULT0VLLT-Image

点击展开

  • FS32K146ULT0VLLT
    正常供应

  • S32K146 Arm Cortex-M4F, 112 MHz, 1Mb Flash, ISELED, FlexIO, CSEc security, LQFP100 - S32K MCUs for General-Purpose.

  • $9.79 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
FS32K144ULT0VLLT-Image

点击展开

  • FS32K144ULT0VLLT
    正常供应

  • S32K144 Arm Cortex-M4F, 112 MHz, 512 Kb Flash, ISELED, FlexIO, CSEc security, LQFP100 - S32K MCUs for General-Purpose.

购买选项
FS32K148UIT0VLQT-Image

点击展开

  • FS32K148UIT0VLQT
    正常供应

  • S32K148 Arm Cortex-M4F, 112 MHz, 2 Mb Flash, ISELED, FlexIO, LQFP144 - S32K MCUs for General-Purpose.

  • $12.9 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
FS32K148UGT0VLQT-Image

点击展开

  • FS32K148UGT0VLQT
    正常供应

  • S32K148 Arm Cortex-M4F, 112 MHz, 2Mb Flash, FlexIO, CSEc security, ethernet, LQFP144 - S32K MCUs for General-Purpose.

  • $15.24 USD
  • 数量为 1K
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
