S32K148汽车远程信息处理盒（T-Box）

S32K148-T-BOX

滚动图片以放大

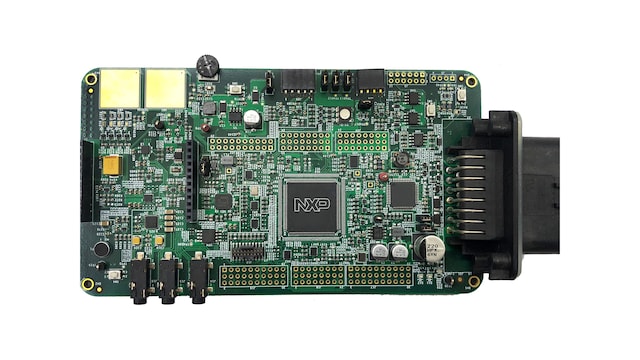

S32K148 T-BOX是一款参考设计板，开箱即用，专为经过验证的汽车远程信息处理盒（T-BOX）应用设计。

S32K148-T-Box采用基于32位Arm® Cortex®-M4F的S32K148微控制器，为T-Box车联网标准终端提供灵活的评估平台。S32K148-T-Box解决方案与S32K148EVB完全兼容。

S32K148-T-Box仅供授权客户购买。对每个订单进行审查。请参见S32K3参考设计板 ，了解替代解决方案。

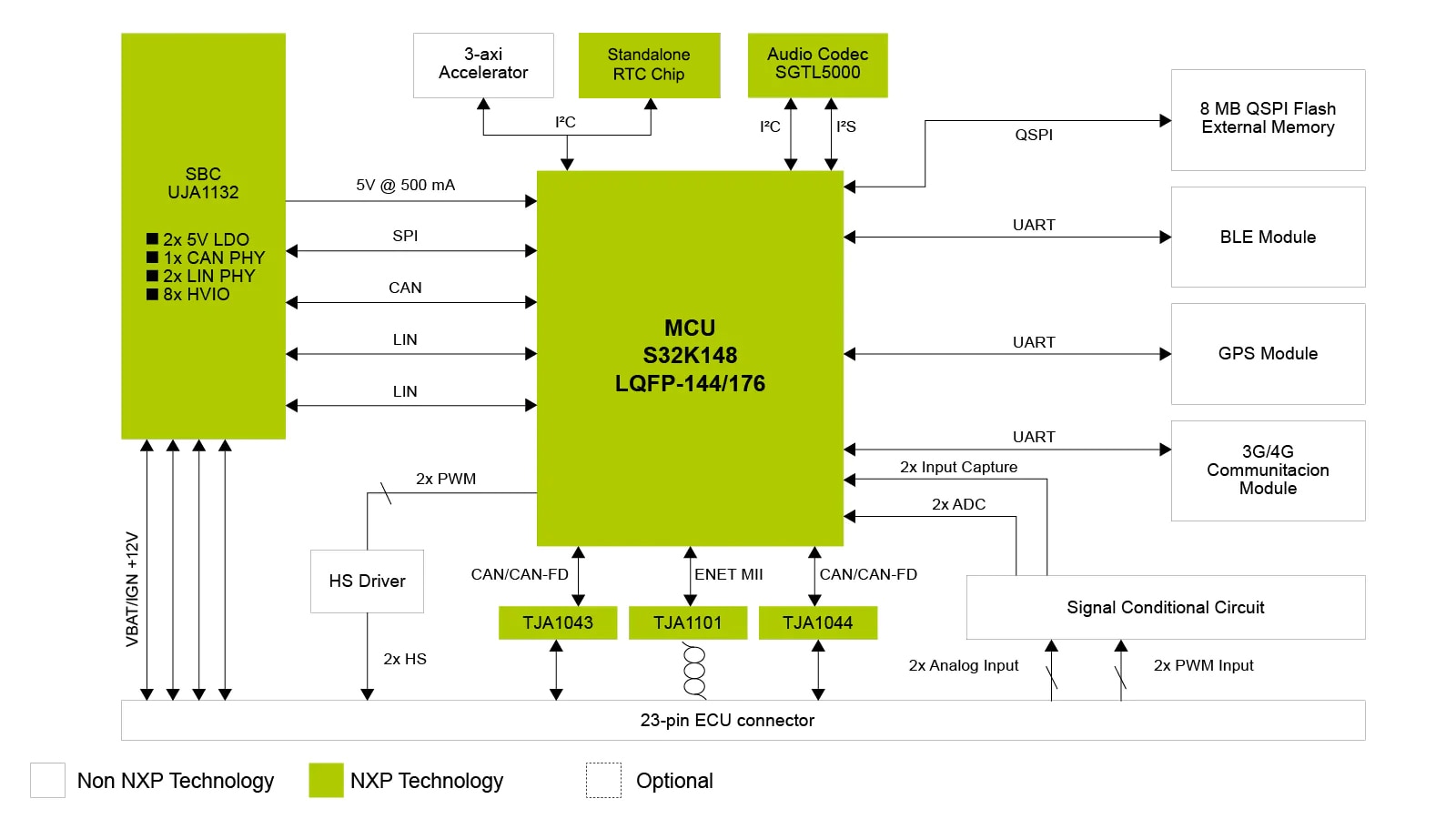

框图

选择框图:

T-BOX架构

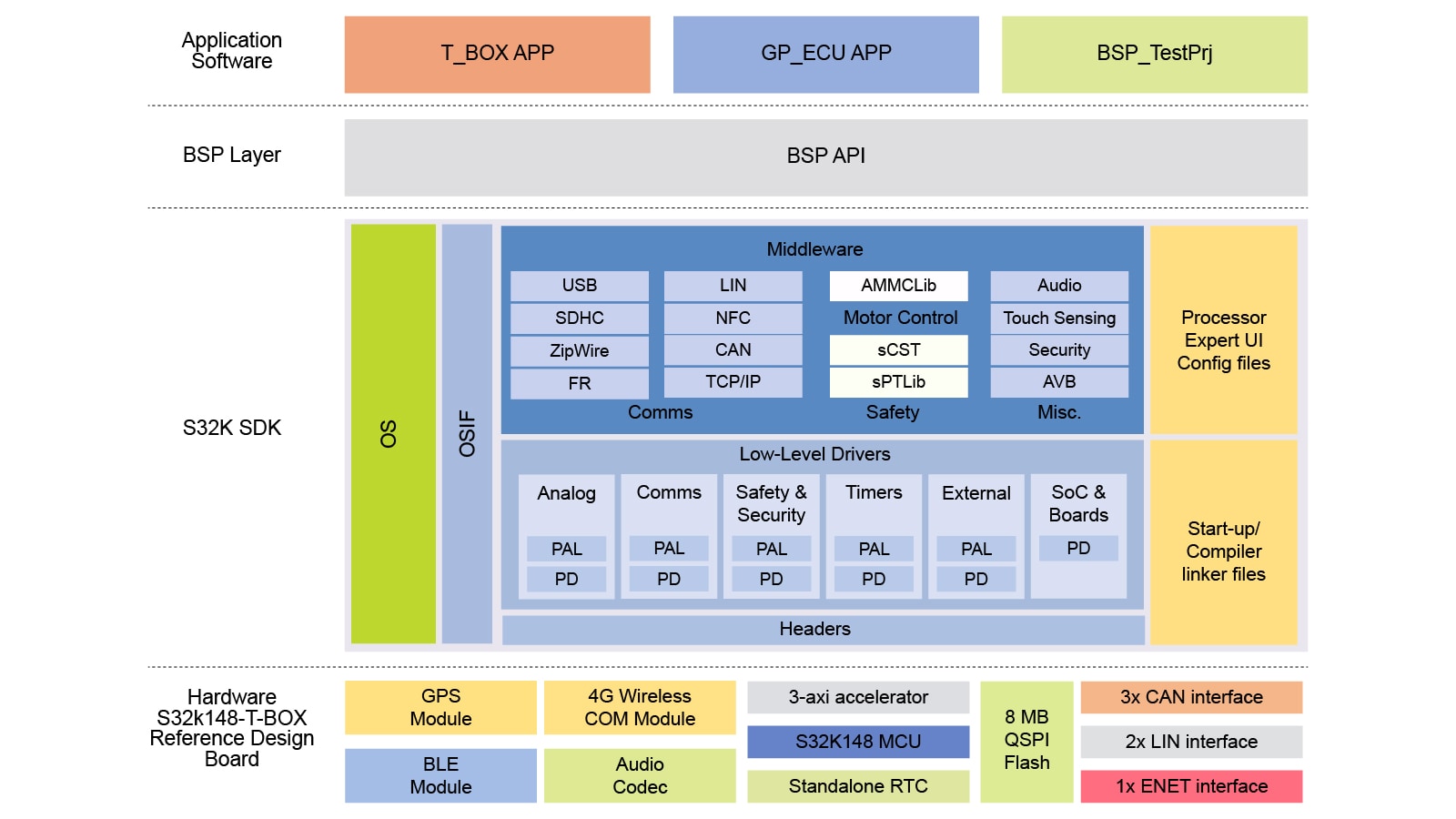

S32K148-T-BOX Automotive Solution Software Architecture

T-BOX解决方案

S32K148-T-BOX Automotive Telematics Box solution
获取框图PDF

支持的器件

处理器和微控制器

S32K汽车通用MCU

  • S32K1: S32K1汽车通用微控制器

电源管理

安全SBC

  • UJA113xHW: 降压/升压高速CAN/Dual LIN系统基础芯片系列
  • UJA113xA: Buck/Boost High-Speed CAN/LIN System Basis Chip

模拟及混合信号

实时时钟

  • PCA85073A: 具有告警功能和I²C总线的车用微型实时时钟/日历

接口

汽车以太网PHY

  • TJA1101: TJA1101B，符合IEEE 100BASE-T1标准的汽车以太网PHY收发器

3.3V/5V IO CAN收发器

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family
  • TJA1043: 具备待机和睡眠模式的高速CAN收发器

媒体和音频

音频转换器

  • SGTL5000: 超低功耗音频编解码器

特性

兼容性

  • Arduino® UNO兼容扩展接口

板载接口

  • 3个CAN接口，带CAN-FD
  • 3个UART接口：2个作为LIN重用，通过SBC-UJA113x
  • 1个基于100M的TX1汽车以太网接口，通过TJA1101
  • 1个 I²S音频编解码器可通过SGTL500进行扩展，并支持AVB评估

插件接口

  • 1个UART BLE模块
  • 1个UART GPS模块
  • 1个UART 3G/4G通信模块

连接器

  • 23引脚ECU连接器，传输外部I/O信号
  • 2个外部ADC和2个PWM输入，2个HS PWM输出

存储器

  • 扩展的8 MB QSPI NOR闪存

购买选项

S32K148-T-BOX-Image

点击展开

  • S32K148-T-BOX
    正常供应

  • S32K148 Automotive Telematics Box (T-Box).
