DEVKIT的电机控制Shield扩展板

DEVKIT-MOTORGD 正常供应

滚动图片以放大

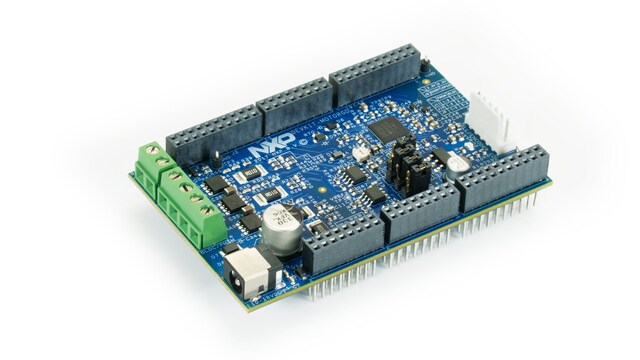

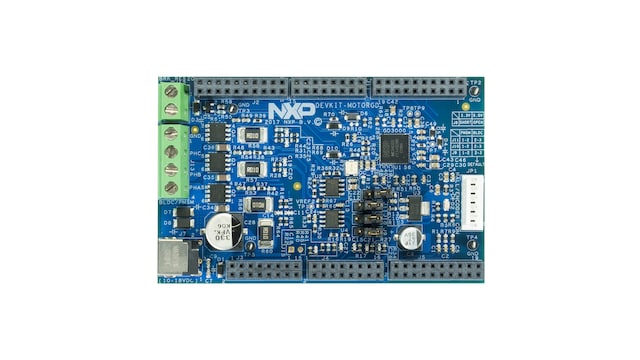

DEVKIT-MOTORGD是恩智浦为DEVKIT平台集成的电机控制Shield扩展板。该产品结合了FRDM-GD3000EVB和FRDM-PWRSTG的功能，适用于完整的汽车解决方案。DEVKIT-MOTORGD分别与S32K和MPC5744P、S32K144EVB-Q100和DEVKIT-MPC5744P等低成本评估板兼容，并且可驱动三相BLDC/PMSM电机。内置的霍尔/编码器接口意味着DEVKIT-MOTORGD可以支持有传感器和无传感器的电机控制应用。

除了DEVKIT-MOTORGD，恩智浦还提供了一个综合的电机控制软件套件。查看此产品页面以了解我们的支持产品。

产品详情

支持的器件

处理器和微控制器

S32K汽车通用MCU

  • S32K1: S32K1汽车通用微控制器

超高可靠性的MPC57xx MCU

  • MPC574xP: 超可靠的MPC574xP MCU，适用于汽车和工业安全应用

电源管理

BLDC，H桥，步进电机

  • GD3000: 3相无刷电机预驱动器

预驱动器

  • MC33937: 3相场效应晶体管预驱动器

特性

电源管理

  • 内置稳压器
  • 支持3相BLDC/PMSM电机
    • 输出参数：
      • 3相输出
      • 10-18 V
      • 5 A相电流（RMS）

连接

  • 10-18 V圆柱形连接器

工具和操作系统支持

  • Arduino®引脚兼容性
  • 霍尔/编码接口
  • GD3000 MOSFET栅极驱动器
  • 兼容S32K144EVB-Q100和DEVKIT-MPC5744P评估板
  • 推荐评估时使用45ZWN24-40 BLDC或Nanotec DB41M024030-A 电机

购买选项

DEVKIT-MOTORGD-Image

点击展开

  • DEVKIT-MOTORGD
    正常供应

  • DEVKIT for MOTOR CONTROL.

    • DEVKIT-MOTORGD电机控制Shield扩展板
  • $69.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 2
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
