i.MX 8M Plus系列专注于机器学习和视觉、高级多媒体以及具有高可靠性的工业自动化。它旨在满足智慧家庭、楼宇、城市和工业4.0应用的需求。

强大的4核或双核Arm^® Cortex^®-A53处理器，带有神经处理单元(NPU)，运行速率高达2.3 TOPS。
两个图像信号处理器(ISP)和两个摄像头输入，打造高效的先进视觉系统。
多媒体功能包括视频编码(包括h.265)和解码、3D/2D图形加速以及多种音频和语音功能。
通过Cortex-M7进行实时控制。采用CAN FD和双千兆以太网的强大控制网络，具有时间敏感网络(TSN)。
DRAM串联ECC具有较高的工业可靠性。

i.MX 8应用处理器是恩智浦EdgeVerse™ 边缘计算平台的一部分。

产品详情

框图

i.MX 8M Plus Block Diagram

i.MX 8M Plus Block Diagram

获取框图PDF

功能

多核处理和内存接口

4个或2个Cortex-A53，主频高达1.8 GHz
Cortex-M7高达800 MHz
32位DDR4和 LPDDR4，高达4.0GT/s

机器学习与视觉

神经处理单元(NPU)：提供2.3 TOPS
双图像信号处理器(ISP)：分辨率高达12MP，输入速率高达375M像素/s
摄像头接口：2个MIPI CSI

先进的多媒体和显示器

视频解码：1080p60、h.265 / 4、VP9、VP8
视频编码：1080p60、h.265/4
GPU: 16 GFLOPS (高精度) OpenGL^{^®} ES 3.1/3.0、Vulkan^®、Open CL^™ 1.2 FP、OpenVG^™ 1.1
音频：18x I2S TDM、DSD512、S/PDIF Tx + Rx、8通道PDM麦克风输入、eARC、ASRC
低功耗语音加速器: Cadence^® Tensilica^® HiFi 4 DSP @ 800 MHz
显示：MIPI-DSI、HDMI 2.0a Tx、LVDS (4/8-lane) Tx

高速接口

2个千兆以太网，具有AVB、IEEE 1588、EEE和1个w/ TSN
2个两用USB 3.0/2.0，带C型PHY
PCIe Gen 3
3个SDIO 3.0
2个CAN FD

工业可靠性

DDR串联ECC，用于LPDDR4和DDR4
14 FinFET工艺，软错误率低(SER)

操作系统

Linux^{^®}、Android^®、FreeRTOS

封装和温度

FCBGA，15x15 0.5 mm间距
消费电子(0 °C至95 °C Tj)
工业控制(-40 °C至105 °C Tj)

EdgeLock^® Assurance

i.MX 8M Plus应用处理器是EdgeLock Assurance计划的一部分，可满足行业标准，并采用恩智浦安全设计方法。

设计资源

设计文件

2 设计文件

^模型
BSDL file for i.MX 8M Plus

BSDL版本 0Mar 12, 2021 08:58:0061.9 KBIMX8MP_15X15

下载
^模型
i.MX 8M Plus 15x15 IBIS Model

ZIP版本 2Oct 20, 2020 09:25:00ibis_imx8mp_v2_20201023
请登录

下载

硬件

1-5 / 7 硬件

^{评估/开发板与系统}
i.MX 8M Plus应用处理器的4K MIPI摄像头亮点

MIPI-CAMERA
^{评估/开发板与系统}
i.MX 8M Plus评估套件支持功耗测量亮点

8MPLUSLPD4-PEVK
^{评估/开发板与系统}
i.MX 8M Plus应用处理器评估套件亮点

8MPLUSLPD4-EVK
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{评估/开发板与系统}
Maivin AI Vision Starter Kit

MAVK-SMART-8MPLUS-CAMERA
^{评估/开发板与系统}
i.MX 8音频板

MCIMX8M-AUD
^{完整解决方案}
基于i.MX 8M Plus的AI机器人平台

AI-ROBOT-PLATFORM
^{完整解决方案}
NavQPlus AI/ML配套计算机EVK，适用于移动机器人、ROS、地面站和摄像头

8MPNAVQ

1-5 / 67 硬件

^{评估/开发板与系统}
System on module IAC-IMX8MP-CM

IAC-IMX8MP-CM System on module,it adopts NXP i.MX8M Plus processor.The i.MX8M Plus is a powerful quad ARM Cortex-A53 processor with speed 1.6GHz and one ARM Cortex-M7 800...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold 合作伙伴
^{评估/开发板与系统}
EVK-JODY-W2

Evaluation Kit for JODY-W263

By u-blox AG Gold 合作伙伴
^{评估/开发板与系统}
Mallow Carrier Board新建

Product Design and Component selection are optimized to provide robustness in challenging environments while keeping the cost low. Long-term supported software and simple...

By Toradex® Platinum 合作伙伴
^{评估/开发板与系统}
Ka-Ro QSBASE4 Evaluation Kit

The QSBASE4 is a ready to use evaluation kit for all QS modules. The kit is sold without module. A socketed version of the desired module must be ordered separately.

By Ka-Ro electronics GmbH Gold 合作伙伴
^{评估/开发板与系统}
Verdin Development Board新建

With the Verdin Development Board, you can try out different power control concepts, from the simplest to the most advanced ones - including granular power control of eac...

By Toradex® Platinum 合作伙伴
^{评估/开发板与系统}
Ka-Ro TX8M Mini Development Kit

Development Kit includes: Ka-Ro TX8M SOM 10.1" LVDS Display with Cap touch MIPI-CSI Camera interface Power Supply and cables uBoot Bootloader and sources Linux BSP ...

By Ka-Ro electronics GmbH Gold 合作伙伴
^{评估/开发板与系统}
Starterkit PicoCore™MX8MP Linux

Extensive Starterkit with powerful Computer On Module (35x40mm) based on NXP i.MX 8M Plus (PicoCoreMX8MP) incl. Linux, baseboard, cable kit, LVDS display, and other acces...

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{评估/开发板与系统}
Development Board IAC-IMX8MP-Kit

IAC-IMX8MP-Kit Development Board,it adopts NXP i.MX8M Plus processor.The i.MX8M Plus is a powerful quad ARM Cortex-A53 processor with speed 1.6GHz and one ARM Cortex-M7 8...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold 合作伙伴
^{评估/开发板与系统}
i.MX 8M Plus SMARC Development Kit

i.MX 8M Plus SMARC Dev Kit includes i.MX 8MPlus SoM & compatible carrier card.The board is highly packed with all necessary onboard connectors (Ethernet, PCIe, USB, etc.)...

By iWave Systems Gold 合作伙伴
^{评估/开发板与系统}
Maivin AI Vision Starter Kit

The Maivin AI Vision Starter Kit is a modular AI smart camera platform built on NXP’s i.MX8MPlus Applications Processor and production grade hardware and software compone...

By AU-ZONE TECHNOLOGIES Gold 合作伙伴
^{硬件测试配件和调试器}
Arm ULINKpro

The ULINKpro debug and trace unit connects your PC's USB port to your target system and allows you to program, debug, and analyze your applications using its unique strea...

By Arm Platinum 合作伙伴
^{硬件测试配件和调试器}
AW-PU580

i.MX 8M Plus SoM.

By AzureWave Technologies, Inc. Gold 合作伙伴
^{硬件测试配件和调试器}
TRACE32® PowerTrace System for NXP Microcontrollers/Microprocessors

PowerTrace system provides full insights of what an embedded system is doing without impacting its real-time performance. It ensures bringing designs to market faster and...

By Lauterbach GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum 合作伙伴
^{硬件测试配件和调试器}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum 合作伙伴
^{硅设备/组件}
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold 合作伙伴
^{硅设备/组件}
uSD-M.2 Adapter: Interconnect for NXP i.MX RT/6/7/8

uSD-M.2 adapter board provides out-of-box experience for NXP i.MX with Murata’s M.2 Module Family enabled by Embedded Artists; interfacing WLAN/BT-signals including WLAN-...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
^模块
MAYA-W271-00B

Compact Wi-Fi 6 + Bluetooth 5.2 + 802.15.4 host-based multiradio modules low-power, secure tri-radio 2 antenna pins - Wi-Fi 2.4/5GHz and BT/BLE+802.15.4 MAYA family dime...

By u-blox AG Gold 合作伙伴
^模块
CMP9611

Dual-Band Wi-Fi 6, BT 5.2, SDIO/UART, AP/STA/Direct, BLE/Classic, Linux/FreeRTOS, Coexistence, Certified/FCC/IC/CE, Antenna/Connector/RF Pin, Commercial/Industrial, LGA o...

By California Eastern Laboratories Gold 合作伙伴
^模块
SpaceSOM-8Mplus

The SpaceSOM-8Mmini family is a SODIM-sized SoM based on the NXP iMX8M plus application processor which features a heterogeneous quad cores ARM Cortex-A53 together with a...

By SoMLabs Gold 合作伙伴
^模块
MAYA-W161-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 2 antenna pins - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
LILY-W132-00B

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
^模块
MAYA-W160-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 2 u.fl antenna connectors - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
LILY-W131-00B

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
^模块
MAYA-W166-01B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 antenna pin - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
MAYA-W276-00B

Compact Wi-Fi 6 + Bluetooth 5.2 + 802.15.4 host-based multiradio modules low-power, secure tri-radio embedded antenna / pin - Wi-Fi 2.4/5GHz and BT/BLE + 802.15.4 MAYA f...

By u-blox AG Gold 合作伙伴
^模块
MAYA-W166-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 embedded PCB antenna - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^{嵌入式板子解决方案}
i.MX 8M Plus OSM LGA Module

i.MX 8M Plus Q/QL/D CPU with 64-bit ARMv8 Architecture NPU with up to 2.3 TOP/s Neural Network performance Upto 8GB LPDDR4 Memory IEEE 802.11a/b/g/n/ac/ax Wi-Fi & Blue...

By iWave Systems Gold 合作伙伴
^{嵌入式板子解决方案}
ORCA SOM - i.MX8M Plus新建

ORCA SOM is our solution for edge applications where the balance between the performances, the power consumption are important. Where Linux, RTOS and NPU are needed ORCA ...

By DAVE Embedded Systems Gold 合作伙伴
^{嵌入式板子解决方案}
SmarCore MX8M Plus

Engicam introduces a new module based on i.MX8M Plus processor in the SMARC standard pinout 2.1.

By Engicam Gold 合作伙伴
^{嵌入式板子解决方案}
i.MX8M Mini SOM

i.MX8M Mini SOM offer a compact System-on-Module platform with robust processing, energy efficiency and AI acceleration using 2803S Neural Accelerator – designed for next...

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板子解决方案}
AW-PU530

i.MX 8M Mini + 88W8997 SoM.

By AzureWave Technologies, Inc. Gold 合作伙伴
^{嵌入式板子解决方案}

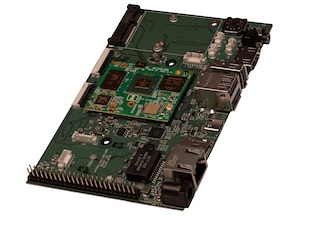

Nitrogen8M Plus SOM
