i.MX 8M系列应用处理器基于Arm^® Cortex^®-A53和Cortex-M4内核，具有先进的音频、语音和视频处理功能，适用于从消费类家用音频到工业楼宇自动化及移动计算机等广泛应用。

支持高品质视频，提供全4K UltraHD分辨率和HDR (Dolby Vision、HDR10和HLG)
提供高水平的专业音频保真度，具有20多个音频通道，每个通道384KHz
DSD512音频功能
适用于无风扇运行，散热系统成本低，电池使用寿命较长
灵活的存储器选项
最新的高速接口可提供灵活连接
恩智浦的10年和15年产品长期供货计划提供全面支持

i.MX 8应用处理器是恩智浦EdgeVerse™ 边缘计算平台的一部分。

产品详情

框图

i.MX 8M Block Diagram

i.MX 8M Block Diagram

获取框图PDF

特征

多核处理

四核Arm Cortex-A53; Cortex-M4F

GPU

OpenGL^{^®} ES 3.1、OpenGL^® 3.0、Vulkan^®、Open CL^™ 1.2

双独立显示接口

MIPI-DSI (4通道); HDMI 2.0a

视频播放

4Kp60高动态范围(h.265, VP9), 4Kp30 (h.264), 1080p60 (MPEG2, MPEG4p2, VC1, VP8, RV9, AVS/AVS+, h.263, DiVX), MJPEG - 8x8

音频

6个I²S/SAI (20+ 通道，每个通道32位@384 kHz)；S/PDIF Tx/Rx；DSD512

双摄像头接口

MIPI-CSI (每个4通道)

外部存储器接口

LPDDR4, DDR4, DDR3L；带XIP的Quad SPI

USB

带PHY的双USB 3.0 C型

PCIe

提供L1子状态的双PCIe，具有从低功耗模式快速唤醒功能

以太网

具有支持AVB和EEE的千兆以太网控制器

操作系统

Linux^{^®} OS、Android^™、Windows 10 IoT Core、FreeRTOS^®

温度

消费电子(0°C至95°C Tj)；工业控制(-40°C 至105°C Tj)

封装

FCBGA，0.65 mm间距

EdgeLock Assurance

The i.MX 8M Dual / QuadLite / Quad applications processors, part of the EdgeLock Assurance program, are designed to meet industry standards and follows NXP's security-by-design approach.

设计资源

设计文件

2 设计文件

^模型
IMX8MQ-IBIS Model

ZIP版本 20180306Mar 9, 2020 16:27:005044 KBIMX8MQ-IBIS
请登录

下载
^模型
BSDL file for i.MX 8M

BSDL版本 1Aug 6, 2019 11:53:0068.7 KBIMX8M_BSDL
请登录

下载

硬件

5 硬件

^{评估板与开发板}
i.MX 8M应用处理器评估套件亮点

MCIMX8M-EVK
^{评估板与开发板}

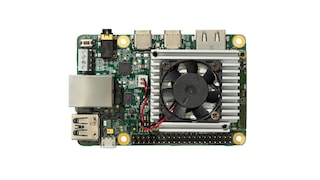

Coral开发板TPU
