i.MX 8M Nano_ Arm Cortex A53_Cortex M7

滚动图片以放大

恩智浦的i.MX 8M Nano系列应用处理器提供了高性价比的集成和实惠的性能，适用于需要图形、视觉、语音控制、智能感应和通用处理功能的智能、互联的节能设备。

i.MX 8M Nano系列包含*i.MX 8M Nano UltraLite (*目前处于样品阶段)、i.MX 8M Nano Lite和i.MX 8M Nano。点击下面的按钮，查看该系列产品的重要功能和优异点：

重要功能和优异点

i.MX 8M Nano系列应用处理器搭载4个Arm®Cortex-A53内核和1个Arm®Cortex-M7内核，与主流i.MX 8M Mini应用处理器引脚兼容，并且可扩展。凭借商业和工业级认证以及恩智浦产品长期供货计划支持，i.MX 8M Nano系列处理器可用于任何通用工业和物联网应用。

i.MX 8应用处理器是恩智浦EdgeVerse™ 边缘计算平台的一部分。

数据手册

参考手册

产品详情

框图

i.MX 8M Nano Block Diagram

获取框图PDF

特征

多核处理

4个Cortex-A53内核平台，每核运行频率高达1.5GHz
32 kB L1-I缓存/ 32 kB L1-D缓存
512 kB L2缓存
1个Cortex-M7内核，运行频率高达750MHz
512 kB片上RAM (OCRAM)

GPU

3D GPU (2个着色器，OpenGL^{^®} ES2.0/3.0/3.1，OpenCL^™ 1.2，Vulkan^®)
- *i.MX 8M Nano UltraLite和8M Nano Lite不支持上述功能

显示屏接口

1个MIPI DSI (4通道)，带PHY

*i.MX 8M Nano UltraLite不支持上述功能

摄像头接口

1个MIPI CSI (4通道)，带PHY

音频

4个SAI (6Tx + 6Rx外部I2S通道)
8路PDM输入
硬件异步采样率转换(ASRC)

外部存储器接口

16位DRAM接口(LPDDR4-3200. DDR4-2400、DDR3L-1600)
8位NAND闪存控制器支持原始MLC/SLC (BCH62, ONFI3.2)
eMMC 5.0/5.1，SPI NOR，FlexSPI (XIP)

USB

1个USB 2.0 OTG控制器，带有集成PHY

以太网

1个千兆以太网(MAC)，带AVB和IEEE 1588、Energy Efficient Ethernet (EEE)，适用于低功耗设备

操作系统

Linux、Android、FreeRTOS

温度

消费电子(0°C至95°C Tj)
工业控制(-40°C至105°C Tj)

封装

i.MX 8M Nano和Nano Lite：FCBGA，14 x 14 0.5mm间距
i.MX 8M Nano UltraLite：FCBGA，11 x 11 0.5mm间距

重要功能和优异点

**产品处于样品阶段 **

	i.MX 8M Nano UltraLite应用处理器	i.MX 8M Nano Lite应用处理器	i.MX 8M Nano应用处理器
处理器	1个/ 2个 / 4个Cortex-A53 (1.4 GHz)	1个/ 2个/ 4个Cortex-A53 (1.4 GHz / 1.5 GHz)
处理器	Cortex-M7 (750 MHz)
显示器	无MIPI-DSI	4通道MIPI-DSI，带PHY
GPU	无GPU	无GPU	3D GPU：2个着色器， OpenGL^® ES 3.1， OpenCL 1.2， OpenGL^® Vulkan^®
软件	Linux、FreeRTOS^®	Linux、Android、FreeRTOS^®
封装大小	11 x 11	14 x 14

EdgeLock Assurance

i.MX 8M Nano应用处理器是EdgeLock Assurance计划的一部分，旨在满足行业标准，并采用恩智浦安全设计方法。

了解详情

设计资源

设计文件

3 设计文件

^模型
IBIS Model for i.MX 8M Nano UltraLite (11x11 package)

ZIP版本 1May 3, 2021 16:40:009.2 MBIMX-8M-NANO-ULTRALITE-IBIS-ZIP

下载
^模型
i.MX 8M Nano UltraLite (11X11) BSDL

ZIP版本 0Jun 4, 2021 09:37:00649.8 KBIMX8M-NANO-ULTRALITE-11X11-BSDL
请登录

下载
^模型
i.MX 8M Nano 14x14 IBIS Model

ZIP版本 3Jan 8, 2021 08:09:008.7 MBIMX8MN-14x14

下载

硬件

1-5 / 6 硬件

^{评估板与开发板}

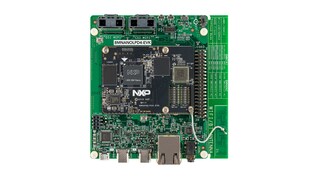

i.MX 8M Nano应用处理器评估套件亮点

8MNANOD4-EVK
^{评估板与开发板}
i.MX 8M Nano UltraLite应用处理器评估套件亮点

8MNANOD3L-EVK
^{评估板与开发板}
i.MX 8音频板

MCIMX8M-AUD
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{开发硬件-其他}
Murata NXP 88W8987 Wi-Fi^® 5 (802.11ac) + Bluetooth^® chipset-based module: Type 1ZM

MURATA-TYPE-1ZM
^{开发硬件-其他}
Azurewave Wi-Fi^® 5 (802.11ac) + Bluetooth^® chipset-based M.2 evaluation board: AW-CM358MA

AW-CM358
^{开发硬件-其他}
Eval kit for JODY-W263 Wi-Fi^®/Bluetooth^® module

UB-JODY-W263

展开

1-5 / 51 硬件

^{评估板与开发板}
conga-QKIT/ARM

This complete kit provides the ability to start evaluating Qseven® ARM modules immediately -Qseven Starter Kit for ARM -All accessories out of the box -Immediate evalu...

By congatec Gold 合作伙伴
^{评估板与开发板}
EVK-JODY-W2

Evaluation Kit for JODY-W263

By u-blox AG Gold 合作伙伴
^{评估板与开发板}
conga-SKIT/ARM i.MX8 SMARC 2.0 Development Kit

Starter Kit for congatec SMARC 2.0 Development -Starter Kit for SMARC 2.0 Development -All accessories out of the box -Immediate evaluation for SMARC 2.0

By congatec Gold 合作伙伴
^{评估板与开发板}
Starterkit PicoCore™MX8MN Linux

Extensive Starterkit with secure, industrial COM based on NXP i.MX 8M Nano running on Linux. It comes with a baseboard, display, and cable kit. Other accessories are opt...

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{评估板与开发板}
Ka-Ro QS8M QSBASE2 Evaluation Kit

Low-cost board for rapid evaluation and development of the QS8M Family. All functions and peripherals of the QS8M are available solder pads. Schematics and bill of mate...

By Ka-Ro electronics GmbH Gold 合作伙伴
^{评估板与开发板}

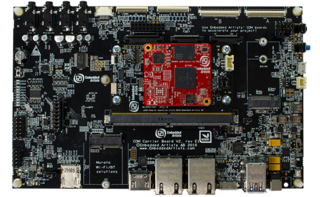

iMX8M Nano uCOM Developer's Kit

Embedded Artists' iMX8M Nano uCOM Developer's Kit lets you get up-and-running quickly with the EA iMX8M Nano uCOM Board.

By Embedded Artists AB Gold 合作伙伴
^{评估板与开发板}
i.MX 8MNano SODIMM Development Kit

i.MX 8MNano SODIMM Development Platform incorporates i.MX 8MNano SODIMM SOM & compatible Carrier Card. It is highly packed with all necessary onboard connectors (HDMI, SA...

By iWave Systems Gold 合作伙伴
^{硬件测试配件和调试器}
Arm ULINKpro

The ULINKpro debug and trace unit connects your PC's USB port to your target system and allows you to program, debug, and analyze your applications using its unique strea...

By Arm Platinum 合作伙伴
^{硬件测试配件和调试器}
TRACE32 JTAG/SWD Debugger for ARM

Lauterbach is making world class microprocessor development tools since 1979. TRACE32 debug and real-time trace solutions support the whole range of NXP processors.

By Lauterbach Gold 合作伙伴
^{硬件测试配件和调试器}
MIPI-DSI to LVDS Adapter

This adapter allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket.

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum 合作伙伴
^{硬件测试配件和调试器}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum 合作伙伴
^{补充芯片器件/组件}
Ka-Ro TX8M Nano Computer-on-Module

The Ka-Ro TX8M Nano is one representative of the successful TX SOM Family with i.MX 8M SOCs. It is a cost-competitive upgrade for i.MX 6 designs and ideal for new produc...

By Ka-Ro electronics GmbH Gold 合作伙伴
^{补充芯片器件/组件}
Ka-Ro QS8M Nano Computer-on-Module

The Ka-Ro QS8M Nano is the smallest SOM available for NXP processors. At just 27mm square and 2.3mm high, it offers processing power in a cost effective and power effic...

By Ka-Ro electronics GmbH Gold 合作伙伴
^{补充芯片器件/组件}
Wi-Fi 4 + BT 5.0 Radio Module - PAN9026

The PAN9026 is a dual band 2.4/5 GHz 802.11 a/b/g/n Wi-Fi radio module with integrated Bluetooth® BR/EDR/LE, specifically designed for highly integrated an...

By Panasonic Industrial Devices Europe GmbH Gold 合作伙伴
^{补充芯片器件/组件}
PIXI-9377

PIXI-9377 is a fully certified (FCC, TELEC, IC, CE, RCM) dual-band Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5 SDIO module optimized for cost, size and performance. It is bas...

By TechNexion Ltd Gold 合作伙伴
^{补充芯片器件/组件}
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold 合作伙伴
^{补充芯片器件/组件}
uSD-M.2 Adapter: Interconnect for NXP i.MX RT/6/7/8

uSD-M.2 adapter board provides out-of-box experience for NXP i.MX with Murata’s M.2 Module Family enabled by Embedded Artists; interfacing WLAN/BT-signals including WLAN-...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
^模块
MAYA-W271-00B

Compact Wi-Fi 6 + Bluetooth 5.2 + 802.15.4 host-based multiradio modules low-power, secure tri-radio 2 antenna pins - Wi-Fi 2.4/5GHz and BT/BLE+802.15.4 MAYA family dime...

By u-blox AG Gold 合作伙伴
^模块
CMP9611

Dual-Band Wi-Fi 6, BT 5.2, SDIO/UART, AP/STA/Direct, BLE/Classic, Linux/FreeRTOS, Coexistence, Certified/FCC/IC/CE, Antenna/Connector/RF Pin, Commercial/Industrial, LGA o...

By California Eastern Laboratories Gold 合作伙伴
^模块
vSECC.single

vSECC.single is a communication controller to operate one charging connector. It can be mounted on a DIN rail and is ideal to use in central charging cabinets with single...

By Vector Informatik GmbH Gold 合作伙伴
^模块
Wi-Fi 5 + BT 5.2 Radio Module - PAN9028

The PAN9028 is a dual band 2.4/5 GHz 802.11 a/b/g/n Wi-Fi radio module with integrated Bluetooth® BR/EDR/LE, specifically designed for integrated applications where highe...

By Panasonic Industrial Devices Europe GmbH Gold 合作伙伴
^模块
MAYA-W161-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 2 antenna pins - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
LILY-W132-00B

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
^模块
MAYA-W160-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 2 u.fl antenna connectors - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
LILY-W131-00B

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
^模块
i.MX8M mini SOM

High Performance Low Power SOM with NXP ARM® MX8M Mini/ Nano, Cortex-A53 Dual/Quad core up to 1.5GHz Processor

By Shenzhen Huameishi Tech Co., Ltd. Gold 合作伙伴
^模块
MAYA-W166-01B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 antenna pin - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
i.MX8MP SOM Development Carrier Board

Carrier Board Compliant with SMARC™ v2.0 for SOM and SMARC module application development

By Shenzhen Huameishi Tech Co., Ltd. Gold 合作伙伴
^模块
vSECC.single Board

vSECC.single Board is a communication board for the fast development of smart DC wallboxes and charging stations. The board is designed to sit on top of customer electron...

By Vector Informatik GmbH Gold 合作伙伴
^模块
MAYA-W166-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 embedded PCB antenna - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^{嵌入式板解决方案}

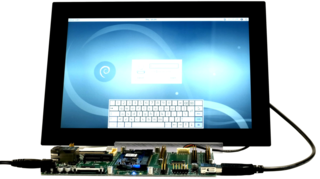

Ka-Ro i.MX 8M Nano Development Kit

This Development Kit is ideal for customers developing with the NXP i.MX 8M Nano processor. With a pre-installed Debian Linux image, application development can begin i...

By Ka-Ro electronics GmbH Gold 合作伙伴
^{嵌入式板解决方案}
Verdin iMX8M Nano

The Verdin SoM family is available in two configurations at the moment. The off-the-shelf SoM will feature the i.MX 8M Mini SoC. The SoM featuring the i.MX 8M Nano SoC wi...

By Toradex® Platinum 合作伙伴
^{嵌入式板解决方案}
TQMa8MxNL

Embedded Cortex®-A53 module based on i.MX8M Nano with enhanced Audio properties

By TQ-Systems GmbH Gold 合作伙伴
^{嵌入式板解决方案}
VAR-SOM-MX8M-NANO

A highly scalable, low power, cost-effective SoM solution based on i.MX8M Nano 1.5GHz Quad Cortex-A53 + M7 with GPU, certified WiFi/BT, GbE and USB2.0. A member of the VA...

By Variscite Platinum 合作伙伴
^{嵌入式板解决方案}
ConnectCore 8M Nano

Highly-integrated system-on-module based on the NXP i.MX8M Nano that streamlines the development of a wide range of industrial and medical applications.

By Digi International Gold 合作伙伴
^{嵌入式板解决方案}
i.MX8M Mini SOM

i.MX8M Mini SOM offer a compact System-on-Module platform with robust processing, energy efficiency and AI acceleration using 2803S Neural Accelerator – designed for next...

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板解决方案}
AW-PU530

i.MX 8M Mini + 88W8997 SoM.

By AzureWave Technologies, Inc. Gold 合作伙伴
^{嵌入式板解决方案}
iMX8M Nano uCOM Board

The EA iMX8M Nano uCOM Board provides a quick and easy solution for implementing a high-performance ARM quad-core Cortex-A53/M7 based design. The tiny (42x45mm) board sup...

By Embedded Artists AB Gold 合作伙伴
^{嵌入式板解决方案}
SolidSense Compact Edge Gateway

SolidSense N8 compact is a low cost, deployment focused edge IoT gateway allowing you to create and manage your infrastructure for enterprise IoT applications.

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板解决方案}
PicoCore™MX8MN

Tiny multi media COM (35x40mm) with WLAN/BT and LVDS based on NXP i.MX8M Nano

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{嵌入式板解决方案}
MaaXBoard Nano

A single board computer based on the i.MX 8M Nano MPU. It is enabled with four digital microphones and an on-board audio jack to enable voice and audio applications.

By Avnet Gold 合作伙伴
^{嵌入式板解决方案}
Myon II

Micro CPU module with NXP i.MX 8M Mini & i.MX8M Nano Applications Processors

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
EDM-G-IMX8M-NANO

EDM-G-IMX8M-NANO is an extreme performance, low-power SoM featuring NXP i.MX8M NANO applications processor based on ARM Cortex-A53 and Cortex-M7 architecture for edge com...

By TechNexion Ltd Gold 合作伙伴
^{嵌入式板解决方案}
i.MX 8MNano SODIMM SOM (System on Module)

i.MX8M Nano Q/QL/D/DL/S/SL core SODIMM SOM, Upto Quad ARM Cortex-A53@1.5 GHz & single ARM Cortex-M7@750MHz. Heterogeneous Multicore Processing Architecture GC7000UL with ...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}
MSC SM2S-IMX8NANO

MSC SM2S-IMX8NANO SMARC 2.1 family is highly scalable and equipped with i.MX 8M Nano Application Processors. The module integrates 1/2/4 core ARM Cortex-A53 processors wi...

By Avnet Embedded (formerly MSC) Gold 合作伙伴
^{嵌入式板解决方案}
i.MX 8M Nano µQseven SOM

• i.MX 8M Nano SoC based Qseven v2.1 Compatible SOM • GPU & Display Controller support on SoC • SOM supports Gbps Ethernet PHY, USB2.0 HUB, WiFi5 & BT5.0, MIPI to HDMI/...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}

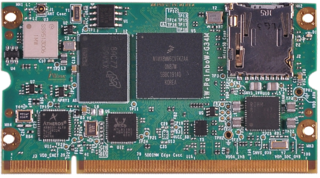

i.MX 8M Nano SODIMM SOM
