MPC5604E以太网视频开发套件

MPC5604EKIT 试生产

滚动图片以放大

基于恩智浦MPC5604E MCU的以太网视频开发套件适用于新一代汽车和通用市场摄像头应用。

新一代摄像头应用可通过采用双绞线的以太网进行视频传输，解决了LVDS同轴电缆成本高昂的弊端。恩智浦MPC5604E MCU具有高性价比并且尺寸小巧，支持在汽车和通用市场的各种新型应用中加入摄像头传感器。

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC560xE: 超可靠的32位MCU，适用于汽车ADAS和工业以太网应用

功能

连接

  • Broadcom以太网PHY，支持BroadReach®和标准100 Mbit/s以太网(BCM89810和BCM5241)

调试

  • 标准的14引脚ONCE JTAG调试接头

传感器

  • Aptina图像传感器和ISP (图像信号处理器)子卡(AP0132+AP0101)
  • 通过PTP实时时钟实现摄像头同步(IEEE 1588；软件升级为通用PTP IEEE 802.1，预计截止到2016年第4季度)

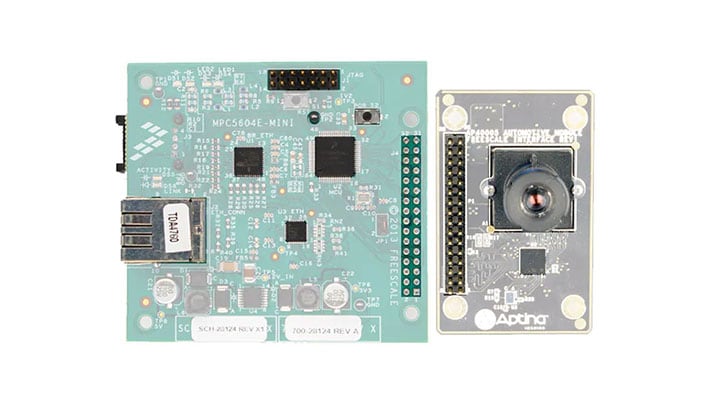

  • 面向视频动态JPEG®压缩和以太网传输的恩智浦MPC5604E微型开发板
  • 恩智浦以太网摄像头流传输软件(仅用于开发)
