MPC5604E评估板

MPC5604EEVB64 正常供应

滚动图片以放大

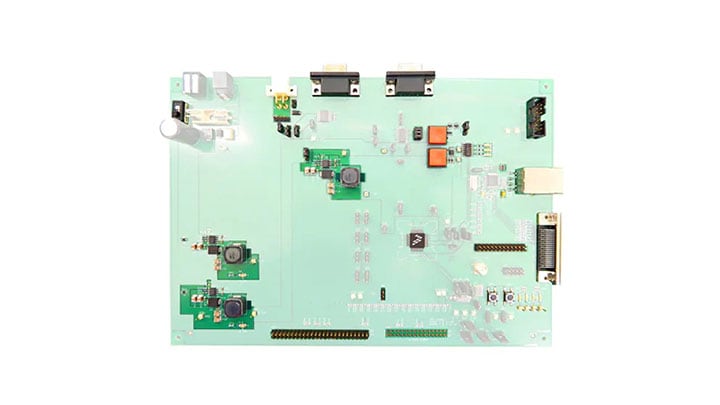

The NXP® MPC5604E Evaluation Board for automotive safety and chassis control applications contains P&E debugger and all power supply cables.

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC560xE: 超可靠的32位MCU，适用于汽车ADAS和工业以太网应用

特征

数据连接

  • 板载以太网物理接口+MII精简版连接器
  • FlexCAN通道通过DB9连接器连接至原型区，可轻松集成新增的CAN物理接口
  • LINFLEX Molex Connector and 0.1" 4-pin header are available

电源管理

  • 12 V直流电源输入圆柱形接头

调试

  • 标准的14引脚ONCE JTAG调试接头

音频

  • Serial Audio Interface connected to the Audio connector supporting NXP® Sahara SGTL5000 daughter card
  • 连接到Omnivision连接器的视频编码器包，支持Omnivision摄像头评估板

购买选项

MPC5604EEVB64-Image

点击展开

  • MPC5604EEVB64
    正常供应

  • Evaluation Kit for Qorivva MPC5604E, Ethernet, MII, video and audio connectors, CAN, LIN.

    • MPC5604EEVB板
    • P&E调试器和所有电源线
    • 10个分流器
    • 20个可在未来重新配置的零欧姆电阻
    • CD: P&E Power Architecture® NEXUS驱动器和资源CD
    • 文档
    • 恩智浦保修卡
  • $525.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
LFTAJ56EE2T-Image

点击展开

  • LFTAJ56EE2T
    正常供应

  • 64 Pin target adapter for Qorivva MPC5604E.

  • $160.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
