i.MX RT500 跨界MCU_ Arm Cortex-M33__NXP 半导体

i.MX RT500是一个跨界MCU系列，通过将图形引擎和简化的Cadence^® Tensilica^® Fusion F1 DSP内核与下一代Cortex-M33内核相结合，为低功耗HMI应用进行了优化。i.MX RT500系列跨界MCU旨在通过安全、功率优化的嵌入式处理器充分挖掘基于显示器的应用的潜力。

产品详情

框图

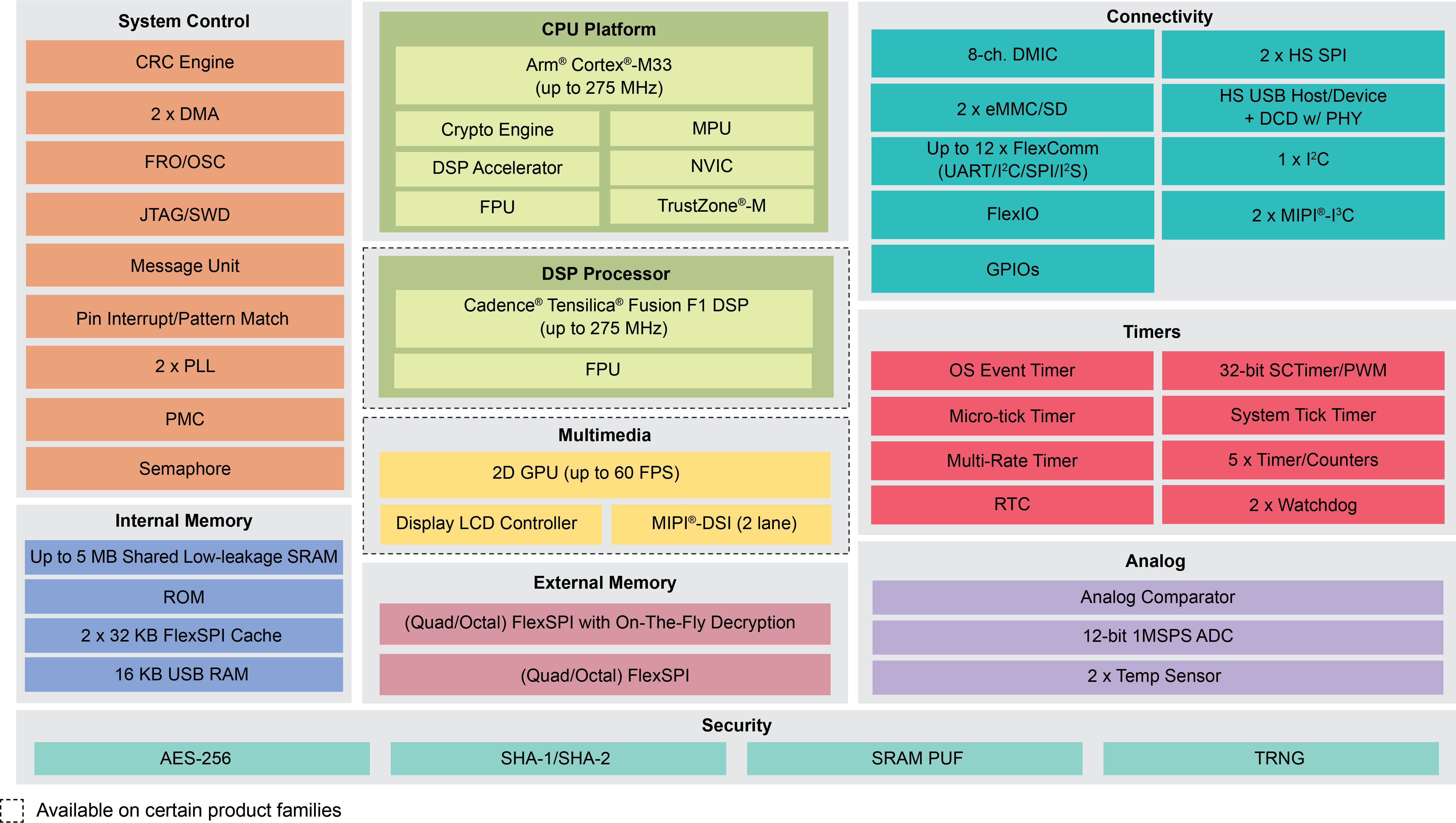

i.MX RT500 Crossover MCU Block Diagram

i.MX RT500 Crossover MCU Block Diagram

获取框图PDF

特征

Cortex-M33内核，运行频率高达200MHz

Arm TrustZone^{^®}用于保护资产
支持8个区域的Cortex-M33内置存储器保护单元(MPU)
Cortex-M33的两个协处理器
- PowerQuad硬件加速器用于(固定和浮点运算单元) DSP功能
- CASPER加解密协处理器将对某些不对称加密算法所需的各种函数进行硬件加速

高度优化的Cadence® Tensilica® Fusion F1 DSP 处理内核, 运行频率高达200 MHz

硬件浮点单元；每周期多达4个单精度IEEE浮点运算MAC

片上存储器

高达5 MB系统SRAM，CPU和所有DMA引擎均可对其进行访问
2个32 KB FlexSPI缓存

安全特性

安全隔离：Armv8-M的Arm^{^®} TrustZone^®技术安全执行环境，通过硬件引擎进行对称密钥隔离
在启动ROM中实现安全启动支持，提供不可变的信任根
安全存储：基于物理不可克隆功能（PUF）的密钥存储，片外闪存的动态AES解密（OTFAD），用于代码存储
安全调试：基于证书的调试身份验证机制
安全更新支持具有可靠性（RSA签名）和机密性（AES-CTR加密）保护的固件更新
硬件加密加速器
- 具有256位密钥强度的对称密码(AES)
- 非对称密码加速
- 具有256位熵的TRNG
- 具有SHA-256和SHA-1的哈希引擎
安全身份：128位通用唯一标识符(UUID)和256位复合设备标识符

数字外设

两个DMA引擎，每个引擎有32个通道
Quad/Octal SPI闪存带有动态描述
两个SD/eMMC存储卡接口一个支持eMMC 5.0，HS400/DDR操作
USB高速主机/器件控制器，带片上PHY
高达12个可配置通用串行接口模块（FlexComm接口），可配置为SPI/I2C/I2S/UART
1个支持50 MHz运行频率的高速SPI接口
两个I3C总线接口
1个数字麦克风接口，支持多达8个通道
