消费电子、工业和医疗产品变得越来越智能，并且越来越多的产品具有复杂的、与智能手机类似的GUI。恩智浦通过广泛且可扩展的产品组合、集成显示控制器和图形加速器以及支持恩智浦各种微控制器的多个图形库和工具，简化了优化嵌入式GUI的开发。MCUXpresso SDK 中配备使能软件技术合作伙伴的评估版解决方案，应用代码中心也提供了示例，可实现快速评估并轻松过渡到完整开发。

软件详情

特性

基本信息

大部分图形中间件都可在“应用代码中心”获取。
MCUXpresso SDK包含多个图形中间件选项
功能齐全的示例应用实现轻松的解决方案评估。
多个恩智浦器件系列都针对丰富的图形应用进行了优化，并集成了硬件加速功能。

支持的器件

展开全部

处理器和微控制器
- Arm 微控制器
  - i.MX RT跨界MCU
  - 基于Arm^® Cortex^®-M4内核的Kinetis^® K2x USB微控制器(MCU)
    - K20_50
    - K20_72
    - K20_100
    - K20_120
    - K21_50
    - K21_120
    - K22_50
    - K22_100
    - K22_120
    - K24_120
    - K26_180
    - K27_150
    - K28_150
  - LPC54000 系列：基于 Arm^® Cortex^®-M4内核的高效微控制器(MCU)
    - LPC540XX
    - LPC546XX
  - LPC5500系列：基于Arm^® Cortex^® -M33、面向大众市场的微控制器系列产品，采用40nm嵌入式闪存技术
    - LPC552x-S2x
    - LPC55S6x
  - MCX N系列微控制器
    - MCX-N23X
    - MCX-N94-N54-N53-N52-N24
无线连接
- 无线网络+蓝牙
  - Wi-Fi^® +蓝牙^® + 802.15.4
    - RW612

图形生态合作体系库和示例

恩智浦携手部分合作伙伴，提供多种解决方案，帮助开发复杂程度各不相同的嵌入式GUI。以下解决方案通过MCUXpresso SDK、应用代码中心或每个合作伙伴的定制版本提供。这些解决方案自带了即用型软件示例，可帮助您完成深入评估并开始设计。

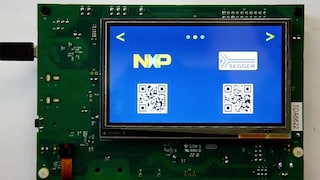

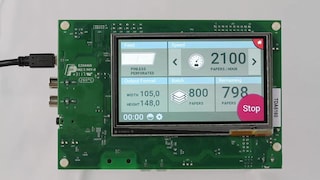

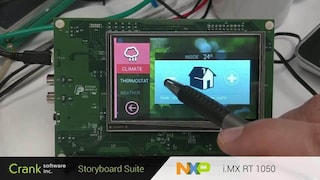

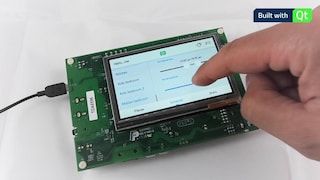

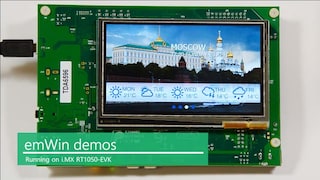

	Crank\|AMETEK	TARA Systems	LVGL	Segger	Altia	Qt Company	MicroEJ	Slint
合作伙伴解决方案	Storyboard	Embedded Wizard	LVGL开源图形库	恩智浦emWin库	Altia Design	Qt For MCUs	MicroEJ GUI解决方案	Slint
合作伙伴
支持的设备	i.MX RT500 i.MX RT1040 i.MX RT1050 i.MX RT106x i.MX RT1170	K2x、K6x i.MX RT595 i.MX RT685 i.MX RT101x i.MX RT1040 i.MX RT1050 i.MX RT106x i.MX RT117x LPC54S/540xx LPC546xx LPC55Sxx	MCX N K2x、K6x RW612 i.MX RT595 i.MX RT685 i.MX RT101x i.MX RT102x i.MX RT1040 i.MX RT1050 i.MX RT106x i.MX RT116x i.MX RT117x LPC54S/540xx LPC546xx LPC55Sxx	MCX N K2x、K6x RW612 i.MX RT595 i.MX RT685 i.MX RT101x i.MX RT1050 i.MX RT106x i.MX RT116x i.MX RT117x LPC54S/540xx LPC546xx LPC55Sxx	i.MX RT1050 i.MX RT106x i.MX RT1160 i.MX RT1170	i.MX RT500 i.MX RT1050 i.MX RT106x i.MX RT1170	i.MX RT500 i.MX RT1050 LPC546xx	i.MX RT1170
发布选项	定制	定制	MCUXpresso SDK、应用代码中心	MCUXpresso SDK	定制	定制	定制	定制
网页	Crank \| AMETEK	TARA Systems GmbH	LVGL Kft	SEGGER Microcontroller GmbH	Altia	Qt Company	MicroEJ	Slint

按开发板下载MCUXpresso SDK

使用以下链接构建和下载 SDK，包括图形库。SDK Builder还能帮助您集成适用于其他板的图形和库示例。

下载

快速参考恩智浦软件类型.

1 下载

样品及快速入门软件
MCUXpresso SDK - SDK Builder

EXTERNAL版本 1.0Mar 2, 2017 13:05:00MCUXPRESSO-SDK

下载

注意: 推荐在电脑端下载软件，体验更佳。
