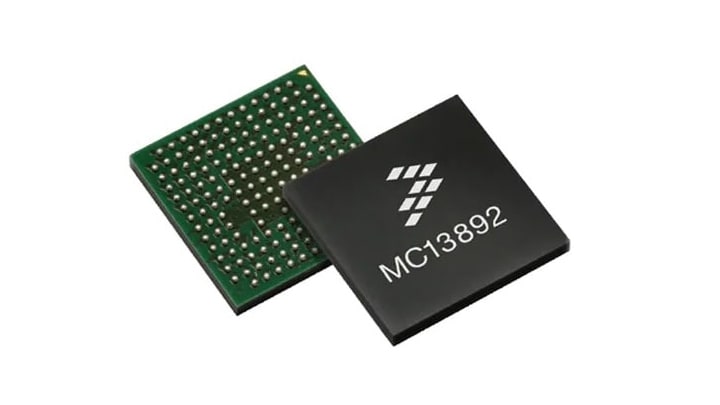

面向i.MX35/51的电源管理集成电路(PMIC)

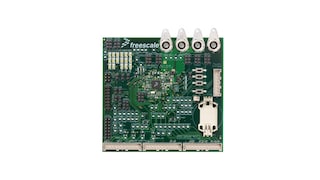

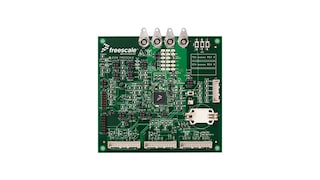

MC13892 正常供应

滚动图片以放大

MC13892是面向i.MX51、i.MX37、i.MX3和i.MX27应用处理器的PMIC，适用于个人媒体播放器和导航设备。

  • 将许多零散的功能集成到一个IC中
  • 包括一个电池充电系统，支持USB充电和壁插充电
  • 提供功率控制逻辑，具有处理器接口和事件检测、实时时钟和重要的振荡器电路，带纽扣电池备份与支持，用于配套处理器IC器件的外部安全RTC。
  • 可对接i.MX处理器或任何其他需要高度集成的双向电源管理、I/O和通信设备的器件。

产品详情

框图

恩智浦MC13892 PMIC

MC13892 Block Diagram
获取框图PDF

特性

主要特性

  • 包括壁插充电和USB充电的电池充电系统
  • 用于监测电池和其他输入的10位ADC，加上一个库仑计数器支持模块
  • 4个可调节的输出降压转换器，可直接为处理器内核和存储器供电
  • 12个带内部和外部导通装置的可调输出LDO
  • 两个升压转换器，为LCD背光和RGB LED供电
  • 用于显示器和键盘的串行背光驱动，以及RGB LED驱动
  • 电源控制逻辑，带处理器接口和事件检测
  • 实时时钟和晶振电路，带纽扣电池备份，支持配套系统处理器IC上的外部安全实时时钟
  • 触摸屏界面
  • 输出电流：2 A
  • SPI / I²C总线接口，用于控制和寄存器访问
  • 支持i.MX27、i.MX35、i.MX37和i.MX51 MCU

产品长期供货计划
