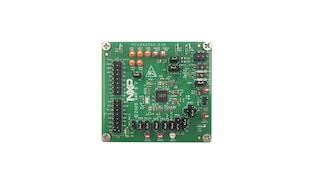

i.MX 8M Mini/Nano/Plus的电源管理IC(PMIC)

PCA9450 正常供应

滚动图片以放大

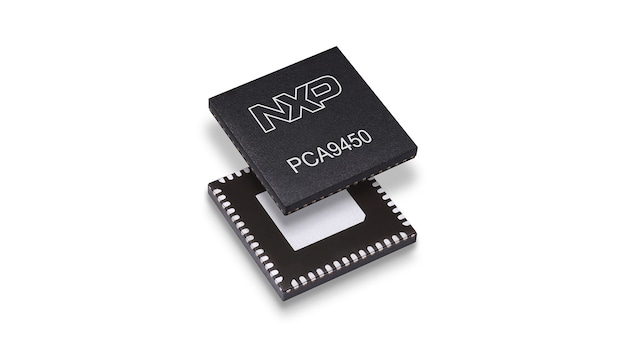

PCA9450是一款单芯片电源管理IC(PMIC)，专用于在单芯锂离子电池和锂聚合物电池便携式应用以及5V适配器非便携式应用中支持i.MX 8M系列处理器。

该器件提供6个高效降压稳压器、5个LDO、1个400mA负载开关，2通道电平转换器和32.768KHz晶振驱动器。3个降压稳压器支持动态电压调节(DVS)功能以及可编程的上升和下降时间，这些降压稳压器支持远程检测以补偿负载的IR下降。该器件的工作环境温度范围为-40°C至105°C。

产品详情

特性

高效降压稳压器

  • 3个3A降压稳压器，具有DVS功能和遥测功能
  • PCA9450A——3个3A降压稳压器
  • PCA9450B——两个3A降压稳压器
  • PCA9450C——双相可配置的6A降压稳压器
  • 1个3A降压稳压器
  • 两个2A降压稳压器

线性稳压器

  • 两个10mA LDO
  • 1个150mA LDO
  • 1个200mA LDO
  • 1个300mA LDO

一般特性

  • 带主动放电的400mA负载开关
  • 32.768kHz晶振缓冲输出
  • 电平转换器
  • Fm+ 1MHz I²C接口
  • 输出电流：3A、6A
  • 支持i.MX 8M Mini、i.MX 8MNano、i.MX 8M Nano和i.MX 8M Plus MCU
  • I²C接口和输入控制

电源控制IO

  • 电源开/关控制
  • 待机/运行模式控制

ESD防护

  • 人体模型(HBM) : +/- 2000V
  • 充电设备型号(CDM) : +/-500V

封装

  • 7mmx7mm，56引脚HVQFN，0.4mm间距
