PF8121电源管理IC评估板

KITPF8121FRDMEVM 正常供应

滚动图片以放大

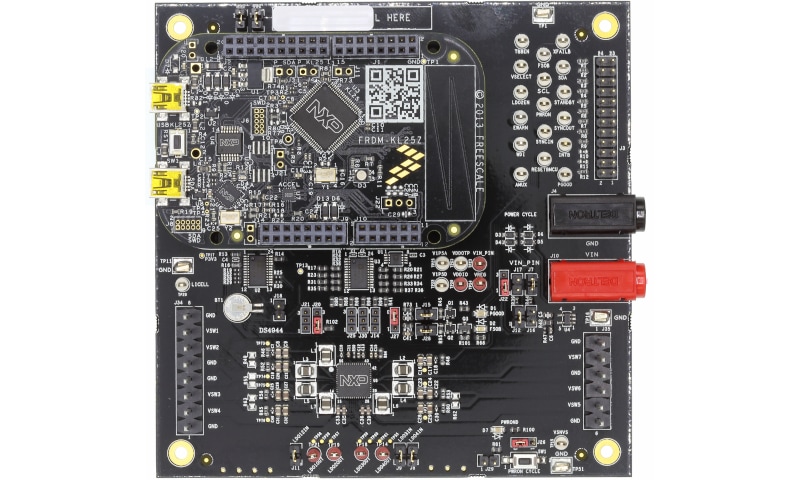

KITPF8121FRDMEVM是采用PF8121能源管理IC的客户评估板。该套件集成了完全评估推荐能源管理集成电路所需的所有硬件。

PMIC评估板集成了基于FRDM-KL25Z freedom板的通信桥接器，可与FlexGUI软件接口连接，完全配置和控制PF8121 PMIC。

产品详情

支持的器件

电源管理

PMIC

  • PF8121: 适用于高性能消费电子应用的12通道电源管理集成电路（PMIC）

功能

系统特性

  • 工作输入电压范围：2.5 V至5.5 V
  • 通过FRDM-KL25Z接口进行USB到I²C通信
  • 高达1.0 MHz I²C通信
  • 可选硬线默认的PMIC配置或OTP/TBB工作
  • 通过PMIC和/或系统AMUX进行先进的系统监测/诊断
  • 领导者/跟随者接口连接器，支持多PMIC
  • 板载I/O稳压器，具有1.8 V/3.3 V可选输出电压

PMIC特性

  • 多达7个具有多相功能的开关稳压器
  • 4个LDO稳压器，可选择开关模式操作
  • 可编程输出电压和电流限制
  • 具有可选扩频的可编程开关频率
  • 带可编程纽扣电池充电器的RTC电源
  • 电压监测电路
  • 系统看门狗监测

购买选项

KITPF8121FRDMEVM-Image

点击展开

  • KITPF8121FRDMEVM
    正常供应

  • Evaluation Board for PF8121 Power Management IC.

    • 置于防静电袋中并经过组装和测试的KITPF8121FRDMEVM，以及预编程的FRDM-KL25Z微控制器板
    • 3.0英尺USB-STD A转USB-B-mini线缆
    • 快速入门指南
  • $228.85 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
