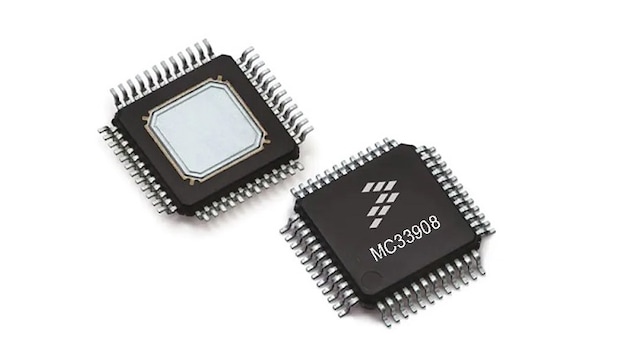

Safe System Basis Chip with Buck and Boost DC/DC up to 1.5 A on Vcore

MC33908
正常供应

滚动图片以放大

恩智浦MC33908系统基础芯片(SBC)能够为MCU供电，并通过DC/DC开关稳压器、线性稳压器和超低功耗节能模式来优化能耗。特性：

  • 功能安全高级措施
  • 可用于控制和诊断MCU的串行外设接口(SPI)
  • 集成了CAN和LIN物理接口，符合ISO11898-2、-5、LIN2.2、2.1/J2602-2标准以及针对EMC(电磁兼容性)和ESD(静电释放)的最新汽车OEM标准
  • 一系列集成的安全功能，例如关键模拟参数监测、一个故障安全状态机和一个高级看门狗，使用双核锁步MCU能够降低软件复杂性

框图

MC33907和MC33908

MC33907 and MC33908 Block Diagram
获取框图PDF

功能

能源管理单元

  • 灵活的DC/DC预稳压器，支持降压或升降压
  • 可选升压，可提高启动期间的系统可用性
  • 0.5至2A的多路输出电源
  • DC/DC稳压器，可为MCU内核提供高达1.5A的电源电流
  • MCU I/O专用的5V/3.3V线性稳压器
  • 辅助负载专用的线性稳压器
  • 结合超低功耗模式的多唤醒源：CAN、LIN、I/O、电流检测等
  • 电池反接保护前后的电池检测
  • 检测关键信号的模拟多路复用器

功能安全措施

  • 与故障安全输出关联的增强型安全模块
  • 专为ASIL D应用而设计(FMEDA、安全手册)
  • 安全的SPI接口
  • 用于唤醒和安全保护的可配置I/O

稳定可靠的物理层

  • ISO11898-2、-5 CAN高速物理接口
  • LIN 2.2/2.1，J2602-2物理接口
  • 高EMC抗扰性和ESD稳定性
