PF3000编程板

KITPF3000FRDMPGM
正常供应

滚动图片以放大

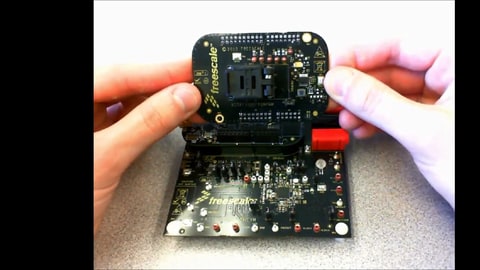

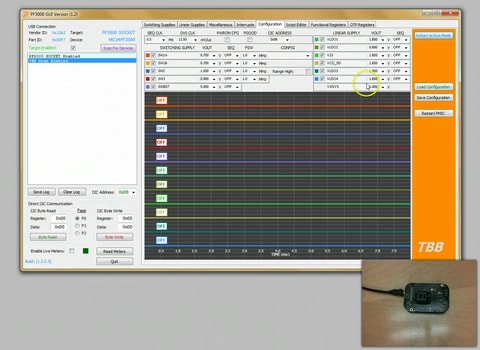

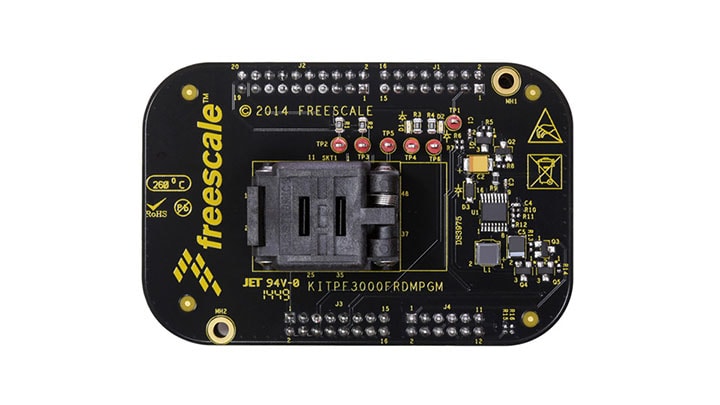

KITPF3000FRDMPGM编程板是一个易于使用的电路板，允许用户对PF3000电源管理IC进行编程。该编程板集成了流行的KL25Z Freedom电路板。Freedom电路板作为GUI与PF3000之间的接口。KL25Z Freedom电路板中的模数转换器(ADC)通过GUI监控调节器的电压。

产品详情

支持的器件

电源管理

PMIC

  • PF3000: 适用于i.MX6和i.MX7应用处理器的12通道可配置PMIC

处理器和微控制器

i.MX 6处理器

  • i.MX6UL: i.MX 6UltraLite处理器 - 低功耗，安全，Arm® Cortex®-A7内核

KL系列Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB超低功耗微控制器(MCU)，基于Arm® Cortex®-M0+内核

特征

电源管理

  • PF3000 电源管理IC的插口
  • 集成式KL25Z Freedom开发板通过PC进行监测和控制

用户组件

  • 绿色LED指示电源良好
  • 红色LED指示正在编程

购买选项

KITPF3000FRDMPGM-Image

点击展开

  • KITPF3000FRDMPGM
    正常供应

  • Evaluation Kit - PF3000 Programmer board.

    • KITPF3000FRDMPGM硬件
    • FRDM-KL25Z硬件(预编程)
    • 线缆，USB A-M至B-M Mini
    • 快速参考指南
  • $188.29 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
