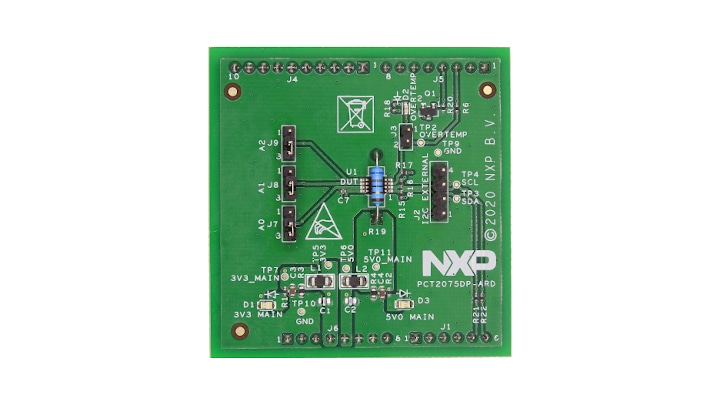

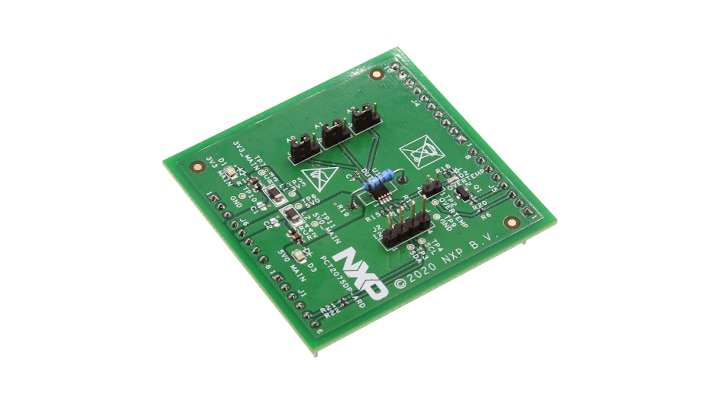

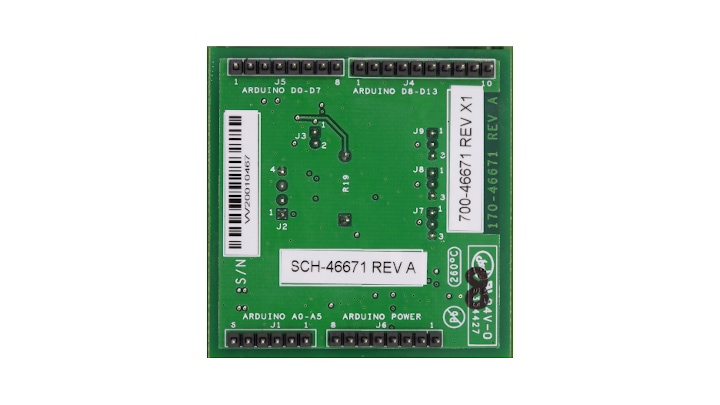

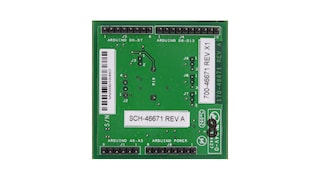

Arduino Shield

PCT2075DP-ARD 正常供应

滚动图片以放大

在与Arduino R3引脚布局兼容的板上, PCT2075DP Arduino Shield具有大多数温度传感器功能。图形界面允许用户轻松探索温度传感器的不同功能。

此外，用户可以找到嵌入式驱动程序和演示应用作为参考代码，快速入门。

支持的器件

传感器

I3C/I²C数字温度传感器

  • PCT2075: I2C总线Fm+, 精度为1℃, 数字温度传感器和热看门狗

特征

Power supply

  • Supply voltage: 2.7 V to 5.5 V
  • Low current consumption in shut-down mode(<1.0uA)

Interface

  • Frequency range 20 kHz to 1 MHz with SMBus time-out to prevent hanging up the bus
  • 1 MHz Fast-mode Plus 30 mA SDA drive allows more devices on the same bus but is backward compatible to Fast-mode and Standard-mode

Features

  • Pin-for-pin replacement for LM75 series but allows up to 27 devices on the bus
  • 11-bit ADC that offers a temperature resolution of 0.125°C
  • Temperature accuracy of:
    • ±1°C (max.) from -25°C to +100°C
    • ±2°C (max.) from -55°C to +125°C
  • Programmable temperature threshold and hysteresis set points during operation

Package

  • Small 8-pin package types: SO8, TSSOP8 and 2 mm x 3 mm HWSON8
  • Small 6-pin package type: TSOP6

购买选项

PCT2075DP-ARD-Image

点击展开

  • PCT2075DP-ARD
    正常供应

  • PCT2075DP-ARD Arduino® Shield - Temperature Sensors.

  • Arduino Shield规格板上有PCT2075DP I²C总线Fm+，精度为1 ℃，数字温度传感器和热看门狗。

  • $162.50 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 38
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
