NTS0304EUK-ARD电平转换器评估板

NTS0304EUK-ARD

滚动图片以放大

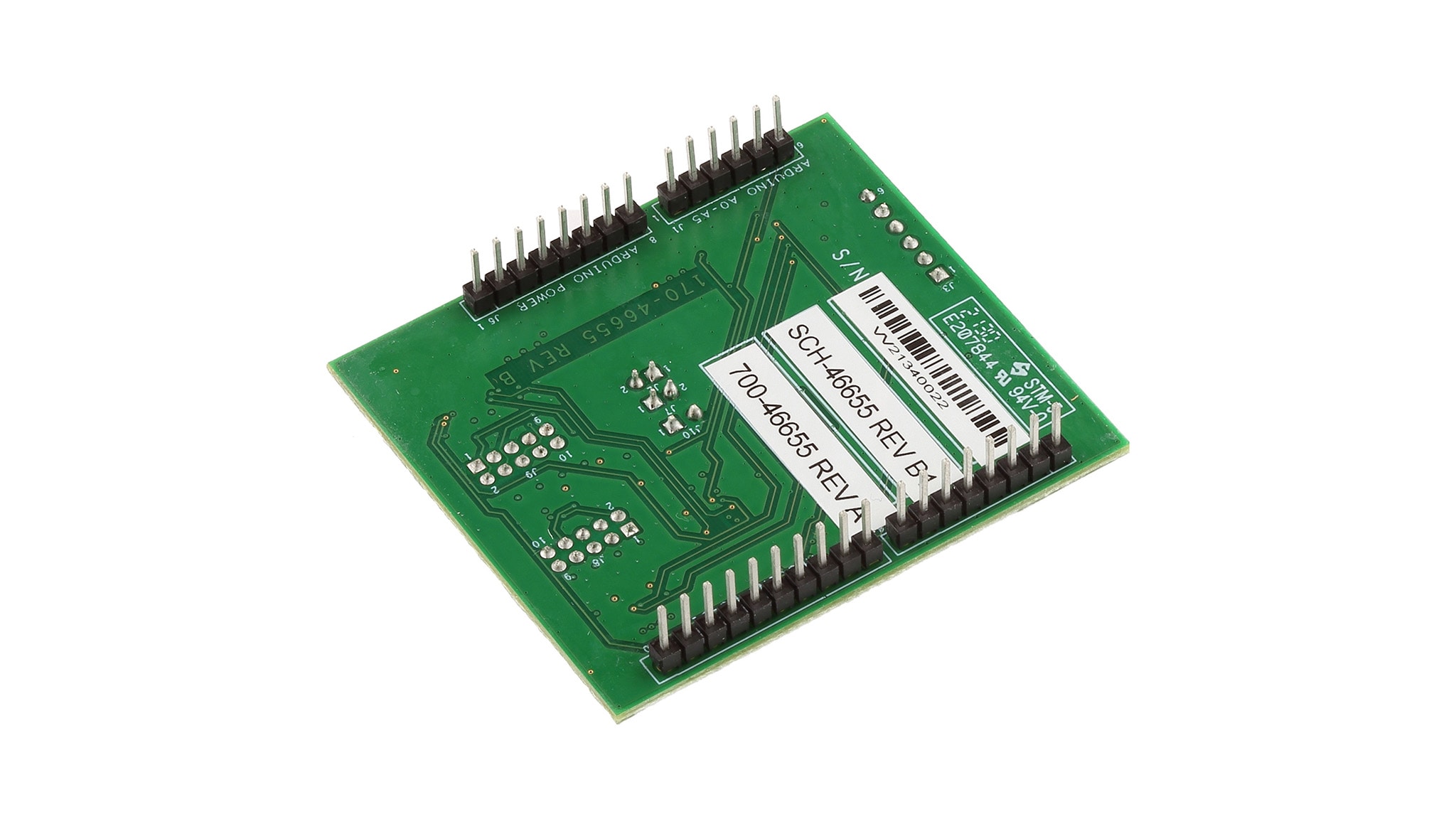

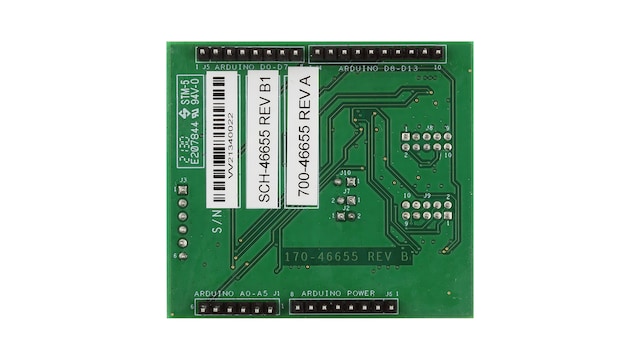

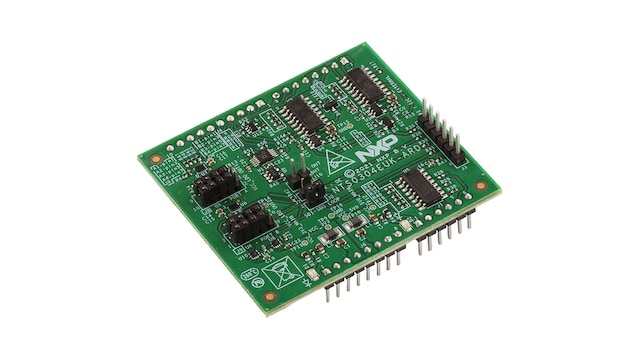

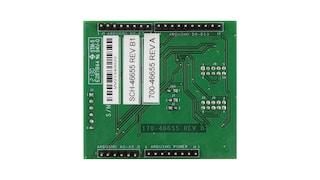

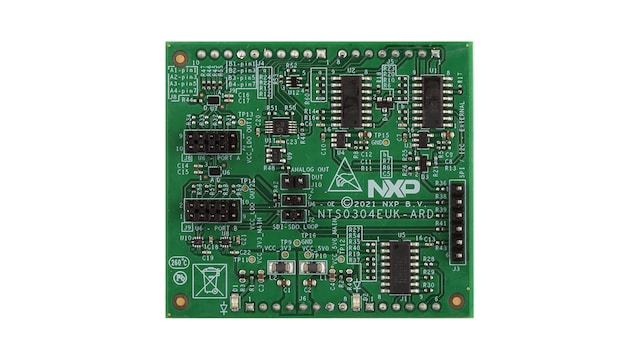

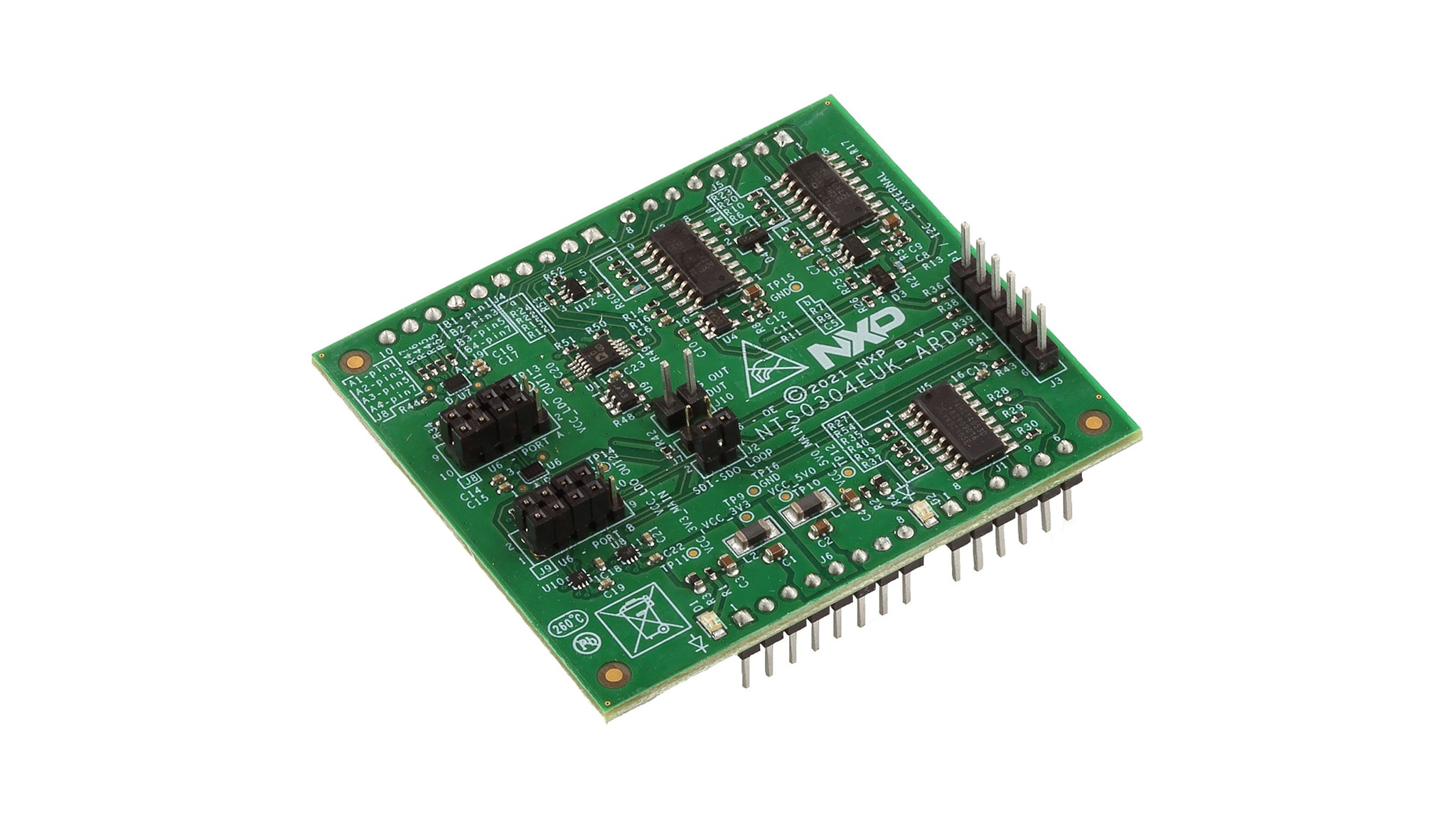

NTS0304EUK-ARD评估板是一块配备Arduino端口的子板，用于轻松测试和设计4位双电源转换收发器NTS0304E IC，该收发器具有开漏和自动方向感应功能。该评估板完全兼容IMXRT1050 EVK、LPCXpresso55S69(LPC55S69-ECK)和i.MX 8M Mini PDDR4 EVK(8MMINILPD4-EVK、8MMINID4-EVK)，包括GUI软件控制。此外，该评估板可以连接到任何带Arduino端口的设备上。

支持的器件

模拟及混合信号

电压电平转换器

  • NTS0304E: 4位双电源转换收发器；开漏；自动方向感应

特性

低压双电源4位双向电平移位器

  • VCC(A)可以接受0.95V至3.6V之间的电压供电。VCC(B)可以接受1.65V至5.5V之间的电压供电

自动方向感应

  • 器件可自动将方向从A切换到B或从B切换到A，无需方向控制引脚。

集成式单触发电路

  • 驱动大电容负载，减少振铃和过冲

高数据速率

  • 开漏：2Mbit/s
  • 推挽速率：20Mbit/s

工业温度范围

  • -40°C至+125°C

集成8KV IEC61000-4-2，4级ESD保护

  • 无需外部ESD保护组件

购买选项

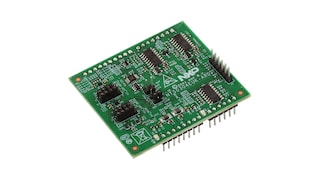

NTS0304EUK-ARD-Image

点击展开

  • NTS0304EUK-ARD
    正常供应

  • NTS0304EUK-ARD Level Shifter Evaluation Board.

  • 套件包含：

    • 完成组装和测试的评估板，放在防静电袋中
    • 快速入门指南
  • $22.22 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 11
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
