PCA85263ATL-ARD评估板

PCF85263ATL-ARD 正常供应

滚动图片以放大

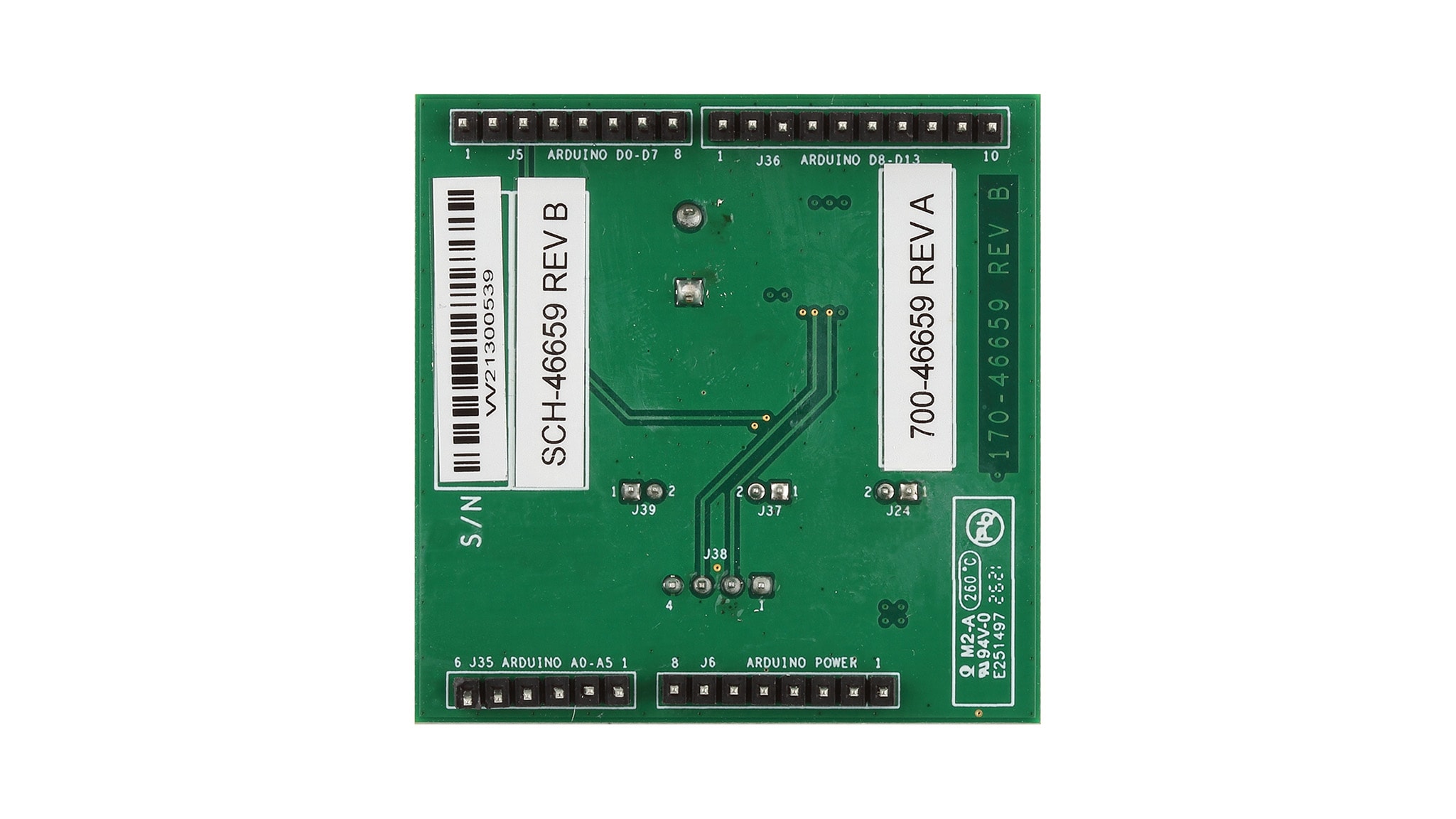

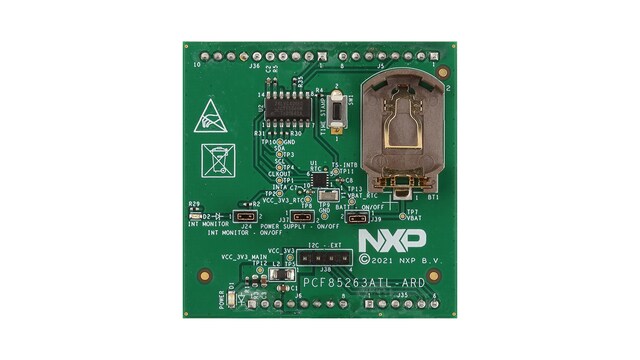

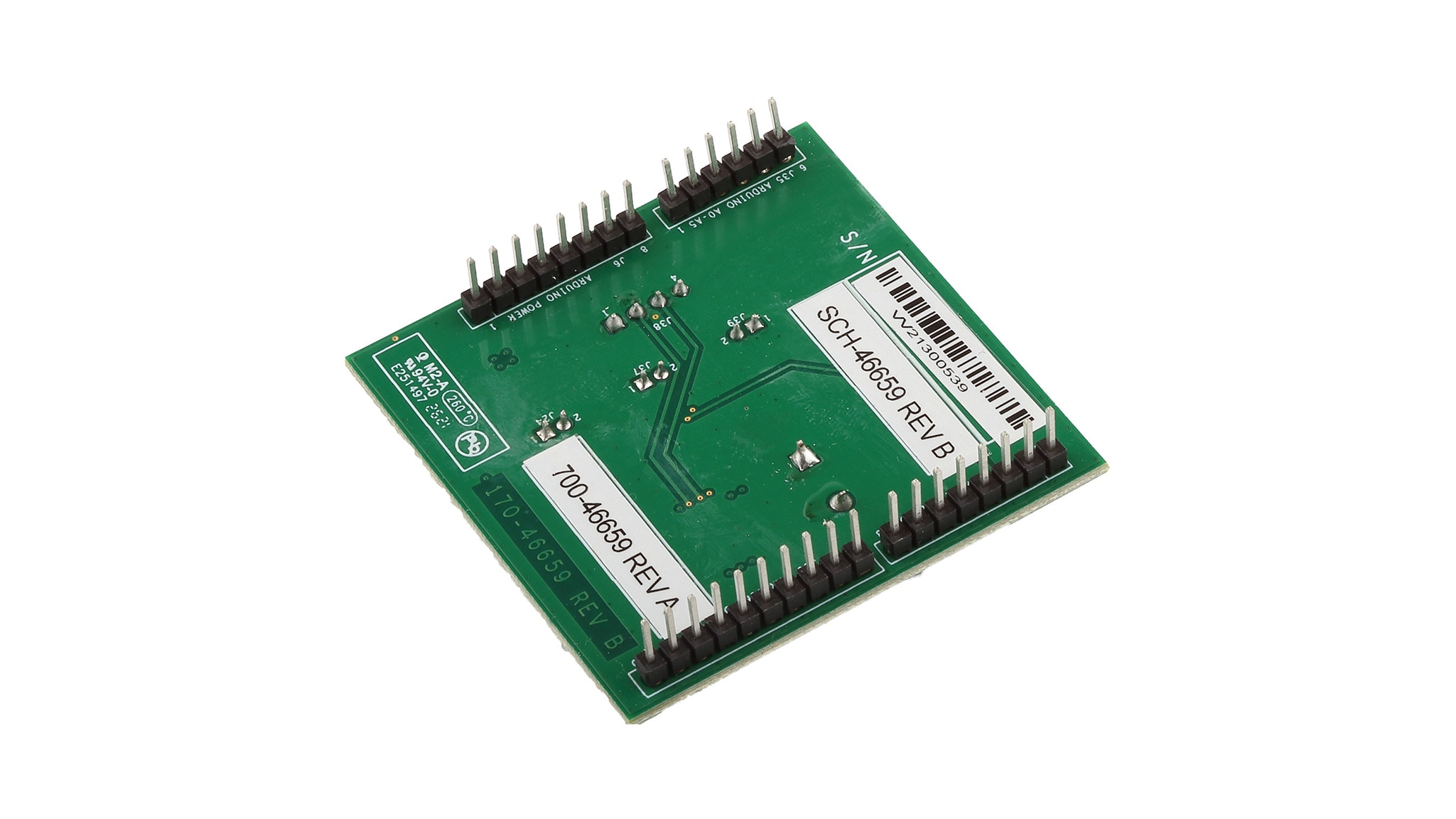

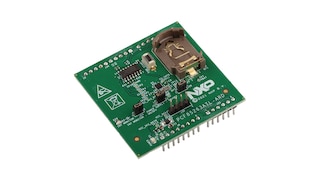

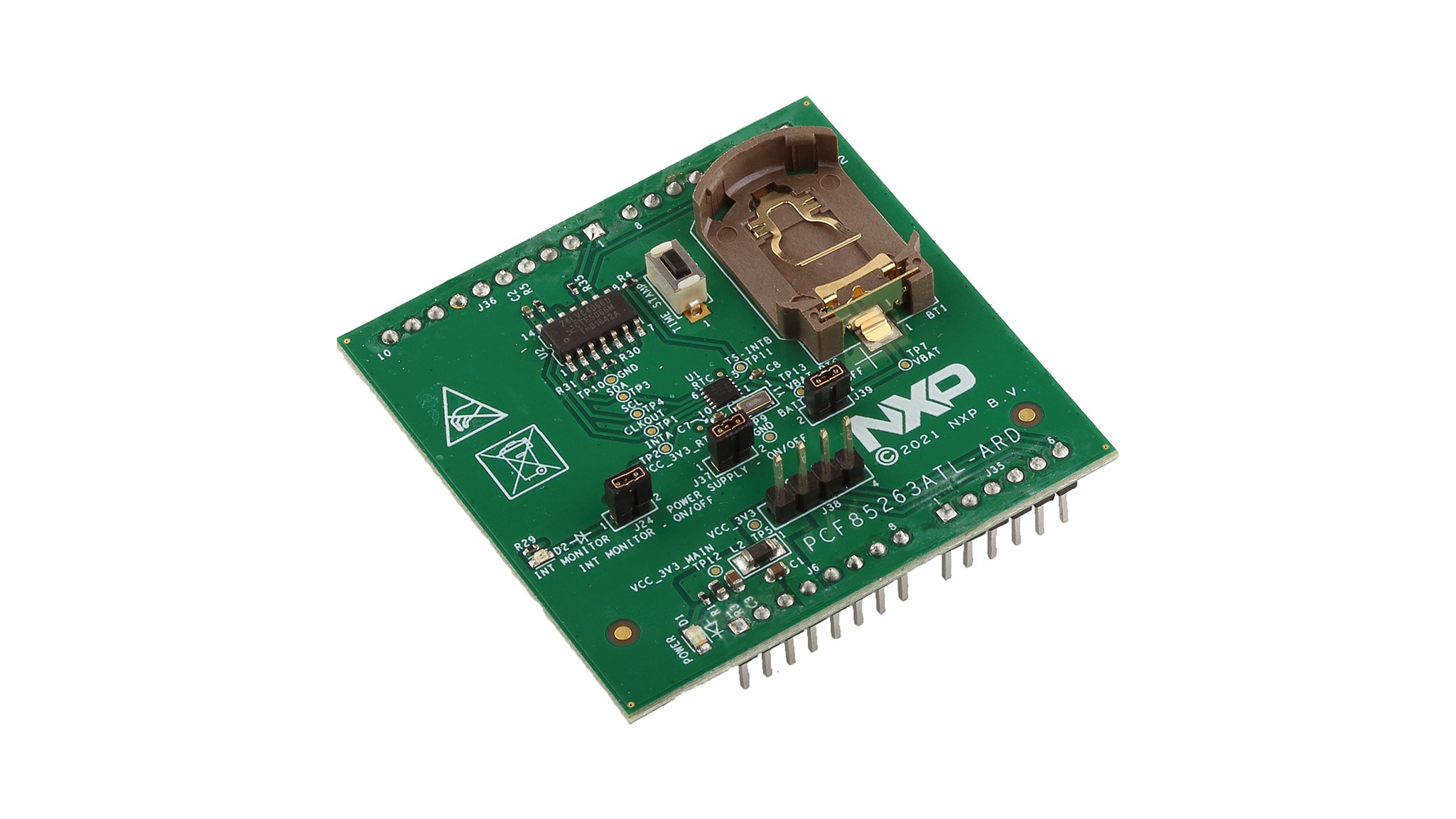

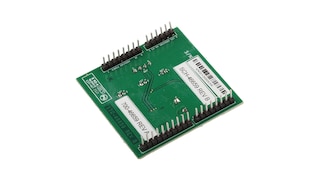

在与Arduino R3引脚布局兼容的板上，PCF85263A Arduino® Shield具有大多数RTC功能。图形界面允许用户轻松探索RTC的不同功能。此外，嵌入式驱动程序和演示应用可以作为快速入门的参考代码。

支持的器件

模拟及混合信号

实时时钟

  • PCF85263A: 微型实时时钟/日历，提供闹钟功能、电池切换、时间戳输入和I²C总线

特性

电源

  • 电源电压：0.9 V至5.5 V
  • 低电流 (0.28 µA @ VDD 3.3 V和25° C)

接口

  • 基于32.768 kHz石英晶体的日历支持 (年、月、日、周、时、分和秒)。
  • 报警功能
  • 倒数计时器
  • 振荡器停止检测功能
  • 分钟和半分钟中断
  • 中断输出
  • 面向外设的可编程时钟输出 (测试点)：
    • 32.768 kHz
    • 16.384 kHz
    • 8.192 kHz
    • 4.096 kHz
    • 2.048 kHz
    • 1.024 kHz
    • 1 Hz

封装

  • DFN2626 - 热塑性增强塑料，超薄小规格封装，无引脚；10个端子；尺寸：2.6 x 2.6 x 0.5 mm

购买选项

PCF85263ATL-ARD-Image

点击展开

  • PCF85263ATL-ARD
    正常供应

  • PCF85263ATL-ARD Arduino® Shield - Tiny Real-Time Clock.

  • PCF85263A Arduino Shield

    套件包含：

    • 完成组装和测试的评估板，放在防静电袋中
    • 快速入门指南
  • $22.22 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 21
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
