i.MX 8M Nano UltraLite应用处理器评估套件

8MNANOD3L-EVK 正常供应

滚动图片以放大

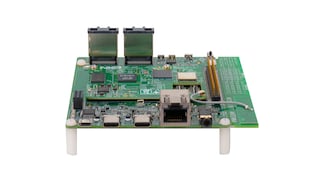

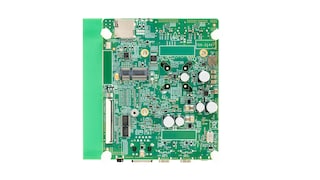

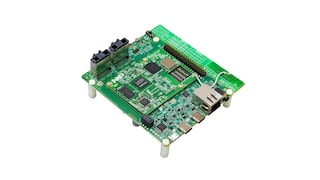

i.MX 8M Nano UltraLite EVK提供了一个平台，可快速评估搭载了1个、2个或4个Arm® Cortex®-A53内核和1个Cortex-M7内核的i.MX 8M Nano UltraLite应用处理器。它成本低、性能高、内存选择灵活，拥有高速接口以及优化的音频功能。i.MX 8M Nano UltraLite EVK附带了基板和CPU板(计算模块)。它们出厂时便进行了预连接，并作为单个EVK系统交付。

产品详情

支持的器件

处理器和微控制器

i.MX 8应用处理器

  • i.MX8MNANO: i.MX 8M Nano系列 - Arm® Cortex®-A53、Cortex-M7

电源管理

PMIC

  • PCA9450: i.MX 8M Mini/Nano/Plus的电源管理IC(PMIC)

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • 88W8987: 2.4/5GHz双频1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2解决方案

特性

处理器

  • i.MX 8M Nano UltraLite应用处理器
  • 4个Arm Cortex-A53 @ 1.4 GHz
  • 512 KB L2缓存
  • 1个Arm Cortex-M7 @ 750 MHz

存储器

  • DDR3L x16 w/1 GB
  • eMMC 5.0/5.1 w/32 GB
  • SD/MMC连接器
  • QSPI，32 MB

摄像头接头

  • MIPI-CSI摄像头mini-SAS接头

无线

  • NXP 88W8987 Wi-Fi/Bluetooth®模块：
    • Wi-Fi® 5 (802.11ac) 1x1 DB (2.5/5 GHz)
    • 蓝牙5.0
  • 板载芯片天线
  • 外部天线接头

音频

  • 音频DAC 24位192kHz立体声
  • HP插孔3.5毫米音频接头
  • 用于音频接口的板扩展接头

连接

  • 10/100/1000以太网
  • USB 3.0 C型接头

调试

  • JTAG连接器
  • 通过USB端口的UART

工具和操作系统支持

  • Linux
  • FreeRTOS

购买选项

8MNANOD3L-EVK-Image

点击展开

  • 8MNANOD3L-EVK
    正常供应

  • Evaluation Kit for the i.MX 8M Nano UltraLite Applications Processor.

  • i.MX 8M Nano UltraLite EVK板

    电源：

    • USB C型线缆
    • USB Micro-B线缆
    • USB C型转A型适配器
    • Linux BSP闪存在eMMC中
    • 快速入门指南

  • $458.85 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 5
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
MINISASTOCSI-Image

点击展开

  • $74.75 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 11
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
