i.MX RT1020跨界MCU是EdgeVerse™ 边缘计算平台的一部分，并扩展了i.MX RT系列跨界MCU，通过低成本LQFP封装提供高性能功能集，进一步为客户简化板设计与布局。i.MX RT1020 MCU基于Arm^® Cortex^®-M7内核，运行频率500 MHz。

产品详情

框图

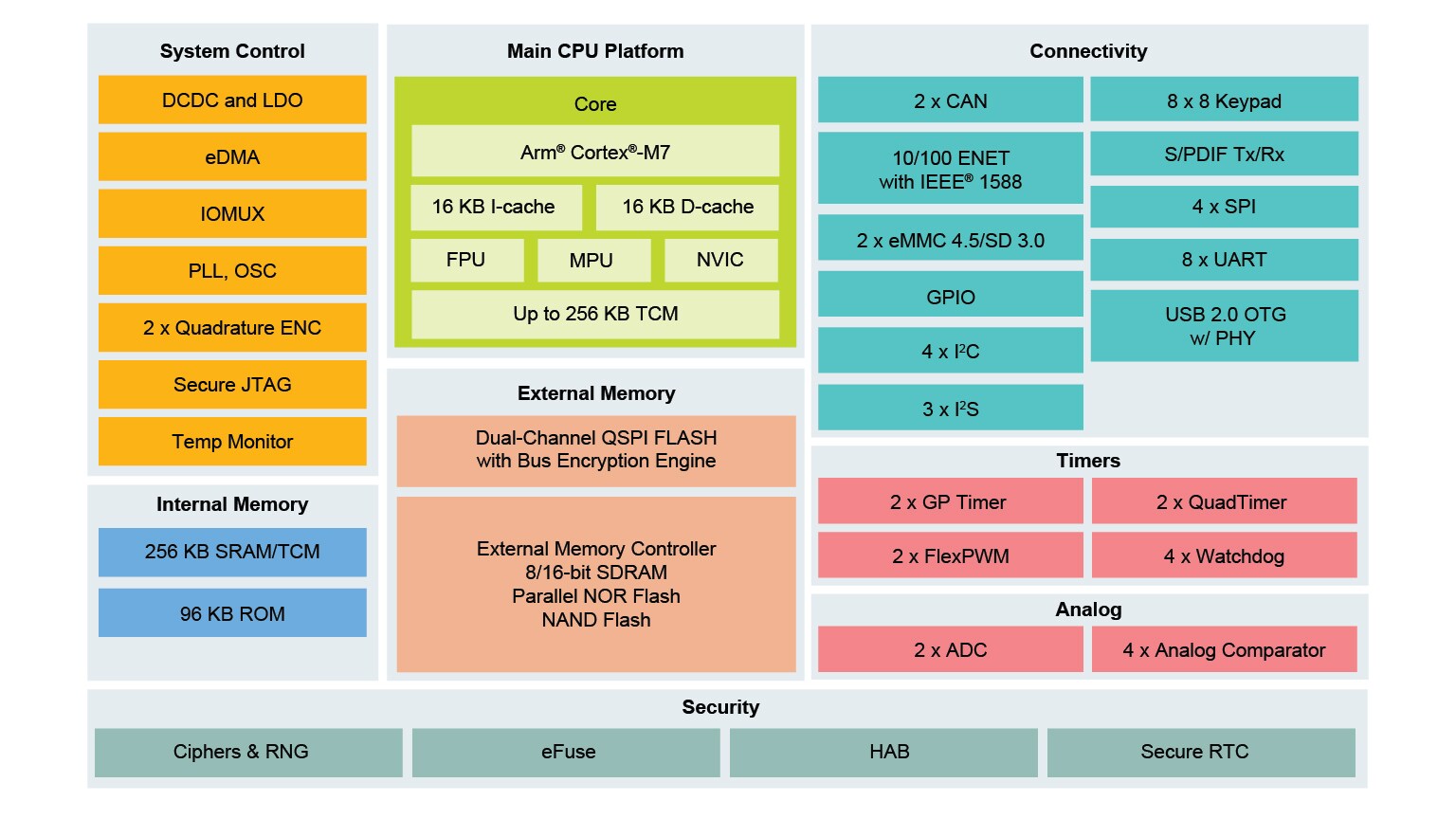

i.MX RT1020 crossover MCU based on Arm^® Cortex^®-M7

i.MX RT1020 crossover MCU based on Cortex-M7

获取框图PDF

特征

高性能Arm Cortex-M7内核
2517 CoreMark/1070 DMIPS @ 500 MHz
实时低延迟响应，低至20 ns
高达256 kB紧耦合存储器(TCM)
通过集成DC-DC转换器实现行业最低的动态功耗
低功耗运行模式下运行频率为24MHz
丰富的外部存储接口选项
- NAND、eMMC、QuadSPI NOR Flash和Parallel NOR Flash
无线连接接口：
- Wi-Fi^®、蓝牙、低功耗蓝牙、ZigBee^®和Thread^™
面向低成本PCU设计的144LQFP和100LQFP封装

i.MX RT系列 - 兼具应用处理器/MCU的优点

i.MX RT系列 - 兼具应用处理器/MCU的优点

直到最近，嵌入式处理根据设计需求划分为泾渭分明的两大阵营。要求性价比和灵活可用性的设计，需要依靠微控制器(MCU)。对于性能的需求超出MCU的设计，需要使用应用处理器。

只要一个小芯片，就能让您的电机控制设计整体变得更智能

只要一个小芯片，就能让您的电机控制设计整体变得更智能

恩智浦长期专注于面向电机控制的嵌入式解决方案 - 历史可一直追溯至我们的摩托罗拉产品线。在过去，电机控制应用通常依赖微控制器(MCU)提供的性价比和灵活的可用性。
