Low-Cost Microcontrollers (MCUs) based on Arm<sup>®</sup> Cortex<sup>®</sup>-M0+ Cores

The LPC81x MCU family provides an optimal entry point into the low-cost LPC800 series. This family balances a range of versatile timing, connectivity, and analog peripherals while delivering it in a low pin count easy to use package. This family provides three select peripherals to ease the transition into the 32-bit space. The switch matrix provides designers the flexibility to map pins accordingly to simplify component routing on a PCB. Another ability of this family comes through the use of the SCTimer, which can be configured to generate a variety of timing or PWM waveforms without the intervention from the CPU. To simplify serial communication requirements, the pattern match engine can be configured to generate interrupts from user configurable Boolean operations on it is 8 pins.

The LPC800 series shares critical pinouts through the range of subfamilies and packages and customers can easily swap or scale packages and subfamilies as their needs change. The LPC83x family builds on the functionality of the LPC81x by increasing its flash size and adding a 12-bit ADC with sample rates of up to 1.2 Msps.

This device is fully supported by NXP’s MCUXpresso Software and Tools, a comprehensive and cohesive set of free software development tools for Kinetis, LPC and i.MX RT microcontrollers. MCUXpresso SDK also includes project files for Keil MDK and IAR EWARM.

数据手册

应用笔记

产品详情

框图

LPC81x and LPC83x MCU

获取框图PDF

Features

Sensor gateways
Communications interface for wireless protocols such as NFC, BTLE, Zigbee or WiFi
Human machine interface (HMI) tasks such as touch, gesture, swipe
Battery powered devices
Space constrained designs
Simple protocol bridging
Replacement of 8/16-bit applications
Supported by MCUXpresso SDK, IDE and Config Tools

设计资源

设计文件

4 设计文件

^模型
IBIS models for LPC81x

ZIP版本 1Jun 13, 2017 16:19:00359.5 KBIBIS_LPC81x

下载
^模型
BSDL for LPC81x

ZIP版本 1Jun 13, 2017 11:57:009.5 KBBSDL_LPC81X

下载
^模型
LPC81x BSDL file for design

ZIP版本 4Jun 13, 2013 00:00:009.5 KBLPC81x-BSDL

下载
^{符号和尺寸}
LPC81x ORCAD and Allegro symbols

ZIP版本 0Jun 3, 2016 00:00:0062.9 KBLPC800-ORCAD-SYM
请登录

下载

硬件

1-5 / 10 硬件

^{评估/开发板与系统}

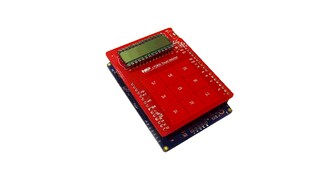

LPC82x触摸解决方案亮点

OM13081
^{评估/开发板与系统}
面向LPC82x系列MCU的LPCXpresso824-MAX电路板亮点

OM13071
^{评估/开发板与系统}
面向LPC81x系列MCU的LPCXpresso812-MAX电路板亮点

OM13055
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{评估/开发板与系统}

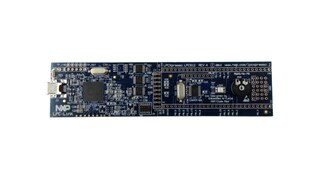

LPC812-LPCXpresso板亮点
