无人机、漫游车、移动机器人及汽车的以太网媒体转换器

RDDRONE-T1ADAPT

滚动图片以放大

产品详情

框图

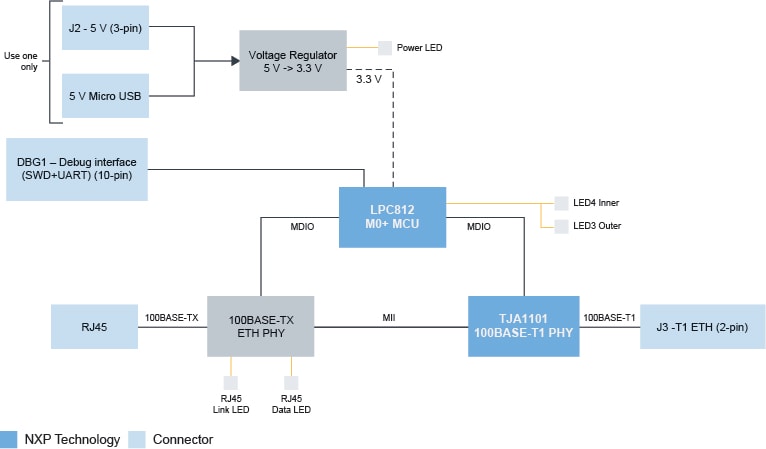

RDDRONE-T1ADAPT Block Diagram

支持的器件

接口

汽车以太网PHY

处理器和微控制器

LPC800 Arm Cortex-M0+

特征

Microcontroller (MCU)

  • LPC812: Cortex®-M0+ Core low-cost MCU​

Transceivers

  • TJA1101B: Automotive IEEE 100BASE-T1 compliant, 100Mbit/s transmit and receive capability up to at least 15m of unshielded twisted pair (UTP) cable

T1ADAPT Features

  • Plug and play operation
  • Translation between 100BASE-T1 and 100BASE-TX Ethernet
  • DroneCode JST-GH connector or Pin header
  • LED status indicators
  • Supports simple connector schemes
  • Smaller size by not requiring RJ45 magnetics
  • Lightweight single pair wiring saves cost and weight

Interfaces

  • Fast Ethernet RJ45, Two wire Ethernet 100BASE-T1, “DCD-LZ” SWD UART

Power

  • 5V, Either via micro USB or JST-GH Power connector​

Software

  • In this software solution for RDDRONE-T1ADAPT, the LPC812 to configures the two back to back PHYs over MDIO and drives status LEDs for the T1 PHY and manages network initiator/receiver mode switching. *Source files available on request​

购买选项

  • RDDRONE-T1ADAPT

  • Ethernet Media Converter for Drones, Rovers, Mobile Robotics and Automotive.

  • CNY495.59
  • 数量为 1
    • 供货情况: 缺货
从恩智浦处购买从分销商处购买
