评估套件 - MMPF0200，12通道电源管理

KITPF0200EPEVBE
试生产

滚动图片以放大

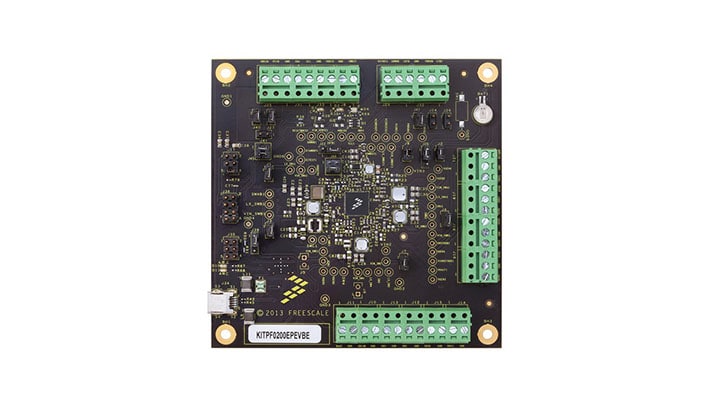

KITPF0200EPEVBE评估板支持完整评估面向i.MX系列应用处理器的MMPF0200 PMIC。它支持通过接线端子连接器访问所有输出电压轨以及控制和信号引脚，提供更加便捷的开箱即用评估体验。用于输入电源的单一接线端子连接器，支持用户通过外部直流电源为电路板供电，以便充分评估器件性能。

KITPF0200EPEVBE附带未编程的MMPF0200 PMIC版本，按照默认上电顺序上电。但它为您提供了集成的控制/熔丝编程接口，支持客户对OTP/TBB (一次性编程/买前试用)存储器进行编程，并选择此存储器作为上电配置的默认来源。同样，该编程接口支持通过I²C通信线路全面控制MMPF0200。

产品详情

支持的器件

电源管理

PMIC

特征

存储器

  • 1个DDR存储器终端参考电压

数据连接

  • 用于连接未来评估/调试工具的板载连接器
  • 集成的USB到I²C编程接口，可实现全面控制/配置

电源管理

  • 输入电压工作范围为3.1到4.5 V
  • 1个5.0 V升压稳压器
  • 支持通过可拆卸式接线端子访问输出电压
  • 3至4个独立降压转换器
  • 6个通用LDO稳压器
  • 1个VSRTC电源

尺寸

  • 外形紧凑(4 x 4英寸2)

用户组件

  • 开/关按钮支持

工具和操作系统支持

  • 通过J36引脚编程的全功能编程器，用于外部器件控制/编程
  • 板载OTP编程电源和控制
  • 支持通过各种跳线接头和电阻灵活配置硬件
  • “买前试用”(TBB)模式的纽扣电池支持
  • 通过I²C寄存器映射提供板载PMIC控制
