面向汽车应用的多通道（5通道）PMIC：3个LVBUCK和2个LDO，符合ASIL B/D安全等级

PF5103 试生产
  • 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

滚动图片以放大

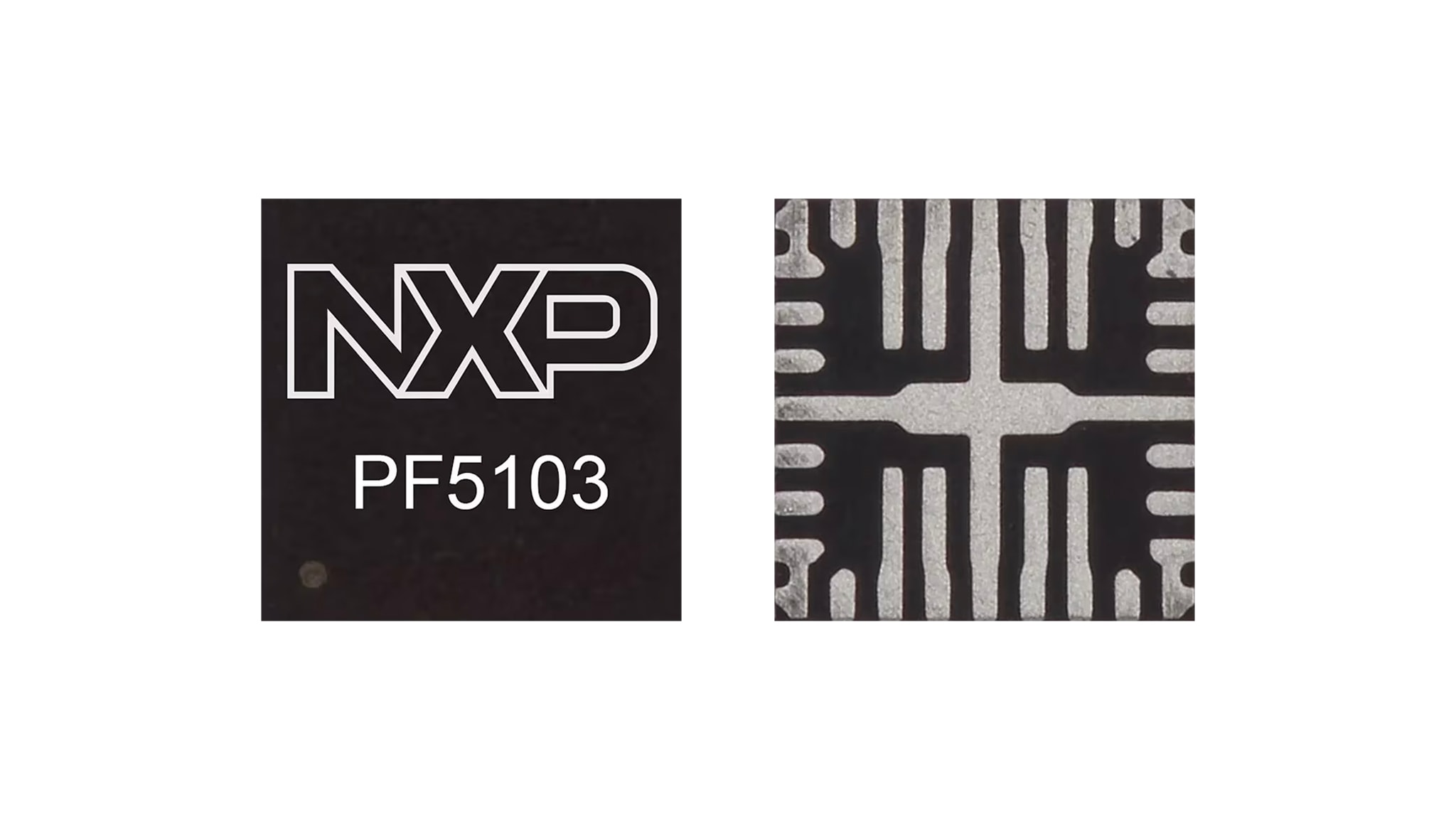

PF5103是多通道PMIC器件，适用于汽车安全应用和工业应用。PF5103是可配置的，适合与其他器件配套使用，可满足各种系统级电源需求。

内置电压监测电路确保符合ISO26262标准，功能安全达到ASIL B/D级。PF5103可作为标准的非安全器件，适用于不需要符合ISO 26262标准的应用。

PF5103适用于需要多电源的应用，包括信息娱乐系统、ADAS、视觉和雷达，可以与恩智浦PMIC和SBC（如FS8x系列）等结合使用。

此器件适用于基于S32处理器的应用 。

框图

面向汽车应用的多通道（5通道）PMIC

PF5103 Block Diagram
获取框图PDF

特性

主要特性

  • 3个LVBUCK转换器，高达3.5A
  • 两个LDO，分别高达200mA和500mA
  • 28引脚4.5mmx4.5mm FC-QFN封装

系统功能

  • OTP（一次性编程）存储器，可用于灵活的器件配置
  • 高速I²C接口（3.4MHz）
  • PGOOD监测电路
  • 外部时钟同步
  • 扩频频谱
  • 多PMIC同步总线

符合ASIL D安全等级的监测电路

  • 符合ASIL D安全等级的独立电路
  • 带可编程故障保护的电压监测
  • 看门狗（简单窗口和问答窗口）
  • I²C CRC和写保护机制
  • 模拟内置自测(ABIST)
  • 逻辑内置自测(LBIST)

可编程性

  • 电源、排序和特定功能可由一次性可编程(OTP)存储器进行编程
  • 在开发阶段，可以使用评估板对定制的OTP部件进行编程
  • 可以提供定制OTP进行生产。请联系恩智浦销售渠道（恩智浦或代理商）
  • 可以使用GUI工具创建定制OTP
