TWR-POS-K81: Kinetis K81 MCU POS塔式系统模块

概述

Kinetis<sup>&#174;</sup> K81 MCU Point-of-Sale Tower<sup>&#174;</sup> System Module

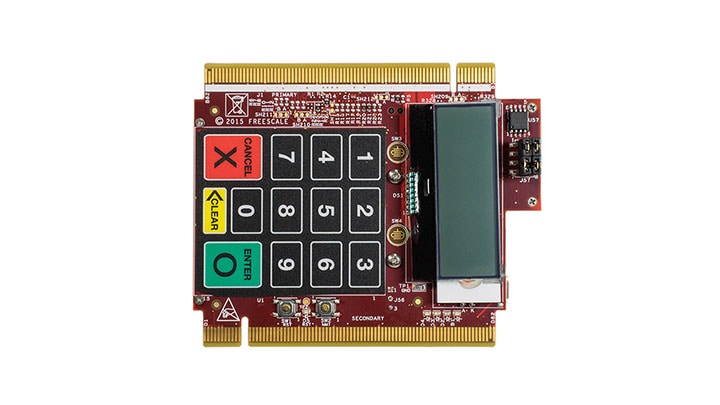

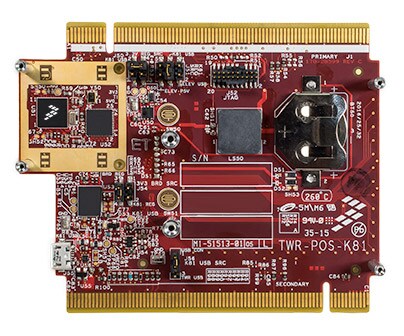

K81 MCU Point-of-Sale Tower System Module
Kinetis<sup>&#174;</sup> K81 MCU Point-of-Sale Tower<sup>&#174;</sup> System Module

Kinetis K81 MCU Point-of-Sale Tower System Module

K81 MCU Point-of-Sale Tower System Module

K81 MCU Point-of-Sale Tower System Module

MCUXpresso Software and Tools Overview

MCUXpresso Software and Tools Overview

Specifications

技术和功能规格

微控制器 MK81FN256VDC15 MCU:
  • 150 MHz Arm® Cortex®-M4 core, 256 KB Flash, 256 KB SRAM, 121 XFBGA, with tamper detection and crypto acceleration
存储器
  • 512 Mbit (64MB) twin-quad onboard QuadSPI memory @ 3.3V
  • 256 Kbit (32KB) SPI EEPROM存储器
数据连接
  • 独立全速USB主机和设备功能
  • 压电式蜂鸣器
电源管理
 面向实时时钟(RTC)模块的独立电池供电电源
调试 Cortex调试 + ETM接头(20引脚调试接头)
传感器 Cirque安全传感芯片和电容式触摸PIN板
显示器 玻璃上芯片2线路 x 16字符段式LCD
支持 兼容塔式系统的处理器电路板
  • 4 user-controlled status LEDs
  • One mechanical push button
  • One mechanical push button for nonmaskable interrupt (NMI) or pin interrupt
  • 篡改接口，拥有所有8个篡改信号的访问

支持的器件

Processors and Microcontrollers

K8x Secure
  • K81_150 : Kinetis K81-150 MHz硬件加密协处理器，反篡改和QuadSPI微控制器(MCU)，基于Arm® Cortex®-M4内核
