产品详情

支持的器件

处理器和微控制器

i.MX RT跨界MCU

i.MX-RT1060: i.MX RT1060跨界MCU搭载Arm^® Cortex^®-M7内核

传感器

运动传感器

FXOS8700CQ: 数字运动传感器 – 3D加速度传感器(±2g/±4g/±8g) + 3D磁力计

接口

USB PD-PHY和CC逻辑

PTN5110: USB PD TCPC PHY IC

Features

Processor

MIMXRT1062DVL6A processor

Memory

256 Mb SDRAM memory
512 Mb Hyper Flash
64 Mb QSPI Flash
TF socket for SD card

Display and Audio

Parallel LCD connector
Camera connector
Audio codec
4-pole audio headphone jack
External speaker connection
Microphone
S/PDIF connector

Connectivity

Micro USB host and OTG connectors
Ethernet (10/100M) connector
CAN transceiver
Arduino^® interface

Software and support application development

MCUXpresso SDK with optional FreeRTOS support
MCUXpresso IDE
MCUXpresso Config Tools
Supported by Zephyr OS

购买选项

点击展开

MIMXRT1060-EVKB
i.MX RT1060 Evaluation Kit.
Kit Contains:
- MIMXRT1060-EVKB board

CNY817.73
数量为 1
- 供货状态: 缺货

Buy from NXP从代理商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

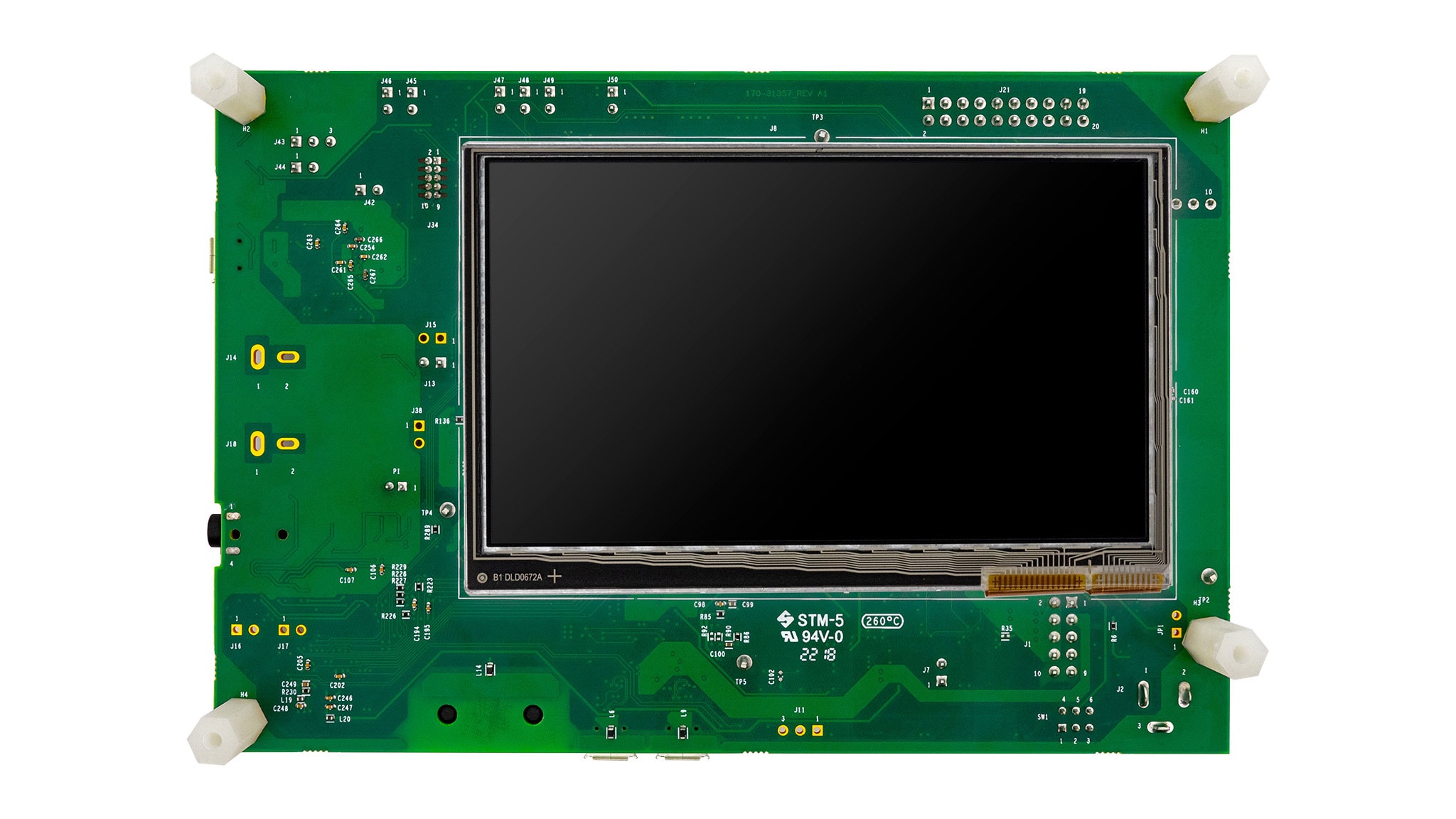

RK043FN66HS-CTG
4.3" LCD Panel.

CNY321.78
数量为 1
- 供货状态: 有货
- 库存: 82
- 运单: 正常情况下 1-2个工作日内发货

Buy from NXP从代理商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

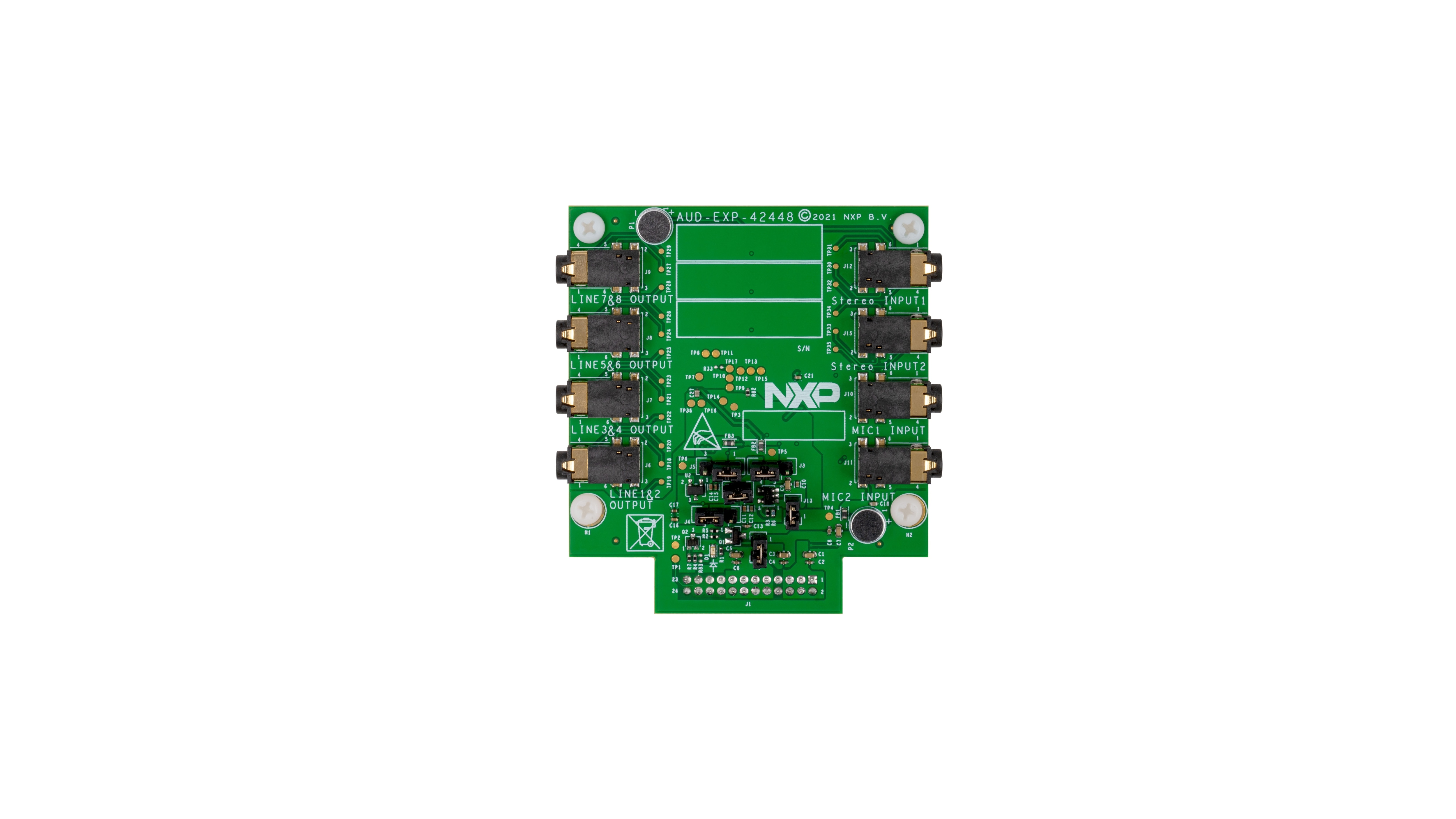

AUD-EXP-42448
Multichannel Audio Codec Card for EVKs.

CNY322.14
数量为 1
- 供货状态: 有货
- 库存: 2
- 运单: 正常情况下 1-2个工作日内发货

Buy from NXP从代理商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

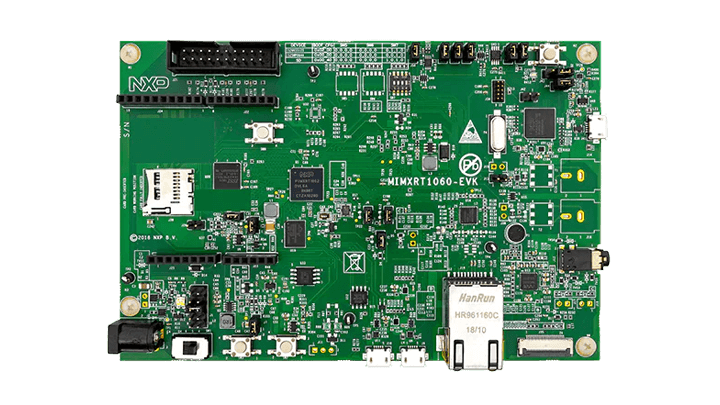

MIMXRT1060-EVK
i.MX RT1060 Evaluation Kit.
Kit Contains:
- MIMXRT1060-EVK board
- USB cable (Micro B)
- Camera sensor module

CNY817.73
数量为 1

从代理商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

文档

快速参考文档类别.

1-5 / 12 文件

^用户指南
Getting Started with NXP Wi-Fi^® Modules Using i.MX RT Platform快速入门

HTMLMay 28, 2020GS-WIFI-MODULES-IMXRT-PLATFORM英语
^用户指南
MIMXRT1060-EVK快速入门指南快速入门

HTMLJul 14, 2020GS-MIMXRT1060-EVK英语
^用户指南
MIMXRT1060-EVKB Board User Manual快速入门

PDF版本 0Jan 11, 2022MIMXRT1060EVKBUM英语
请登录
^用户指南
PMSM Field-Oriented Control on MIMXRT10xx EVK快速入门

PDF版本 0Dec 12, 20182.8 MBPMSMFOCRT10xxUG英语
请登录
^用户指南
Getting Started with NXP Wi-Fi^® modules using i.MX RT platform快速入门

HTML版本 1Jul 22, 2020null kbGS-WIFI-MODULES-IMXRT-PLATFORM-LINK英语
^应用笔记
基于RT1060EVKB 和CS42448 Audio Card 的FLAC7.1 环绕声实现与音频质量分析

PDF版本 0Jun 10, 20212.6 MBAN13291中文, 英语
^应用笔记
如何更新i.MXRT10xx 板载调试器的固件

PDF版本 0Apr 9, 20211.1 MBAN13206中文, 英语
^应用笔记
PMSM Field-Oriented Control on MIMXRT10xx EVK

PDF版本 0Feb 5, 20212.6 MBAN12214中文, 英语
^{应用笔记软件}
Application note software for AN12214

ZIP版本 0Dec 12, 201810.8 MBAN12214SW英语
请登录
^手册
i.MX RT系列跨界MCU

PDF版本 0Jul 28, 202126.7 MBIMXRTPORTBR中文, 英语, 日本語
^{快速参考指南}
Quick Start Guide – MIMXRT1060-EVKB

PDF版本 0Nov 17, 2021MIMXRT1060-EVKB-QSG英语
请登录
^{快速参考指南}
Quick Start Guide – MIMXRT1060-EVK

PDF版本 0Sep 11, 2018497.6 KBIMXRT1060QSG英语

展开

设计资源

设计文件

4 设计文件

^模型
BDSL file for i.MXRT1060

BSDL版本 1Mar 23, 2020 11:40:0033.9 KBRT1060-BSDL

下载
^模型
IBIS Model file for i.MXRT1060

IBS版本 1Mar 23, 2020 12:29:0020.5 MBRT1060_BGA12X12

下载
^{印刷电路板与原理图}
MIMXRT1060_EVK Design files

ZIP版本 A3Aug 26, 2020 09:27:009.8 MBMIMXRT1060-EVK-DESIGNFILE-A3
请登录

下载
^{印刷电路板与原理图}
MIMXRT1060_EVKB Design files

ZIP版本 B1Nov 17, 2021 17:21:0015.1 MBMIMXRT1060-EVKB-DESIGNFILES
请登录

下载
