8位S08RC、S08RD、S08RE和S08RG MCU

S08R 停产

S08R系列具有增强型S08内核，提供更低功耗、更多外设和更高性能，使应用能够从恩智浦68HC05和68HC08架构轻松升级。该系列器件由S08RC、S08RD、S08RE和S08RG产品构成。

其他特性根据成员不同而有所区别，其中包括1个用于红外遥控通信的载波调制定时器、1个串行通信接口(SCI)、串行外设接口(SPI)、1个模拟比较器和两个可编程定时器通道。

产品详情

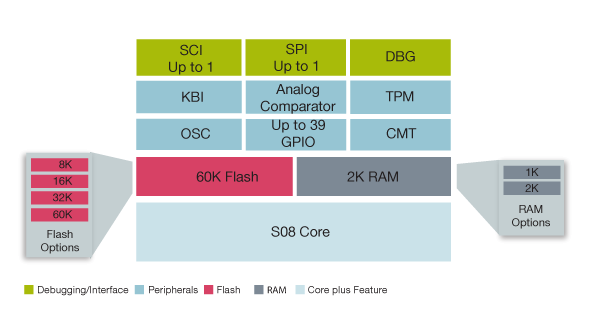

框图

Freescale S08R Microcontroller Block Diagram

Freescale S08R Microcontroller Block Diagram
获取框图PDF

特征

8位HCS08 CPU内核

  • 低功耗技术
    • 多种电源管理模式，其中包括100 nA的关断模式
    • 可选择使用内部定时器从停止2或停止3模式自动唤醒，通常只需要300 nA的额外电流
    • 1.8V运行
  • 在需要时可提供高性能
    • 8 MHz总线频率时，可在1.8V的低压下实现125 µs最小指令周期
  • 优化过的C语言架构，带乘法和除法指令

片上调试接口

  • 单线后台调试模块(BDM)
  • 片上跟踪缓冲器，带有9个灵活的触发模式和多个硬件断点
  • 非侵入式仿真

集成第三代闪存

  • 应用中可重编程
    • 自定时，快速编程
    • 快速闪存页面擦除: 20 µs (512B)
  • 突发模式下，可以在20 μs内设置8个位
  • 最低10K次写入/擦除操作，一般为100K次
  • 数据可以保存最少15年，一般为100年
  • 内部产生编程/擦除电压
  • 闪存操作精度：512B闪存擦除/2B闪存编程
  • 灵活的块保护和安全性

载波调制定时器

  • 包含一个载波发生器、调制器和发送器，生成红外脉冲

带2个可编程通道的定时器

  • 每个通道可设置用于
    • 捕捉输入、比较输出或缓冲脉宽调制 (PWM)
    • PWM可以边沿或中心对齐

高达2个串行通信接口

  • 1个异步串行通信接口(SCI)
    • 灵活的基于13位模块的波特率发生器
    • 双缓冲的接收和发送

模拟比较器

  • 完全的轨到轨电源
  • 上升沿、下降沿或比较器输出的上升沿或下降沿上中断可选择
  • 可选择将未知输入与一个固定的内部带隙参考电压或外部用户提供的参考电压进行比较

系统保护

  • 额定电压为1.8V时，低电压检测/复位可选择
  • 低电池电量报警
  • 计算机正常运行(COP)看门狗定时器

多达39个输入/输出(I/O)线路

  • 可设置上拉电阻
  • 高电流驱动器
  • 8个键盘中断
