i.MX RT600音频评估套件

MIMXRT685-AUD-EVK 正常供应

滚动图片以放大

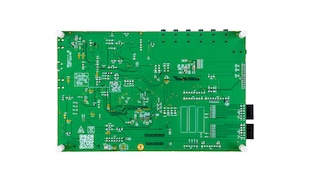

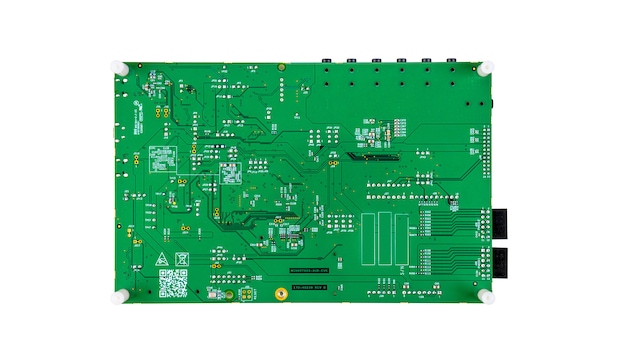

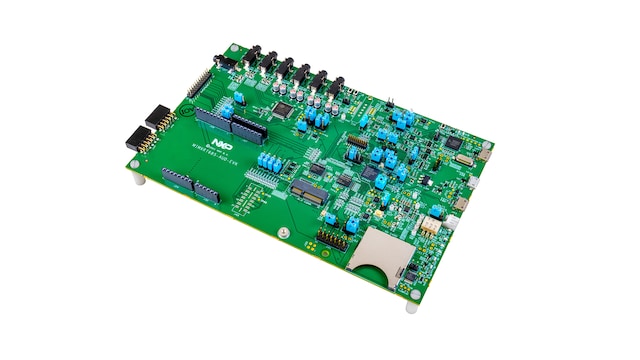

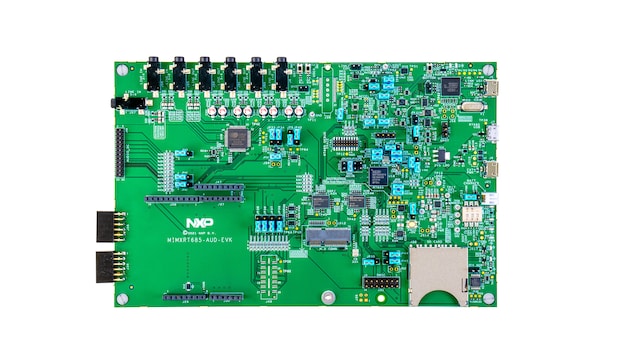

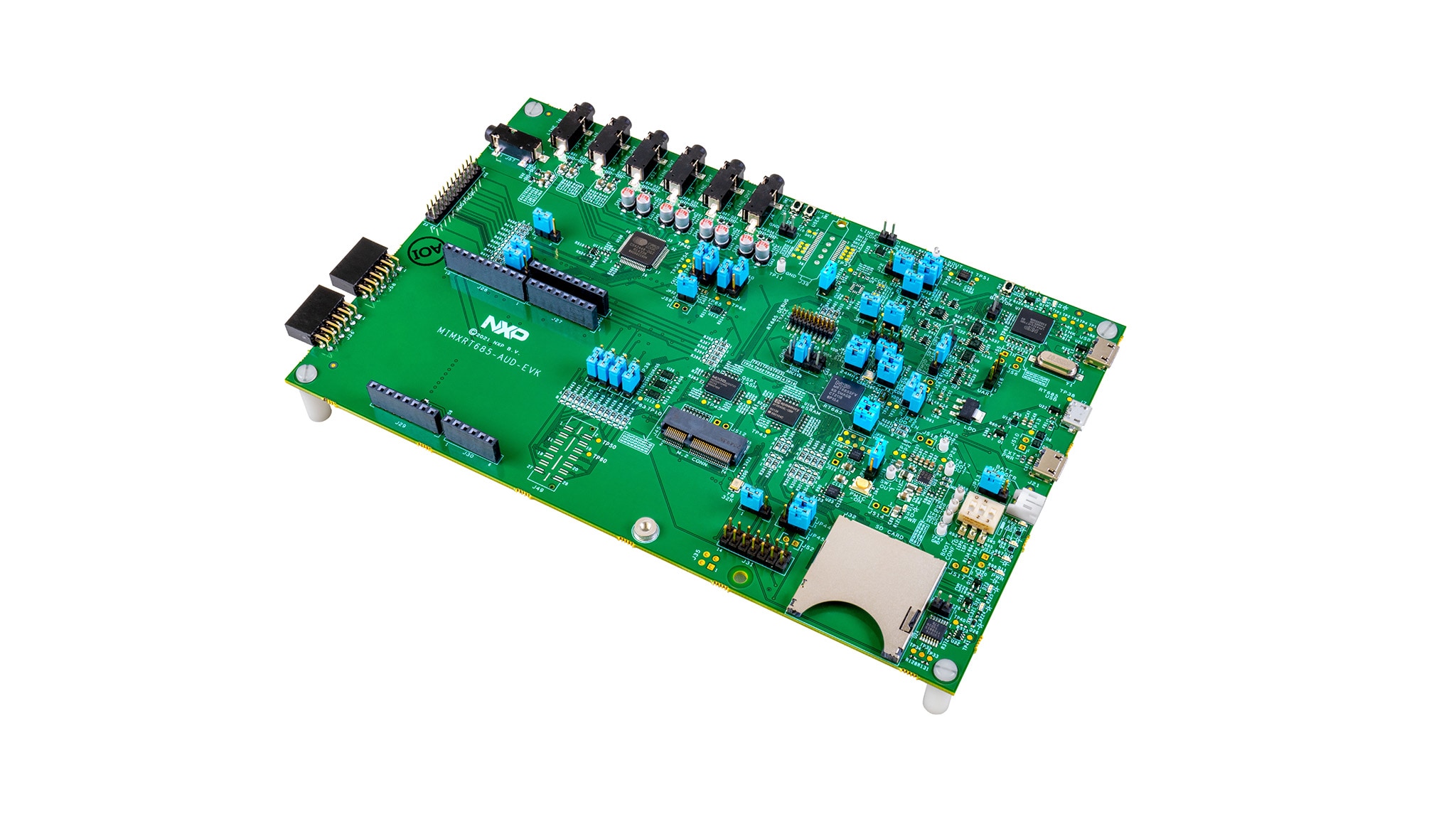

IMXRT600-AUD-EVK评估板提供了一个强大的、可扩展的平台，用于使用MCUXpresso软件和工具套件进行i.MX RT600系列跨界MCU的评估和原型设计。Arduino UNO、M.2、PMod(R)和显示器连接器支持灵活的扩展选项，用于制作边缘连接和独立组网(SA)语音、音频和机器学习(ML)应用的原型。该板具有高速USB硬件调试器，可轻松升级固件，支持CMSIS-DSP或SEGGER J-link LITE的特殊版本。

产品详情

支持的器件

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT600: i.MX RT600跨界MCU，配备Arm®Cortex®-M33和DSP内核

特性

音频

  • Cirrus Logic CS42448 6输入/ 8输出编解码器
  • 音频扩展接口
  • 4 x ¼"立体声输出插孔
  • 2 x ¼"立体声输入插孔

调试功能

  • 板载LPC-Link2型硬件调试器，带有VCOM和CMSIS-DAP或J-link固件选项
  • USB转SPI桥接
  • 20引脚Coresight调试连接器，支持使用外部调试/跟踪调试器
  • Miktor跟踪连接器

连接

  • 高速/全速USB端口，具有主机或器件功能可用的微型A/B接头

传感器

  • 板载SPH0641lM4H数字麦克风
  • InvenSense ICM 42688-P 6轴I3C运动传感器

板载存储器

  • 64MB Macronix MX25U51245GXDI00 Quad SPI闪存
  • 64MB AP存储器APS6408L-OBM-BA PSRAM

扩展接头

  • Arduino®扩展接头
  • PMOD扩展
  • 多达8个数字麦克风的扩展接头
    (支持恩智浦8通道DMIC板)
  • I3C接头

处理器

  • Arm®Cortex®-M33/Cadence®Tensilica®HiFi 4音频DSP
  • 高达300 MHz Arm Cortex-M33内核

用户接口

  • 复位和用户按钮可轻松测试软件功能
  • 用户LED

无线

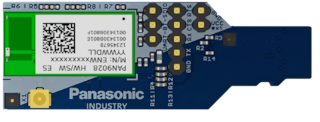

  • 使用SD卡插槽或M.2接口的可选恩智浦Wi-F扩展卡

购买选项

IMXRT600-AUD-EVK-Image

点击展开

  • IMXRT600-AUD-EVK
    正常供应

  • i.MX RT600 Evaluation Kit.

  • 套件包含

    • EVK硬件
    • Micro USB线缆
    • 快速入门指南
  • $171.35 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买

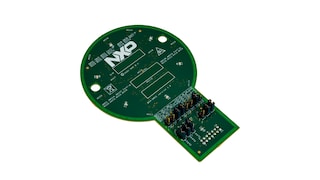

8CH-DMIC-Image

点击展开

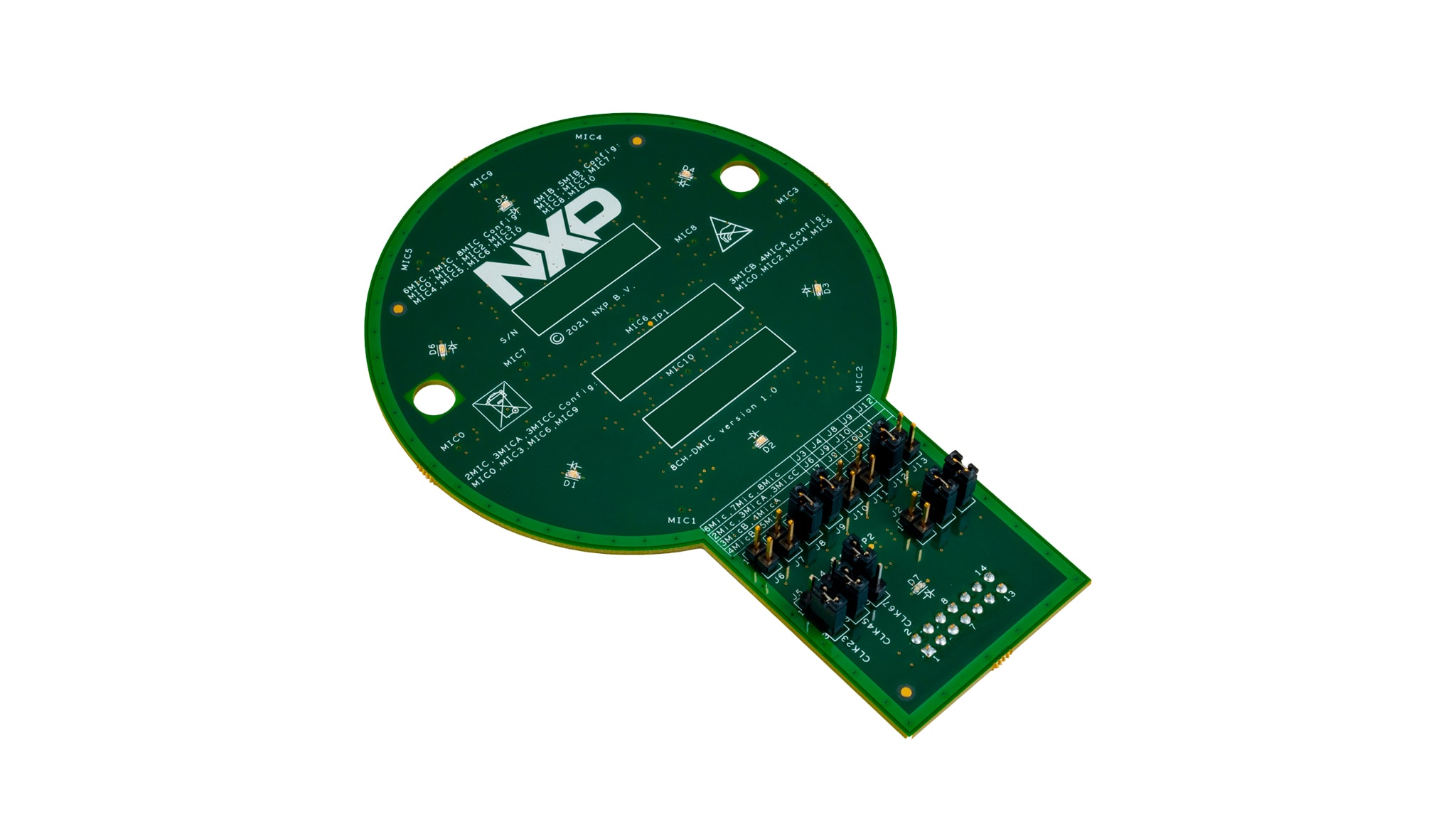

  • 8CH-DMIC
    正常供应

  • Configurable Digital Microphone Board.

  • $90.85 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 23
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
