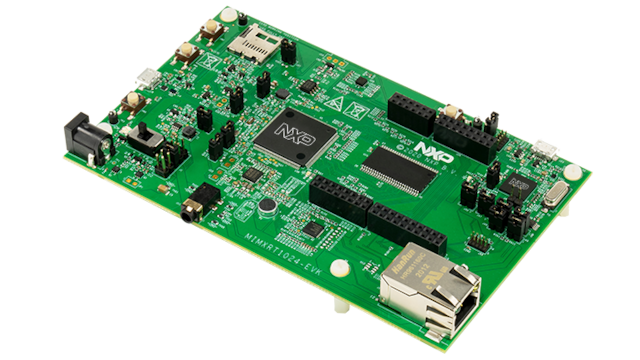

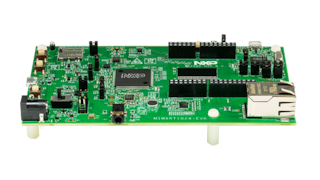

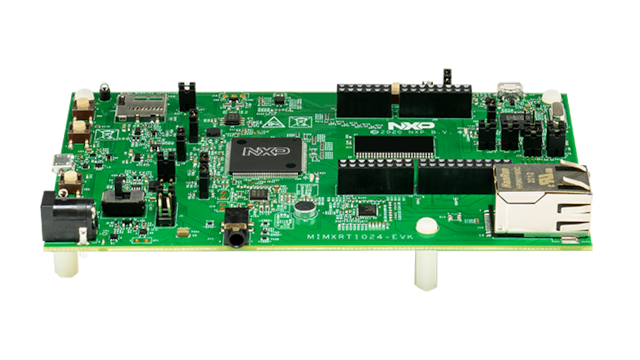

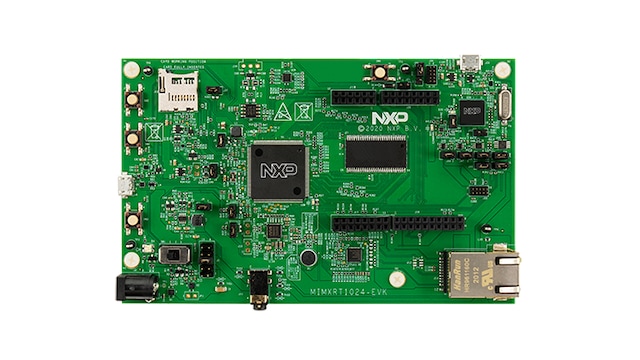

i.MX RT1024评估套件

MIMXRT1024-EVK

滚动图片以放大

i.MX RT评估板提供了一个强大的、可扩展的平台，也支持您使用MCUXpresso软件和工具套件进行评估和原型设计。Arduino UNO站点可使用恩智浦或第三方Shield扩展板进行扩展。该评估板具有高速USB硬件调试器，可轻松升级固件，支持CMSIS-DSP或SEGGER J-link LITE的特殊版本。

产品详情

支持的器件

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT1024: i.MX RT1024: 跨界MCU， 配备Arm®Cortex®-M7

特性

微控制器

  • MIMXRT1024DAG5A运行频率为500MHz

连接

  • Micro USB OTG连接器
  • 以太网(10/100T)接头
  • CAN收发器

调试功能

  • SWD/JTAG连接器
  • 板载DAP-Link调试器

传感器

  • FXOS8700CQ六轴电子罗盘传感器

音频

  • 带4极耳机插孔的音频编解码器
  • 外部扬声器连接
  • 麦克风

板载存储器

  • 256MB SDRAM内存
  • SD卡TF插槽

扩展接头

  • Arduino™接口
  • FRDM电机控制接口

购买选项

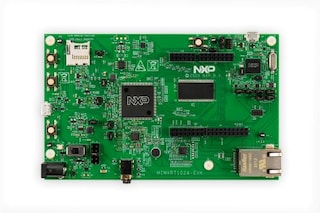

MIMXRT1024-EVK-Image

点击展开

  • MIMXRT1024-EVK
    正常供应

  • i.MX RT1024 Evaluation Kit.

    • EVK硬件
    • MicroUSB线缆
    • 快速入门指南
  • $79.35 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 8
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
