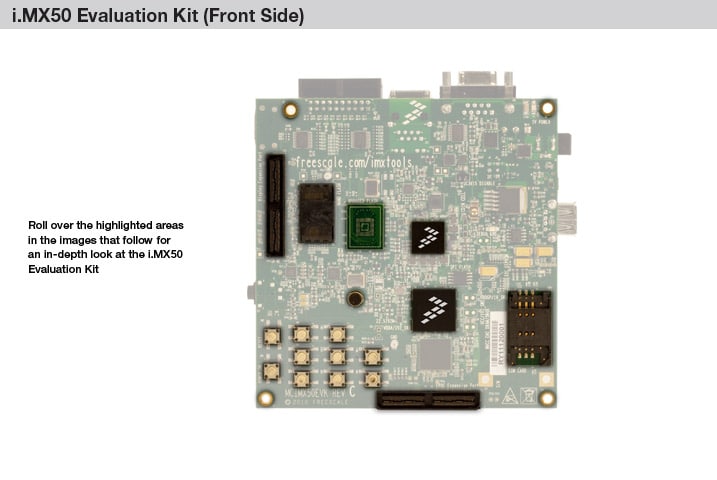

i.MX50评估套件

IMX50EVK 正常供应

滚动图片以放大

The i.MX 50 evaluation kit (EVK) offers developers a cost effective platform to develop, debug, and demonstrate their i.MX50 processor based solution.

  • 该EVK在一个电路板上支持i.MX50系列的所有功能。
  • 开发人员只需不到500美元便可以启动开发，通过HDMI接头直接输出，或购买可选的LCD或EPD板实现最大的显示灵活性。
  • 具有随时可提供的设计文件和板级支持包(BSP)，提供经过优化的驱动电路。
  • Like other i.MX solutions, the i.MX50 EVK is supported by a rich ecosystem and a community of developers at imxcommunity.org .

产品详情

支持的器件

处理器和微控制器

i.MX成熟处理器

  • i.MX502: Multimedia Applications Processors - LCD Controller, Arm® Cortex®-A8 Core
  • i.MX503: 多媒体应用处理器 - OpenVG™ 2D图形加速内核，复杂用户界面，ARM® Cortex®-A8内核
  • i.MX507: Multimedia Applications Processors - Low Power Optimization, Integrated Electronic Paper Display (EPD), Arm® Cortex®-A8 Core

电源管理

PMIC

  • MC34708: 面向i.MX50/53处理器的电源管理

媒体和音频

音频转换器

  • SGTL5000: 超低功耗音频编解码器

特征

处理器子系统

  • i.MX 50 800 MHz Arm® Cortex™-A8 processor
  • NXP® MC34708 PMIC

存储器

  • 512MB LPDDR2存储器
  • 原始NAND闪存插槽(48-TSOP)
  • 支持Managed NAND规格(eMMC/eSD)
  • SPI闪存
  • 两个安全数码卡(SD)/多媒体卡(MMC)插槽

数据连接

  • USB主设备连接器
  • Micro USB OTG连接器
  • 以太网(10/100T)连接器
  • SIM卡插槽
  • Mini PCIe接头

显示器

  • 通过扩展连接器实施的并行WVGA LCD附加卡
  • 通过扩展连接器实施的EPD附加卡
  • HDMI数字视频输出连接器

音频

  • NXP SGTL5000 audio codec
  • 音频HP插孔
  • 外部扬声器连接
  • 麦克风

调试

  • JTAG连接器
  • 单控制台UART

购买选项

MCIMX50EVK-Image

点击展开

  • MCIMX50EVK
    正常供应

  • Evaluation Kit, Hardware, i.MX50, Linux.

  • 数量为 1
从分销商处购买
MX50EBOOKDC1-Image

点击展开

  • MX50EBOOKDC1
    正常供应

  • Accessory Board, Hardware, i.MX50, E-Ink Daughter Card.

  • 数量为 1
从分销商处购买
MCIMX50EVK11-Image

点击展开

  • MCIMX50EVK11
    正常供应

  • Evaluation Kit, Hardware, i.MX50 rev 1.1, Linux.

  • 数量为 1
从分销商处购买
IMXEBOOKDC2-Image

点击展开

  • 数量为 1
从分销商处购买
